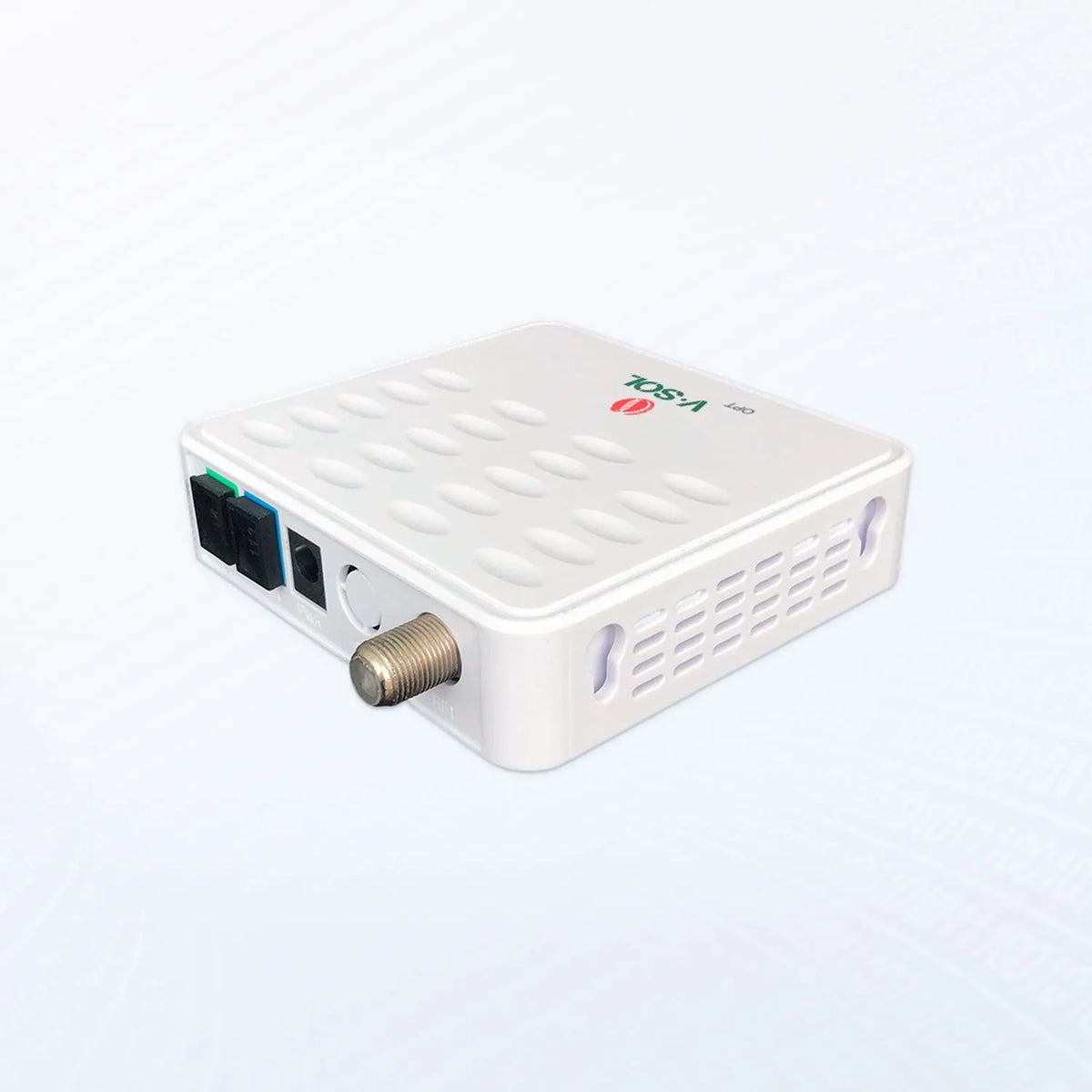

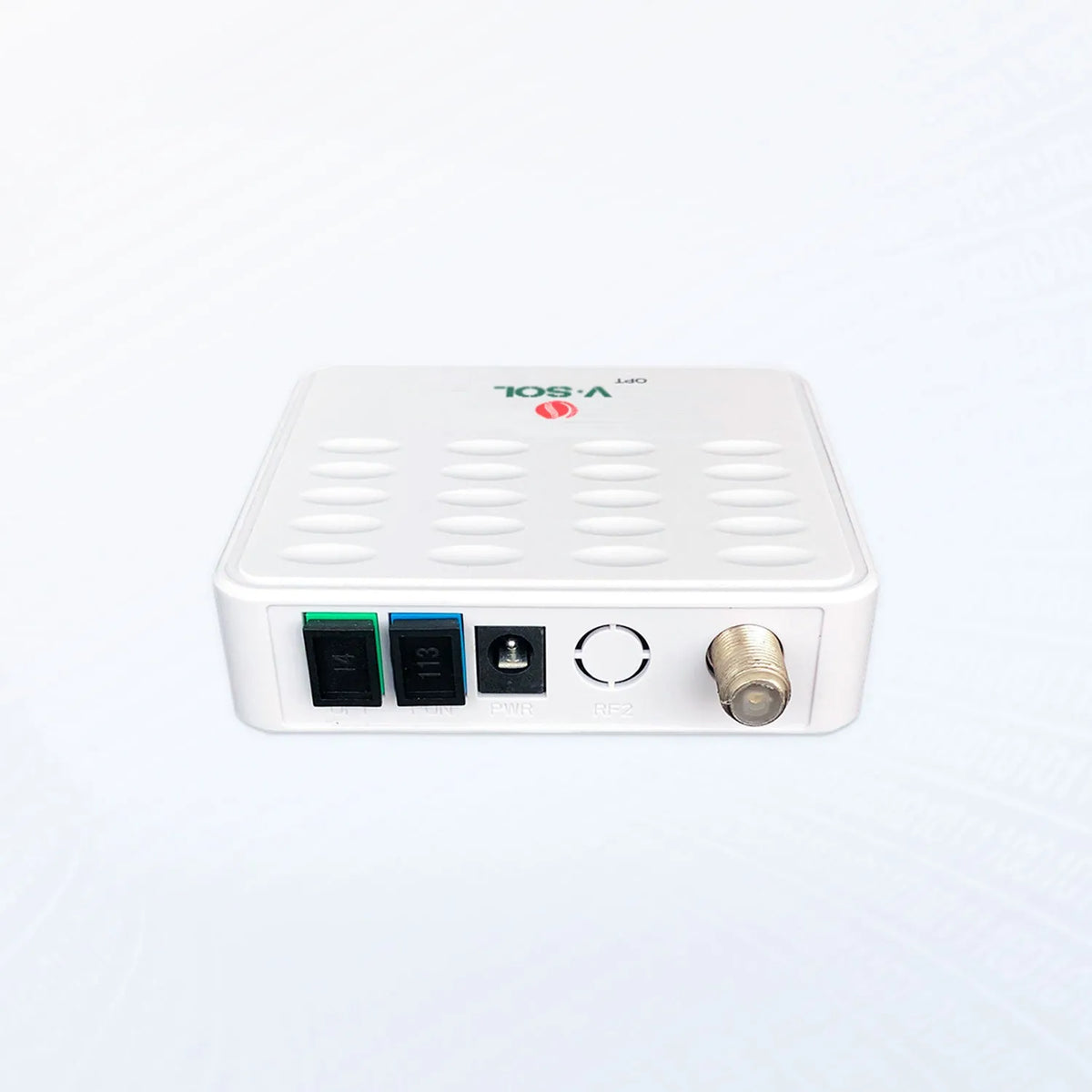

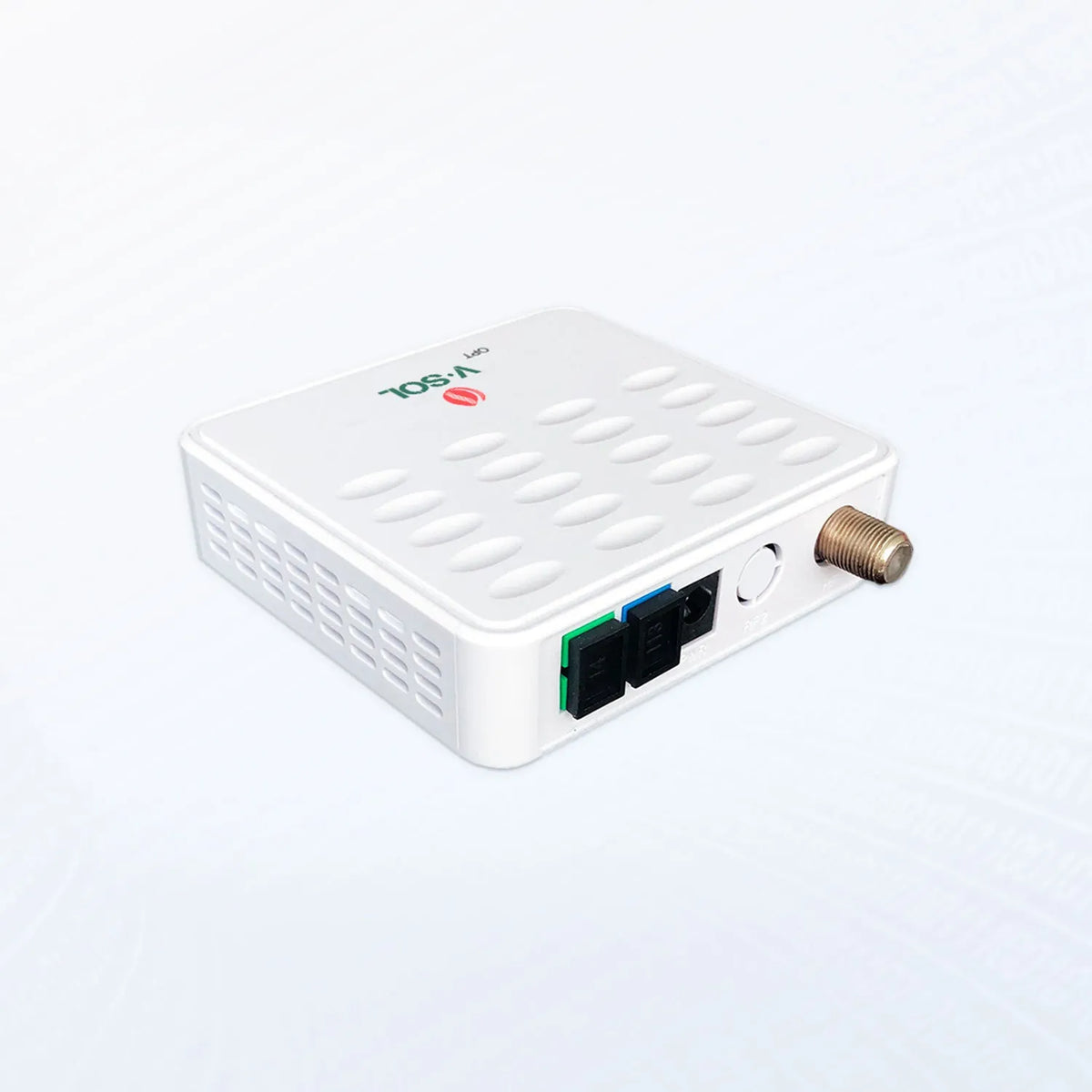

VSOL V8601C-1 Optical Receiver with WDM
Product SKU:
V8601C-1
Safe Delivery
Quick & safe nation wide delivery
Easy Return
Hassle free return within 7 days
100% Original Product
Only genuine products, no compromises.
Couldn't load pickup availability
Specifications
Type
Optical Receiver
Optical Input Wavelengths
1550nm (CATV), 1310/1490nm pass-through (PON)
Optical Input Range
-12 dBm to +2 dBm
Optical Connector
SC/APC
RF Output Level
= 76 dBµV (AGC enabled @ -5 dBm input)
Frequency Range
47 MHz – 1000 MHz
AGC Range
-8 dBm to +2 dBm
CNR
= 50 dB
Flatness
± 1 dB
Output Impedance
75 Ohms
Return Loss
= 14 dB
Power Supply
DC 12V adapter
Power Consumption
= 3W
LED Indicators
Power and signal status
Cooling
Passive cooling (fanless design)
Housing
Compact plastic enclosure
Installation
Indoor, wall-mount or desktop
Operating Temperature
-20°C to +55°C
Storage Temperature
-30°C to +70°C
Humidity
= 95% non-condensing
Applications
FTTH CATV reception, GPON/EPON + TV overlay, digital/analog broadcast distribution
Key Features
High power motor
Higher work efficiency
Product Details
Reviews
Shipping & Returns
User Manual
VSOL V8601C-1 Optical Receiver with WDM
The VSOL V8601C-1 is a high-sensitivity CATV optical receiver with integrated WDM, designed specifically for FTTH (Fiber to the Home) applications. It separates the 1550nm CATV signal while allowing 1490/1310nm PON signals to pass through seamlessly, enabling internet and TV services over a single fiber. Featuring automatic gain control (AGC), low power consumption, and compact wall-mountable design, this device delivers stable and clear analog/digital TV output for triple-play networks.
