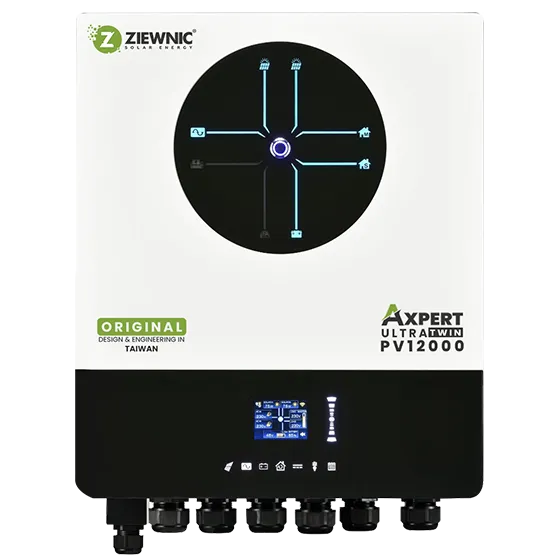

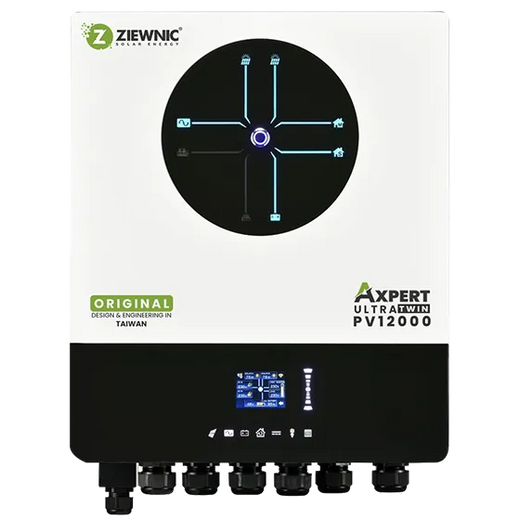

Ziewnic Axpert UltraTwin PV12000 11kW Hybrid Solar Inverter Price In Pakistan
  • Ziewnic Axpert UltraTwin PV12000 11kW Hybrid Solar Inverter Price In Pakistan
Ziewnic Axpert UltraTwin PV12000 11kW Hybrid Solar Inverter
Availability: In Stock

Ziewnic Axpert UltraTwin PV12000 11kW Hybrid Solar Inverter

Product SKU: PV12000-11kW
Rs.310,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Type Hybrid Solar Inverter
Rated Power 11000VA / 11000W
Parallel Capability Up to 6 Units
AC Input Voltage 230VAC
Selectable Voltage Range (PC Mode) 170V – 280VAC
Selectable Voltage Range (Home Appliances) 90V – 280VAC
Frequency Range 50Hz / 60Hz
AC Output Voltage Regulation 230VAC ±5%
Surge Power 22000VA
Peak Efficiency 93%
Transfer Time 10ms (Personal Computer), 20ms (Home Appliances)
Output Waveform Pure Sine Wave
Battery Voltage 48VDC
Floating Charge Voltage 54VDC
Overcharge Protection Voltage 63VDC
Solar Charger Type MPPT
Maximum PV Array Power 12000W (6000W × 2)
MPPT Operating Voltage Range 90V – 450VDC
Maximum PV Open Circuit Voltage 500VDC
Maximum PV Input Current 27A × 2 (Max 40A)
Maximum Solar Charge Current 150A
Maximum AC Charge Current 150A
Maximum Charge Current 150A
Dimensions (D × W × H) 145 × 438 × 553.6 mm
Net Weight 18.4 kg
Communication Interface USB / RS232 / RS485 / WiFi / Dry Contact / BTS
External Current Sensor Port Yes, Built-In Current Transformer Sensor
Humidity 5% – 95% Relative Humidity (Non-Condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
Safety Compliance CE
Battery Compatibility Lithium Batteries Supported
WiFi Monitoring Built-In
Feed-In Grid Function Built-In
LCD Display 2.8" Colored LCD with Slide Operation
Protection Features Overload Protection, Short Circuit Protection, Anti-Dust Protection, AFCI Support, Rapid Shutdown Support, GFCI Support
Dual MPPT Configuration Yes
Dual AC Output Yes
Smart Load Management Supported
Warranty 5 Years

Key Features

11kW Hybrid Solar Inverter
Original Design & Engineering in Taiwan
Dual MPPT Solar Charge Controller
Maximum Charging Current 150A
Supports Parallel Operation Up to 6 Units
Built-in WiFi Monitoring
Pure Sine Wave Output
Output Power Factor 1.0
Built-in Feed-In Grid Function
Operates With & Without Batteries
Dual Independent AC Power Sources
Dual AC Outputs for Smart Load Management
Built-in 2.8" Colored LCD with Slide Operation
Built-in Power Status Lighting Indicators
Lithium Battery Compatible
Built-in BMS Communication Port
Supports USB On-The-Go Function
Supports External Battery Temperature Sensor (BTS)
Optional GFCI, AFCI & Rapid Shutdown Support
Anti-Dust & Humidity Protection
Overload & Short Circuit Protection
Remote Monitoring & OTA Firmware Upgrade
5-Year Warranty
Product Details Reviews Shipping & Returns User Manual

Ziewnic Axpert UltraTwin PV12000 11kW Hybrid Solar Inverter

The Ziewnic Axpert UltraTwin PV12000 11kW Hybrid Solar Inverter is a premium high-capacity energy storage solution designed for residential, commercial, and industrial solar applications. Engineered in Taiwan, this advanced hybrid inverter features Dual MPPT technology, 150A charging capability, and support for parallel operation up to 6 units, making it ideal for large-scale energy systems. With built-in WiFi monitoring, dual AC outputs, lithium battery compatibility, and feed-in grid functionality, the PV12000 delivers reliable, efficient, and intelligent power management. Its pure sine wave output, built-in communication interfaces, and advanced protection features ensure maximum performance, flexibility, and long-term reliability.

Ziewnic Axpert UltraTwin PV12000 11kW Hybrid Solar Inverter Price In Pakistan
Ziewnic Axpert UltraTwin PV12000 11kW Hybrid Solar Inverter
Looking to purchase Ziewnic Axpert UltraTwin PV12000 11kW Hybrid Solar Inverter in bulk?
  • Purchase Item in Bulk Quantity
  • Get At Best Price For Your Business
No reviews yet. Be the first to review this product.

Shipping

We ship across Pakistan. Standard delivery takes 3–7 business days.

Returns

Easy 7-day return policy. Product must be unused and in original packaging.

📄
Download User Manual
Click here to download PDF
