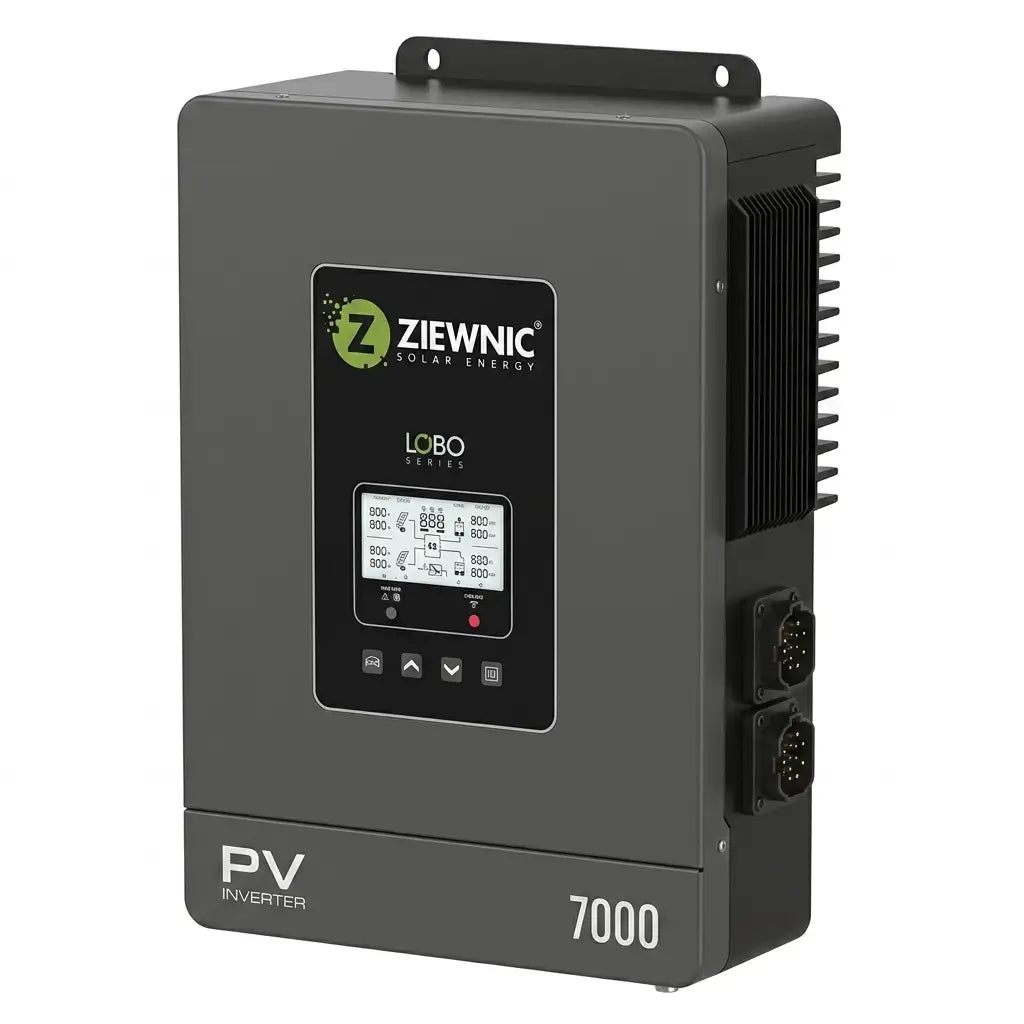

Ziewnic LOBO PV7000 5kW Single Phase Hybrid Solar Inverter
Availability: In Stock

Ziewnic LOBO PV7000 5kW Single Phase Hybrid Solar Inverter

Product SKU: LOBO-PV7000-5kW
Rs.50,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Type Hybrid Solar Inverter
Phase Single Phase
Rated Output Power 7kVA (5kW Class)
Number of MPPT Trackers 2
Maximum PV Input Current 18A + 18A
PV Array Maximum Open Circuit Voltage 500VDC
PV Input Voltage Range 60V – 500VDC
Start-Up Voltage 120VDC
Nominal DC Voltage 360VDC
MPPT Tracker Efficiency >99.5%
AC Output Voltage 230VAC
Input Voltage Range 90V – 280VAC
Input Frequency Range 40Hz – 65Hz
Maximum Input Current 30A
Input Power Factor >0.99
Input THDi <5%
Protection Features Overload Protection, Short Circuit Protection, Over Temperature Protection, Over Current Protection, Anti-Islanding Protection
Dimensions (H × W × D) 315.5 × 225 × 103 mm
Net Weight 3.5 kg
Protection Rating IP40
Communication Port RS-232
Humidity <95% RH (Non-Condensing)
Operating Temperature -10°C to 55°C
Wi-Fi Monitoring Optional
Grid Feeding Supported
Battery Required No

Key Features

5kW Single Phase Solar Inverter
Supports On-Grid & Off-Grid Operation
Dual MPPT Solar Charge Controller
Supports High-Power Solar Panels up to 1000W
Pure Sine Wave Output
Battery Independent Design (No Battery Required)
Grid Feeding Capability
High Efficiency MPPT Technology
MPPT Efficiency Greater Than 99.5%
Wide PV Input Voltage Range (60V–500VDC)
Built-in Feedback Detection Current Sensor
Fast Anti-Islanding Response
Built-in Dust Protection
LCD Display with User-Friendly Interface
Adjustable Parameter Settings
Optional Wi-Fi Monitoring
Compatible with TOPCon, HJT & HiMO 10 Solar Panels
Power Factor 1.0
RS-232 Communication Port
Made in Taiwan
1-Year Warranty
Product Details Reviews Shipping & Returns User Manual

Ziewnic LOBO PV7000 5kW Single Phase Hybrid Solar Inverter

The Ziewnic LOBO PV7000 5kW Solar Inverter is a high-performance single-phase solar inverter designed for residential and commercial solar power systems. Built with advanced MPPT technology, it supports the latest TOPCon, HJT, and HiMO 10 solar panels, including high-power modules up to 1000W. The inverter operates in both On-Grid and Off-Grid modes, features a battery-independent design, and offers intelligent energy management with grid feeding capability. With dual MPPT tracking, high conversion efficiency, built-in dust protection, and optional Wi-Fi monitoring, the LOBO PV7000 delivers reliable and efficient solar power generation for modern energy systems.

Ziewnic LOBO PV7000 5kW Single Phase Hybrid Solar Inverter Price In Pakistan
Ziewnic LOBO PV7000 5kW Single Phase Hybrid Solar Inverter
Looking to purchase Ziewnic LOBO PV7000 5kW Single Phase Hybrid Solar Inverter in bulk?
  • Purchase Item in Bulk Quantity
  • Get At Best Price For Your Business
No reviews yet. Be the first to review this product.

Shipping

We ship across Pakistan. Standard delivery takes 3–7 business days.

Returns

Easy 7-day return policy. Product must be unused and in original packaging.

📄
Download User Manual
Click here to download PDF
