Ziewnic Marvel 5G PV10000 8.5kVA Hybrid Solar Inverter Price In Pakistan
  • Ziewnic Marvel 5G PV10000 8.5kVA Hybrid Solar Inverter Price In Pakistan

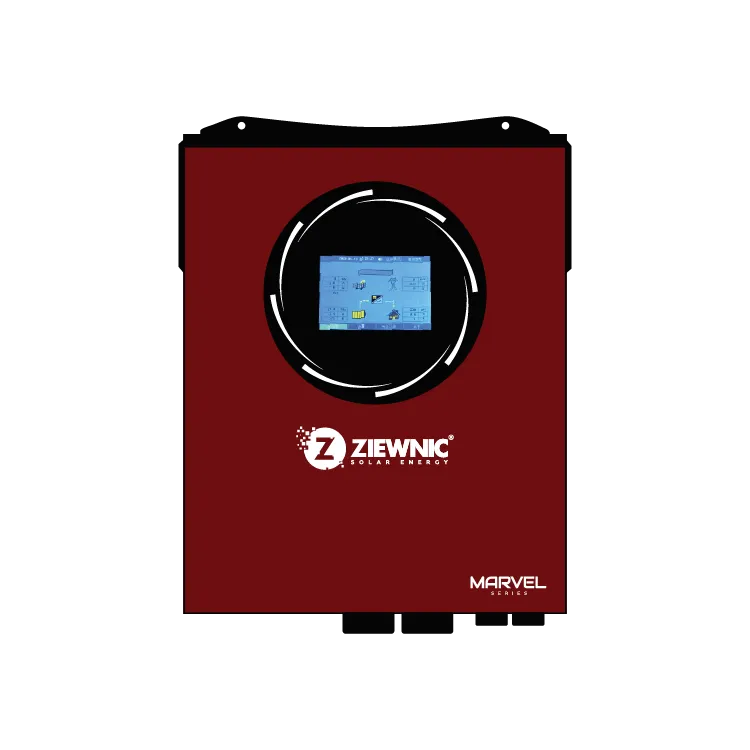

Ziewnic Marvel 5G PV10000 8.5kVA Hybrid Solar Inverter
Availability: In Stock

Ziewnic Marvel 5G PV10000 8.5kVA Hybrid Solar Inverter

Product SKU: PV10000-8-5kVA
Rs.240,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Type Hybrid Solar Inverter
Rated AC Output Power 8500W
Maximum PV Input Power 10000W
Phase Single Phase
Power Factor 1.0
Maximum Conversion Efficiency 98%
Nominal DC Voltage 360VDC
Maximum DC Voltage 450VDC
Start-Up Voltage 120VDC
MPPT Voltage Range 120V – 450VDC
Number of MPPT Trackers 2
Maximum PV Input Current 18A × 2
Solar Input Capacity 5000W × 2
Nominal Output Voltage 220V / 230V / 240VAC
Output Voltage Range 184V – 256VAC or 195V – 253VAC (Selectable)
Nominal Output Current 34.8A
AC Start-Up Voltage 120V – 140VAC / 180VAC
Acceptable Input Voltage Range 90V – 280VAC or 170V – 280VAC
Maximum AC Input Current 63A
Output Waveform Pure Sine Wave
Off-Grid Efficiency (DC to AC) 93%
Hybrid Mode Efficiency (DC to AC) 93%
Battery Type Supported Lithium Ion, LiFePO4 and Other Battery Types
Battery Voltage 48VDC
Maximum Solar Charge Current 120A
Maximum AC Charge Current 120A
Maximum Total Charge Current 120A
Product Dimensions (D × W × H) 530 × 415 × 149 mm
Net Weight 19.4 kg
Gross Weight 21.6 kg
Packing Dimensions 690 × 550 × 242 mm
Parallel Function Yes, Up to 9 Units
Communication Interface RS232, USB, WiFi, Touch LCD
Humidity 5% – 95% Relative Humidity (Non-Condensing)
Protection Features Overload Protection, Short Circuit Protection, Dust & Humidity Protection
WiFi Monitoring Optional
Zero Export Function Built-In
Reverse Grid Feeding Supported

Key Features

8.5kVA Hybrid Solar Inverter
Advanced 5th Generation European Technology
Built-in Dual MPPT Solar Charge Controller
Maximum PV Input Capacity 10,000W
Pure Touch Screen LCD Display
Supports On-Grid, Off-Grid & Hybrid Modes
Pure Sine Wave Output
Compatible with Li-ion & LiFePO4 Batteries
Battery Equalization Function
Works With & Without Battery
Built-in Zero Export Function
100% Reverse Grid Feeding Capability
Optional Wi-Fi Monitoring for Android & iOS
Smart Power Management & Scheduling
Energy Generation & Load History Recording
Overload & Short Circuit Protection
Conformal Coating Against Dust & Humidity
Easy Fan Replacement Design
Peak-Valley Charging Support
Parallel Operation Up to 9 Units
Zero Transfer Time
Power Factor 1.0
European Design & Taiwan Engineering
5-Year Warranty
Product Details Reviews Shipping & Returns User Manual

Ziewnic Marvel 5G PV10000 8.5kVA Hybrid Solar Inverter

The Ziewnic Marvel 5G PV10000 8.5kVA Hybrid Solar Inverter is a premium European-designed energy storage solution built for residential and commercial solar applications. Featuring an advanced 5th Generation Hybrid Inverter platform, it combines 10,000W dual MPPT solar input, touch screen operation, lithium battery compatibility, and intelligent energy management. The inverter supports On-Grid, Off-Grid, and Hybrid modes, allowing users to maximize solar utilization while ensuring uninterrupted power availability. With built-in zero export, reverse grid feeding, parallel operation support, Wi-Fi connectivity, and smart scheduling functions, the PV10000 delivers reliable and efficient performance for modern solar installations.

Ziewnic Marvel 5G PV10000 8.5kVA Hybrid Solar Inverter Price In Pakistan
Ziewnic Marvel 5G PV10000 8.5kVA Hybrid Solar Inverter
Looking to purchase Ziewnic Marvel 5G PV10000 8.5kVA Hybrid Solar Inverter in bulk?
  • Purchase Item in Bulk Quantity
  • Get At Best Price For Your Business
No reviews yet. Be the first to review this product.

Shipping

We ship across Pakistan. Standard delivery takes 3–7 business days.

Returns

Easy 7-day return policy. Product must be unused and in original packaging.

📄
Download User Manual
Click here to download PDF
