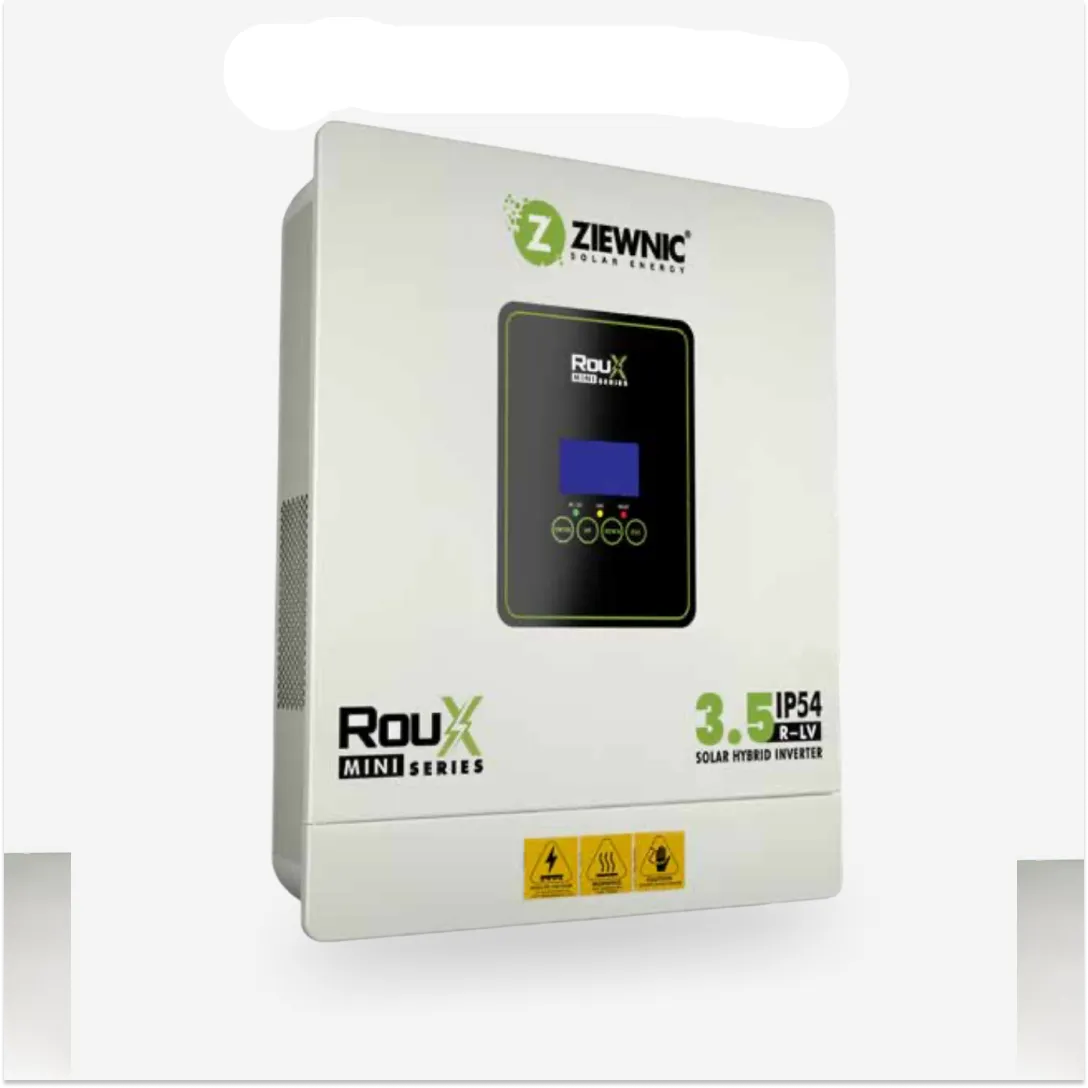

Ziewnic Roux Mini PV5000 3.5kW Hybrid Solar Inverter

Product SKU: PV5000-3-5kW
Rs.100,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

WhatsApp Inquiry

Specifications

Type Hybrid Solar Inverter
Rated Power 3500VA
AC Input Voltage 230VAC
Selectable Voltage Range (Personal Computer) 170V – 280VAC
Selectable Voltage Range (Home Appliances) 90V – 280VAC
Frequency Range 50Hz / 60Hz (Auto Sensing)
AC Output Voltage Regulation 230VAC ±5%
Nominal Output Current 14.54A
Efficiency (PV to Inverter) 97%
Efficiency (Battery to Inverter) 94%
Transfer Time 10ms Typical (Computers), 20ms Typical (Appliances)
Battery Voltage 24VDC
Floating Charge Voltage 27VDC
Overcharge Protection Voltage 33VDC
Maximum AC Charge Current 80A
Maximum PV Array Power 5000W
MPPT Operating Voltage Range 55V – 430VDC
Maximum PV Open Circuit Voltage 430VDC
Solar Charge Controller Type True MPPT
Maximum Charge Current 80A
Maximum PV Input Current 18A
Maximum Efficiency 98%
Communication Interface RS232 / GPRS / Wi-Fi
Humidity Range 5% – 95% Relative Humidity (Non-Condensing)
Operating Temperature 0°C to 55°C
Storage Temperature -15°C to 60°C
Protection Rating IP54
Output Waveform Pure Sine Wave
Power Factor 1.0
Battery Compatibility Lithium Batteries Supported
LCD Display Updated LCD Display
Wi-Fi Monitoring Optional

Key Features

3.5kW Hybrid Solar Inverter
Advanced 6th Generation Inverter Technology
80A True MPPT Solar Charge Controller
100% Pure Sine Wave Output
IP54 Dust & Water Resistant Design
Compatible with All Lithium Battery Types
Works with Battery, Utility Power & Generator
Optional Wi-Fi Monitoring
Upgraded LCD Display
High-Efficiency MOSFET Technology
Built-in Automatic Electronic Breaker
Wide MPPT Voltage Range
Power Factor 1.0
Maximum Efficiency up to 98%
Short Circuit Protection
Overload Protection
Smart & Safe Power Management
Communication Port Support
Engineered in Taiwan
3 Years Replacement Warranty
Product Details Reviews Shipping & Returns User Manual

Ziewnic Roux Mini PV5000 3.5kW Hybrid Solar Inverter

The Ziewnic Roux Series PV5000 3.5kW Hybrid Solar Inverter is a powerful 6th Generation Hybrid Solar Inverter engineered for homes, offices, shops, and small commercial installations. Built with advanced high-efficiency MOSFET technology and an enhanced chopper design, it delivers exceptional stability, efficiency, and reliable power output. The inverter produces a 100% pure sine wave, ensuring safe operation for sensitive electronics and household appliances.

Equipped with an 80A True MPPT solar charge controller, the PV5000 maximizes solar energy harvesting and improves overall system efficiency. It supports operation with batteries, utility power, or generators, offering flexible energy management for areas affected by load shedding and voltage fluctuations.

The inverter features an IP54-rated enclosure for dust and splash resistance, making it ideal for Pakistan’s environmental conditions. With optional Wi-Fi monitoring, an upgraded LCD display, lithium battery compatibility, and intelligent protection systems, the Roux PV5000 delivers dependable and efficient solar power for modern energy needs.
