Standards
|
iec/en 60898-1 / iec/en 60947-2 / ul 1077
|
|
tripping characteristic
|
c
|
|
rated operational voltage
|
acc. to iec 60898-1 230 / 400 v ac / acc. to iec 60898-1 230 v / acc. to iec 60947-2 230 v ac
|
|
operational voltage
|
maximum (incl. tolerance) 253 v ac / maximum (incl. tolerance) 72 v dc / minimum 12 v ac / minimum 12 v dc
|
ABB S201-C 1 Pole MCB Breaker Price in Pakistan is Rs. Inquiry/-.

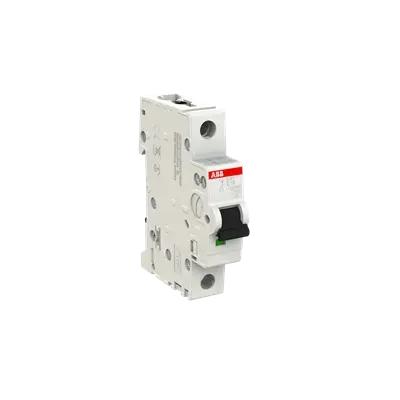

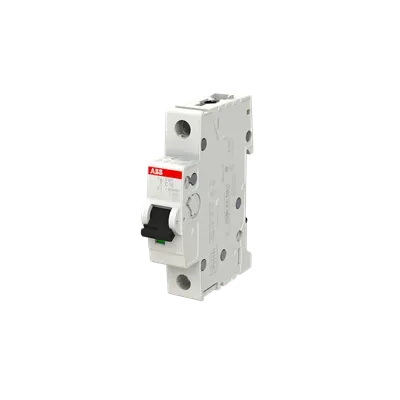

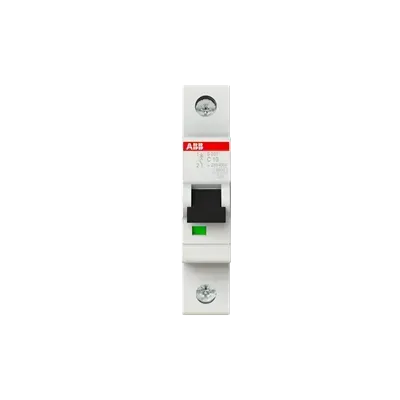

The S201-C10,S201-C16 Miniature Circuit Breaker is a single-pole (1P), C-type MCB with a 10 A, 16A rating, designed to protect electrical circuits from overloads and short circuits. Part of the System pro M compact S200 series, it features a dual tripping mechanism for reliable performance, including delayed thermal tripping for overloads and electromechanical tripping for short circuits. It meets standards IEC/EN 60898-1, IEC/EN 60947-2, and UL1077, making it suitable for residential, commercial, and industrial use. Additionally, it offers space-saving with the option for a bottom-fitting auxiliary contact.
