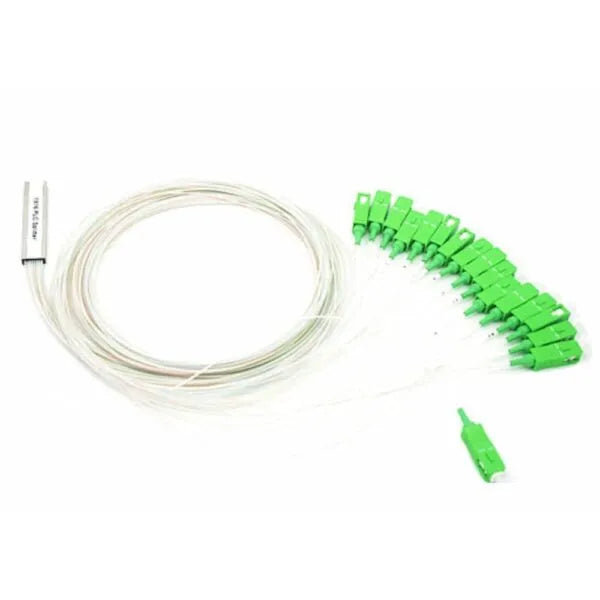

Ai-Tek 1x16 Fiber Splitter Price is Rs.2,100/-. The Ai-Tek Optic Fiber Splirtter PLC 1×16 SC/APC 0.9mm 1Mtr is a premium-quality Planar Lightwave Circuit (PLC) splitter designed for efficient and reliable optical signal distribution. It evenly splits one input fiber into eight output fibers, making it ideal for FTTH, PON, LAN, and CATV networks. Featuring SC/APC connectors, a compact 0.9mm diameter design, and a 1-meter fiber length, this splitter offers low insertion loss and stable performance in high-density installations and limited spaces.
SC/APC connectors ensure low insertion loss and stable connections
PLC technology ensures uniform and reliable signal splitting
Suitable for single-mode fiber optic networks
Compact, durable design for easy installation
Excellent mechanical and environmental stability
Ideal for FTTH, PON, LAN, CATV, and optical signal distribution
Operates across a wide wavelength range (1260–1650 nm)
Low polarization dependent loss for consistent performance
Compliant with international standards (GR-1209, GR-1221, RoHS)
Product Specifications
Type
fiber splitter
model
ai-tek 1x16 plc fiber splitter
splitter type
plc (planar lightwave circuit)
configuration
1 input × 16 outputs
connector type
sc/apc
fiber type
single mode (g.657a1 / g.652d optional)
operating wavelength
1260 nm – 1650 nm
insertion loss
= 13.5 db
return loss
= 55 db
uniformity
= 1.5 db
pdl (polarization dependent loss)
= 0.3 db
directivity
= 55 db
cable diameter
0.9 mm / 2.0 mm / 3.0 mm (as needed)
cable length
standard 1 meter (customizable)
operating temperature
-40°c to +85°c
storage temperature
-40°c to +85°c
standards compliance
telcordia gr-1209, gr-1221, rohs
Product Details
Ai-Tek 1x16 Fiber Splitter Price is Rs.2,100/-. The Ai-Tek Optic Fiber Splirtter PLC 1×16 SC/APC 0.9mm 1Mtr is a premium-quality Planar Lightwave Circuit (PLC) splitter designed for efficient and reliable optical signal distribution. It evenly splits one input fiber into eight output fibers, making it ideal for FTTH, PON, LAN, and CATV networks. Featuring SC/APC connectors, a compact 0.9mm diameter design, and a 1-meter fiber length, this splitter offers low insertion loss and stable performance in high-density installations and limited spaces.
