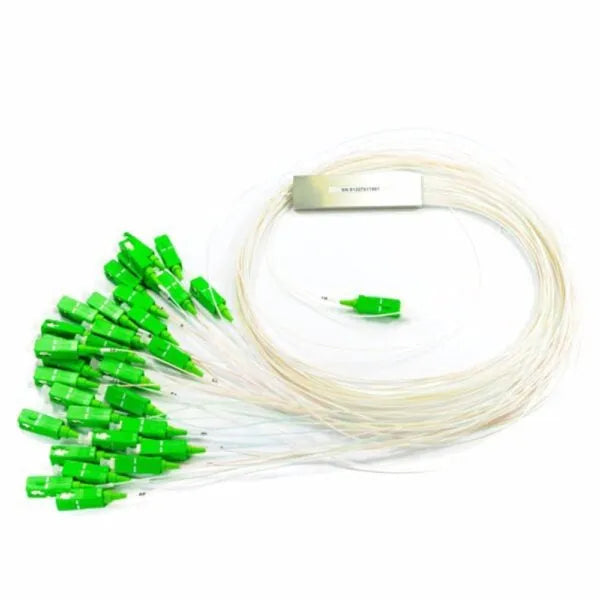

Ai-Tek 1x32 Fiber Splitter Price is Rs.4,560/-. The Ai-Tek Fiber Optic Splirtter PLC 1×32 SC/APC 0.9mm 1Mtr is a premium-quality Planar Lightwave Circuit (PLC) splitter designed for efficient and reliable optical signal distribution. It evenly splits one input fiber into eight output fibers, making it ideal for FTTH, PON, LAN, and CATV networks. Featuring SC/APC connectors, a compact 0.9mm diameter design, and a 1-meter fiber length, this splitter offers low insertion loss and stable performance in high-density installations and limited spaces.
1 input to 32 output PLC (Planar Lightwave Circuit) configuration
SC/APC connectors for low back reflection and secure connectivity
Uniform optical power splitting ensures consistent performance
Low insertion loss and high return loss
Compact and durable design for space-efficient installation
Suitable for FTTH, PON, CATV, LAN, and FTTB applications
Operates across a wide wavelength range (1260–1650 nm)
Excellent environmental and mechanical stability
Supports wide operating temperature range for indoor and outdoor use
Compliant with international standards (GR-1209, GR-1221, RoHS)
Product Specifications
Type
fiber optic splitter
model
ai-tek 1x32 plc fiber splitter
splitter type
plc (planar lightwave circuit)
configuration
1 input × 32 outputs
connector type
sc/apc
fiber type
single mode (g.657a1/g.652d optional)
operating wavelength
1260 nm – 1650 nm
insertion loss
= 17.0 db
return loss
= 55 db
uniformity
= 2.0 db
polarization dependent loss (pdl)
= 0.3 db
directivity
= 55 db
fiber diameter
0.9 mm / 2.0 mm / 3.0 mm (as per requirement)
cable length
1 meter (customizable)
operating temperature
-40°c to +85°c
storage temperature
-40°c to +85°c
compliance
telcordia gr-1209, gr-1221, rohs
Product Details
Ai-Tek 1x32 Fiber Splitter Price is Rs.4,560/-. The Ai-Tek Fiber Optic Splirtter PLC 1×32 SC/APC 0.9mm 1Mtr is a premium-quality Planar Lightwave Circuit (PLC) splitter designed for efficient and reliable optical signal distribution. It evenly splits one input fiber into eight output fibers, making it ideal for FTTH, PON, LAN, and CATV networks. Featuring SC/APC connectors, a compact 0.9mm diameter design, and a 1-meter fiber length, this splitter offers low insertion loss and stable performance in high-density installations and limited spaces.
