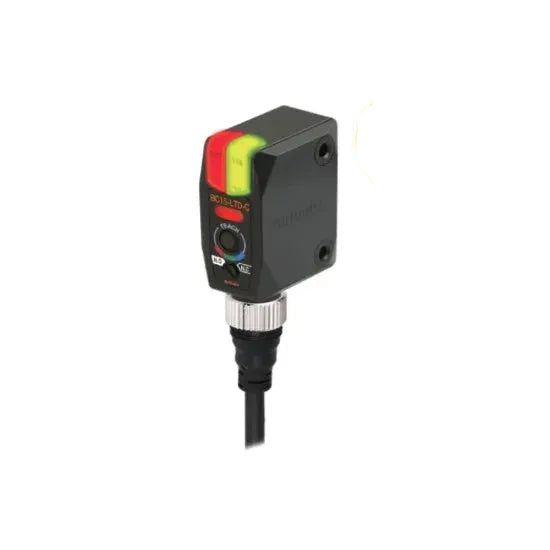

Autonics BC15-LDT-C Color Mark Sensor Timer Price is Rs.122,400/-. The Autonics BC15-LDT-C is a high-precision color mark sensor designed for accurate detection of color marks and contrasts on various surfaces in packaging, labeling, and printing applications. Equipped with a red LED light source and high-speed response time, this sensor delivers excellent detection performance even on high-gloss or reflective materials. It offers a compact design, adjustable sensitivity, and easy setup through teach mode, ensuring reliability and ease of use in high-speed industrial environments.
Compact and lightweight body for flexible mounting
Easy sensitivity adjustment via teach button
Excellent detection of marks on glossy and reflective surfaces
Ideal for packaging, labeling, and printing machines
NPN open collector output for easy integration
Red LED light source for accurate color mark detection
Product Specifications
Type
color mark sensor
sensing method
contrast/color mark detection
control output
max. 100 ma at 30 vdc
current consumption
max. 30 ma
light source
red led (660nm)
operation mode
light on/dark on selectable
output type
npn open collector
power supply
12–24 vdc ±10%
response time
max. 50 µs
sensing distance
10 ±3 mm
Product Details
Autonics BC15-LDT-C Color Mark Sensor Timer Price is Rs.122,400/-. The Autonics BC15-LDT-C is a high-precision color mark sensor designed for accurate detection of color marks and contrasts on various surfaces in packaging, labeling, and printing applications. Equipped with a red LED light source and high-speed response time, this sensor delivers excellent detection performance even on high-gloss or reflective materials. It offers a compact design, adjustable sensitivity, and easy setup through teach mode, ensuring reliability and ease of use in high-speed industrial environments.
