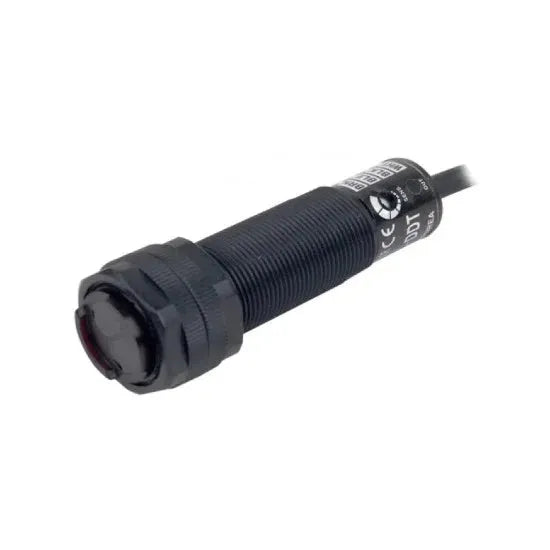

Autonics BR400-DDT-P Photo Electric Sensor Price is Rs.24,120/-. The Autonics BR400-DDT-P is a high-performance diffuse reflective photoelectric sensor designed for long-distance object detection without the need for a reflector or receiver. Offering a sensing range of up to 4 meters, it features a visible red LED light source for easy alignment and precise detection. This model comes with a PNP open collector output and operates in Dark ON mode, making it ideal for integration into a variety of industrial automation systems. Built with an IP66-rated enclosure, it is well-suited for harsh environments such as logistics centers, packaging lines, and material handling systems.
Diffuse reflective sensing with one-sided detection
Fast response time ensures accurate detection
Ideal for use in conveyors, packaging, and automation lines
IP66-rated housing for dust and water resistance
PNP open collector output for versatile system integration
Red LED light source for visible beam and easy setup
Product Specifications
Type
electric sensor
sensing type
diffuse reflective
ambient temperature
-25°c to 65°c
connection type
built-in cable (2 meters)
control output
max. 100 ma at 30 vdc
enclosure rating
ip66
light source
red led
operation mode
dark on
output type
pnp open collector
power supply
12–24 vdc ±10%
protection circuit
reverse polarity, surge, and output short protection
response time
max. 1 ms
sensing distance
4000 mm (4 meters)
Product Details
Autonics BR400-DDT-P Photo Electric Sensor Price is Rs.24,120/-. The Autonics BR400-DDT-P is a high-performance diffuse reflective photoelectric sensor designed for long-distance object detection without the need for a reflector or receiver. Offering a sensing range of up to 4 meters, it features a visible red LED light source for easy alignment and precise detection. This model comes with a PNP open collector output and operates in Dark ON mode, making it ideal for integration into a variety of industrial automation systems. Built with an IP66-rated enclosure, it is well-suited for harsh environments such as logistics centers, packaging lines, and material handling systems.
