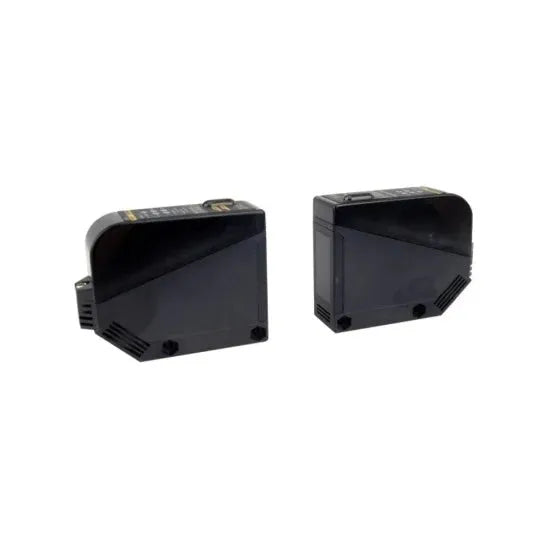

Autonics BX15M-TFR Photo Electric Sensor Price is Rs.31,680/-. The Autonics BX15M-TFR is a high-performance through-beam photoelectric sensor designed for long-distance object detection with excellent reliability and stability. With a sensing distance of up to 15 meters, it is ideal for large-scale industrial automation systems requiring precise and consistent detection. The sensor features a compact rectangular housing, easy mounting, and Red LED light for simple beam alignment. Its durable body, IP65-rated protection, and built-in protection circuits ensure dependable operation in demanding environments.
Through-beam type sensor with long 15 m sensing distance
Built-in reverse polarity and surge protection
Compact rectangular body for space-saving mounting
Easy alignment and installation
Fast and stable response performance
IP65-rated for protection against dust and water
NPN open collector output
Red LED light source for visible beam targeting
Product Specifications
Type
electric sensor
sensing type
through-beam
sensing distance
15 meters
light source
red led
operation mode
light on / dark on (selectable)
output type
npn open collector
power supply
12–24 vdc ±10%
response time
max. 1 ms
control output
max. 100 ma
connection method
built-in cable (standard length 2m)
housing material
polycarbonate
protection circuit
reverse polarity, surge, and output short-circuit protection
ambient temperature
-25°c to +65°c
enclosure rating
ip65
Product Details
Autonics BX15M-TFR Photo Electric Sensor Price is Rs.31,680/-. The Autonics BX15M-TFR is a high-performance through-beam photoelectric sensor designed for long-distance object detection with excellent reliability and stability. With a sensing distance of up to 15 meters, it is ideal for large-scale industrial automation systems requiring precise and consistent detection. The sensor features a compact rectangular housing, easy mounting, and Red LED light for simple beam alignment. Its durable body, IP65-rated protection, and built-in protection circuits ensure dependable operation in demanding environments.
