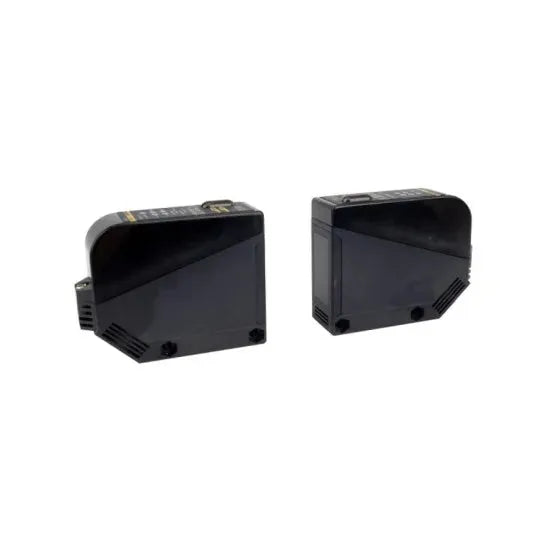

Autonics BX700-DFR Photo Electric Sensor Price is Rs.29,520/-. The Autonics BX700-DFR is a high-precision diffuse reflective photoelectric sensor designed for short to medium-range object detection without the need for a reflector. With a sensing distance of up to 700mm, it offers reliable and accurate detection in various industrial applications. The sensor features a red LED light source for quick alignment, selectable Light ON/Dark ON modes, and NPN open collector output. Its compact and rugged IP65-rated housing ensures stable operation even in harsh environments.
Built-in protection against reverse polarity and surge
Compact design for easy installation
Fast response time and high detection accuracy
IP65-rated dustproof and waterproof housing
NPN open collector output type
Red LED light source for visible beam alignment
Selectable Light ON / Dark ON operation
Product Specifications
Type
electric sensor
sensing method
diffuse reflective
sensing distance
700mm
light source
red led
output type
npn open collector
operation mode
light on / dark on (selectable)
control output
max. 100 ma
response time
max. 1 ms
power supply
12–24 vdc ±10%
connection type
built-in cable (2 meters)
indicators
operation led, stability led
protection circuits
reverse polarity, surge, output short-circuit
enclosure rating
ip65
Product Details
Autonics BX700-DFR Photo Electric Sensor Price is Rs.29,520/-. The Autonics BX700-DFR is a high-precision diffuse reflective photoelectric sensor designed for short to medium-range object detection without the need for a reflector. With a sensing distance of up to 700mm, it offers reliable and accurate detection in various industrial applications. The sensor features a red LED light source for quick alignment, selectable Light ON/Dark ON modes, and NPN open collector output. Its compact and rugged IP65-rated housing ensures stable operation even in harsh environments.
