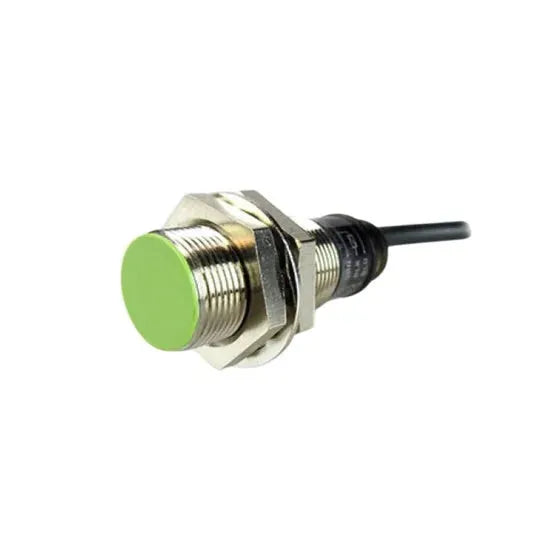

The Autonics PR18-5AC is a robust and efficient cylindrical inductive proximity sensor designed for reliable metal object detection in various industrial automation applications. Featuring a 5mm sensing distance and a 2-wire AC output, it supports a wide range of AC voltages, making it ideal for both 110V and 220V systems. With a rugged M18 nickel-plated brass housing and IP66 protection rating, the PR18-5AC provides dependable operation even in demanding environments such as manufacturing lines, elevators, and machinery.
AC 2-wire type sensor compatible with 100โ240VAC
Durable nickel-plated brass housing
High noise immunity and fast response
Ideal for general-purpose industrial environments
IP66 protection for water and dust resistance
LED indicator for operational status
M18 threaded cylindrical body for easy mounting
Product Specifications
Type
proximity sensor
sensor type
connection type
cable type (2m)
control output
max. 300ma
housing material
nickel-plated brass
installation type
non-shielded
operating temperature
-25ยฐc to +70ยฐc
operating voltage
100โ240vac, 50/60hz
output type
2-wire ac (normally open)
protection rating
ip66
response frequency
20hz
sensing distance
5mm ยฑ10%
Product Details
The Autonics PR18-5AC is a robust and efficient cylindrical inductive proximity sensor designed for reliable metal object detection in various industrial automation applications. Featuring a 5mm sensing distance and a 2-wire AC output, it supports a wide range of AC voltages, making it ideal for both 110V and 220V systems. With a rugged M18 nickel-plated brass housing and IP66 protection rating, the PR18-5AC provides dependable operation even in demanding environments such as manufacturing lines, elevators, and machinery.
