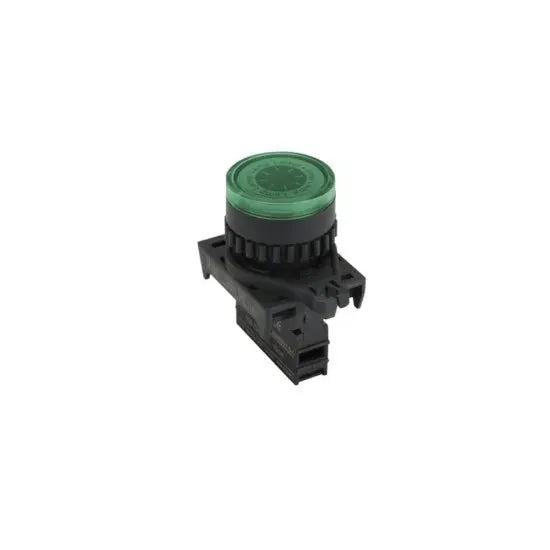

Autonics S2PR-P3GAL Illuminated Push Button Price is Rs.3,170/-. The Autonics S2PR-P3GAL is a high-performance illuminated push button switch designed for industrial control panels and automation systems. Featuring a green round actuator with built-in 24V LED illumination, this switch supports 22 mm mounting (25 mm with an optional ring) and offers dual contact configuration (1NO + 1NC) for versatile control. With a rugged design, IP65-rated front protection, and snap-on installation, the S2PR-P3GAL delivers both durability and easy operation in demanding environments.
Suitable for industrial machinery and control panels
Product Specifications
Type
push button
actuator color
green
body material
polycarbonate
contact configuration
1no + 1nc
contact material
silver alloy
illumination type
led
ingress protection
ip65 (front side)
led voltage
24v dc
mounting hole size
22 mm (25 mm with adapter ring)
operating temperature
-10°c to +55°c
rated current
3a
rated voltage
250v ac
Product Details
Autonics S2PR-P3GAL Illuminated Push Button Price is Rs.3,170/-. The Autonics S2PR-P3GAL is a high-performance illuminated push button switch designed for industrial control panels and automation systems. Featuring a green round actuator with built-in 24V LED illumination, this switch supports 22 mm mounting (25 mm with an optional ring) and offers dual contact configuration (1NO + 1NC) for versatile control. With a rugged design, IP65-rated front protection, and snap-on installation, the S2PR-P3GAL delivers both durability and easy operation in demanding environments.
