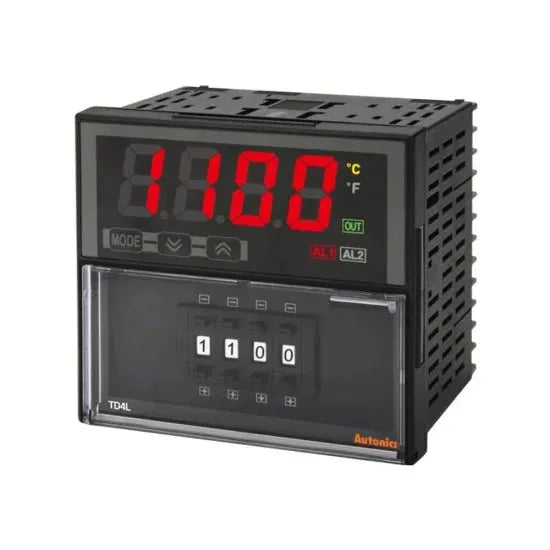

Autonics TD4L-14R Digital Switch PID Temperature Controller Price is Rs.59,040/-. The Autonics TD4L-14R is a high-performance digital temperature controller designed for accurate and reliable thermal regulation using PID or ON/OFF control modes. With a large dual LED display and compact 1/8 DIN size (48 × 96 mm), it offers clear monitoring of process and set values. This controller supports a wide range of thermocouple and RTD sensor inputs and features dual outputs: relay and voltage for SSRs. Equipped with auto-tuning and user-friendly front keypad programming, the TD4L-14R is ideal for applications in ovens, heaters, plastic molding, and laboratory systems where precise temperature control is essential.
Digitial swith application to PID temperature controllers
4-Digits Display for Setting & Indication
All ranges settable to 0C/0F
Dramatically increased visibility using wide display and high luminance
Dramatically increased visibility using wide display part and high luminance LED
High Control Accuracy0.5%
High Speed Sampling100ms
Memory Retention of Digital Switch Settings
Mounting space saving with compact designdownsized by approx. 38% (60mm) in depth compared to existing models
One Alarm Output standard in all controllers (except TD4SP-N4R)
Output modeON/OFF and P, PI, PD, PID (Manual or Auto Tuning
Output typeCombined Relay + SSR output (TD4L/TD4LP/TD4H)
PID Auto Tuning
Power Supply Voltage100 to 240VAC 50/60HZ
Realizing 100 ms high speed sampling
SSR drive output/Relay output or SSR drive output/Current output selectable (TD4H/TD4L/TD4LP
Product Specifications
Type
switch temperature controller
size
96x96 mm
alarm output
single 1 relay 1a contact
control output
single 1 relay 1a contact + ssr
series
td4 series
type
digital switch pid temperature controller
power supply
110 – 220 vac
Product Details
Autonics TD4L-14R Digital Switch PID Temperature Controller Price is Rs.59,040/-. The Autonics TD4L-14R is a high-performance digital temperature controller designed for accurate and reliable thermal regulation using PID or ON/OFF control modes. With a large dual LED display and compact 1/8 DIN size (48 × 96 mm), it offers clear monitoring of process and set values. This controller supports a wide range of thermocouple and RTD sensor inputs and features dual outputs: relay and voltage for SSRs. Equipped with auto-tuning and user-friendly front keypad programming, the TD4L-14R is ideal for applications in ovens, heaters, plastic molding, and laboratory systems where precise temperature control is essential.
