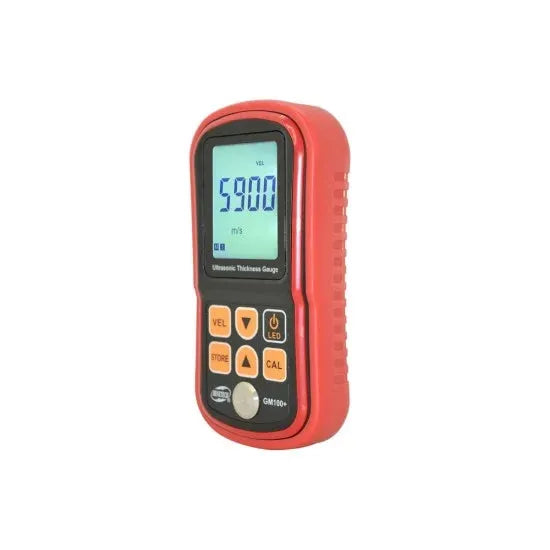

Benetech GM100+ Ultrasonic Thickness Gauge Price in Pakistan Rs 26,000/-. The Benetech GM100+ Ultrasonic Thickness Gauge is a high-precision digital device used to measure the thickness of materials such as metals, plastics, ceramics, glass, and more using ultrasonic technology. Ideal for corrosion testing, pipe inspection, and material analysis in manufacturing, construction, and maintenance fields, the GM100+ offers fast and accurate non-destructive testing (NDT). With its backlit LCD display, automatic calibration, and easy operation, this gauge is a reliable tool for quality assurance and structural safety assessments.
Non-destructive thickness measurement using ultrasonic pulse technology
Auto zero and two-point calibration functions
Battery-saving auto power-off and low battery indicator
Ideal for pipelines, tanks, machinery, and quality control
Large backlit LCD for clear viewing in various environments
Single and continuous measurement modes
Suitable for metals, plastics, ceramics, glass, and composite materials
Wide measuring range with high resolution and accuracy
Product Specifications
Type
thickness gauge
measuring range
1.2 – 225.0 mm (in steel)
accuracy
±(1%h + 0.1 mm), where h is the measured thickness
calibration
auto zero and two-point
display
backlit lcd
measurement modes
single point and scan mode
operating temperature
0°c – 50°c
power supply
3 × 1.5v aaa batteries
probe type
5 mhz transducer (included)
resolution
0.1 mm
sound velocity range
1000 – 9999 m/s (adjustable for different materials)
Product Details
Benetech GM100+ Ultrasonic Thickness Gauge Price in Pakistan Rs 26,000/-. The Benetech GM100+ Ultrasonic Thickness Gauge is a high-precision digital device used to measure the thickness of materials such as metals, plastics, ceramics, glass, and more using ultrasonic technology. Ideal for corrosion testing, pipe inspection, and material analysis in manufacturing, construction, and maintenance fields, the GM100+ offers fast and accurate non-destructive testing (NDT). With its backlit LCD display, automatic calibration, and easy operation, this gauge is a reliable tool for quality assurance and structural safety assessments.
