Network interface
|
24-port 10/100/1000mbps rj45 / 8-port 10/100/1000mbps sfp / 4-port 10 gigabit sfp
|
|
network protocol
|
ieee802.3、ieee802.3i ieee802.3u、ieee802.3ab ieee802.3z、ieee802.3ad、ieee802.3x、ieee802.3af/at ieee802.1p ieee802.1q、ieee802.1w、ieee802.1d、 ieee802.1s
|
|
switching capacity
|
128gbps (non-block）
|
|
forwarding ratet：95.2mpps
|
Black Copper BC-IRL3-24G-F8-F410G Gigabit Managed Switch Price in Pakistan is Rs. /-.

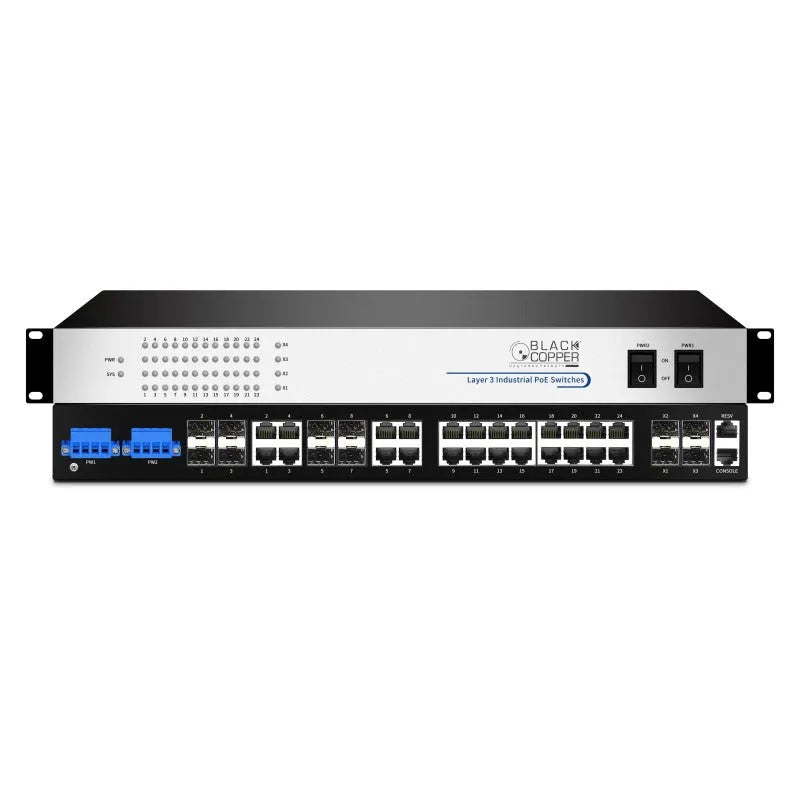

BC-IRL3-24G-F8-F410G is a 36-port gigabit L3 managed industrial Ethernet switch with 24 gigabit RJ45 ports, 8 gigabit SFP ports(Combo), and 4 10G optical ports. Each port can provide up to 30W of power and can be used for the Powered Devices (PDs) which are compatible with IEEE802.3af/at. It is especially suitable for application scenarios in which it is difficult to provide AC power and want to save the wiring costs. EMC Class 4 protection performance; corrugated high-strength aluminum profile shell, IP40 grade, low power consumption design, operating temperature of -40ºC-75ºC, can work in harsh environments. BC-IRL3-24G-F8-F410G can also support various network management functions: Layer 3 routing protocols, complete security protection mechanisms, RUN-Ring (self-healing time <10ms), RSTP, VLAN, QoS, SNMPv1/v2c/v3, IEEE802.1X, SSH/SSL, port mirror, port aggregation, etc. The BC-IRL3-24G-F8-F410G is a reliable solution for intelligent transportation, video surveillance and other harsh industrial environments by its rich redundancy, switching, and security management features.
Couldn't load pickup availability
Ask About This Product
|
Network interface
|
24-port 10/100/1000mbps rj45 / 8-port 10/100/1000mbps sfp / 4-port 10 gigabit sfp
|
|
network protocol
|
ieee802.3、ieee802.3i ieee802.3u、ieee802.3ab ieee802.3z、ieee802.3ad、ieee802.3x、ieee802.3af/at ieee802.1p ieee802.1q、ieee802.1w、ieee802.1d、 ieee802.1s
|
|
switching capacity
|
128gbps (non-block）
|
|
forwarding ratet：95.2mpps
|
|
|
packet buffer：12mb
|
|
|
forwarding model
|
store and forward
|
|
power indicator：p1,p2
|
|
|
system indicator：sys
|
|
|
alarm indicator：alm
|
|
|
sfp port indicator：link&act f1~f2
|
|
|
poe pin
|
1/2 （+），3/6/(-)；
|
|
input voltage：12-56v dc / 100-240v/50-60hz ac
|
|
|
input port
|
pluggable 5 pin terminals block, 5.08mm
|
|
no-load power
|
6w@52v dc
|
|
full load power
|
486w@52v dc
|
|
max. power for single port
|
30 w
|
|
casing：corrugated high-strength metal housing, ip40
|
|
|
installation：din-rail
|
|
|
dimension（lxwxh）：163mm×130mm×46.5mm
|
|
|
operating temperature：-40〜75°c
|
|
|
storage temperature：-40〜85℃
|
|
|
operating humidity：5%〜95% rh (non-condensing)
|
|
|
storage humidity：0%〜95% rh (non-condensing)
|
|
|
certification
|
ce/rohs/fcc
|
Black Copper BC-IRL3-24G-F8-F410G Gigabit Managed Switch Price in Pakistan is Rs. /-.
BC-IRL3-24G-F8-F410G is a 36-port gigabit L3 managed industrial Ethernet switch with 24 gigabit RJ45 ports, 8 gigabit SFP ports(Combo), and 4 10G optical ports. Each port can provide up to 30W of power and can be used for the Powered Devices (PDs) which are compatible with IEEE802.3af/at. It is especially suitable for application scenarios in which it is difficult to provide AC power and want to save the wiring costs. EMC Class 4 protection performance; corrugated high-strength aluminum profile shell, IP40 grade, low power consumption design, operating temperature of -40ºC-75ºC, can work in harsh environments. BC-IRL3-24G-F8-F410G can also support various network management functions: Layer 3 routing protocols, complete security protection mechanisms, RUN-Ring (self-healing time <10ms), RSTP, VLAN, QoS, SNMPv1/v2c/v3, IEEE802.1X, SSH/SSL, port mirror, port aggregation, etc. The BC-IRL3-24G-F8-F410G is a reliable solution for intelligent transportation, video surveillance and other harsh industrial environments by its rich redundancy, switching, and security management features.
