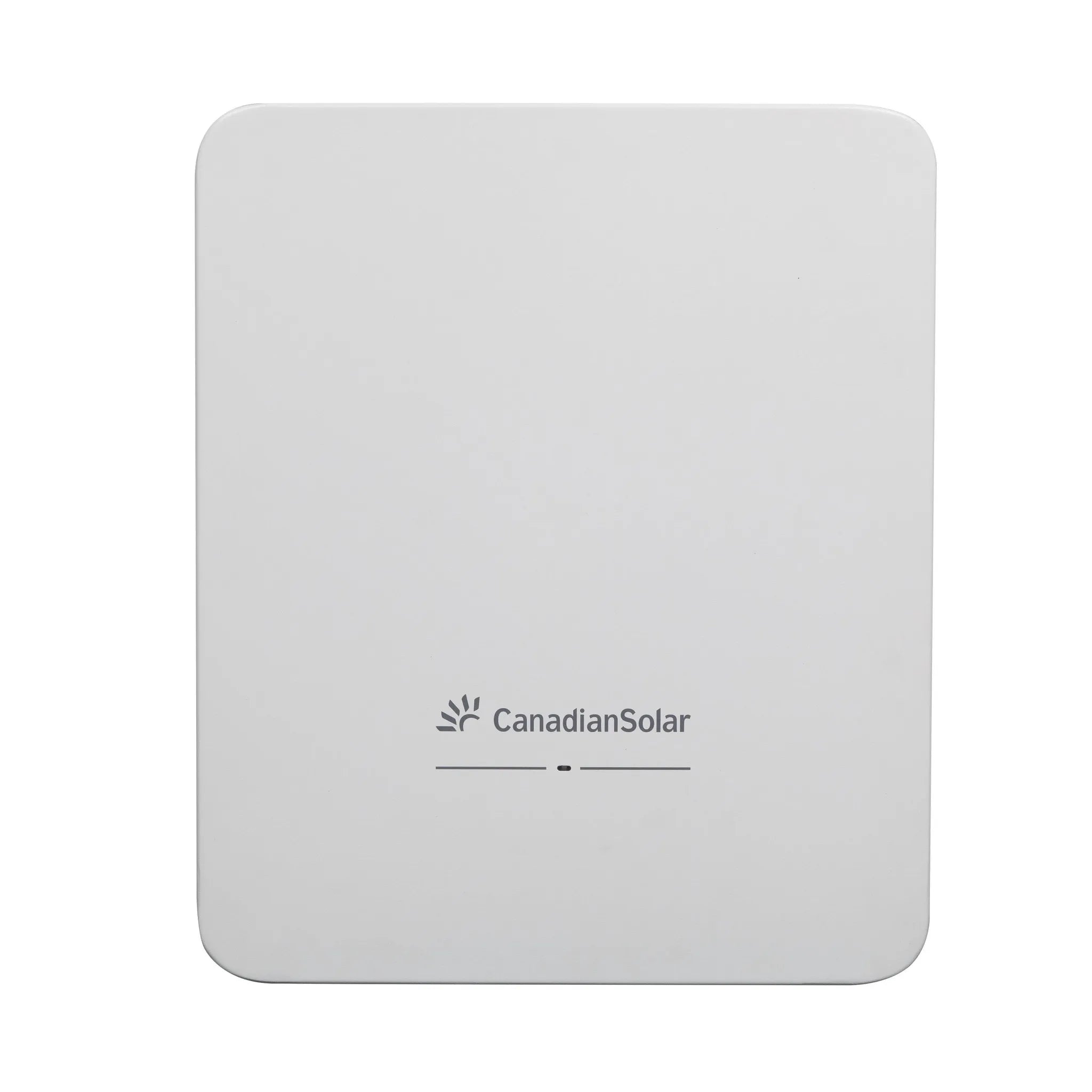

Introducing the Canadian 15kW On-Grid Solar Inverter, engineered for exceptional efficiency and performance. With a maximum efficiency of 98.6%, it ensures optimal power conversion. Equipped with 2 Maximum Power Point Trackers (MPPTs), it maximizes energy harvest, even in variable conditions. Each string boasts a 16A input, accommodating multiple high-power modules effortlessly. Plus, enjoy seamless integration with integrated DC switches for enhanced safety and convenience. Experience the future of solar energy with reliability and innovation from Canadian.
Trusted Performance: From Canadian, reliability assured.
Product Specifications
Type
on grid solar inverter
input voltage
1100 vdc
start-up dc input voltage
180 vdc
rated input voltage
630 vdc
mppt voltage range
160-1000 vdc
string input no. 4
mttp no
2
input current
2ìñ32 a
dc short-circuit current
2ìñ40 a
rated ac output power
15kw
ac output power (apparent)
15 kva
rated output voltage
380 vac / 400 vac
grid connection type
3l / n /pe
output current
22.8a
rated output frequency
50 / 60 hz
thdi
<3%
power factor
0.8 leading ... 0.8 lagging
zero export solution
support
dc switch
yes
anti-islanding protection
yes
dc reverse-polarity protection
yes
dc insulation resistance dection
yes
ac output over current protection
yes
ac short circuit protection
yes
afci
optional
Product Details
Introducing the Canadian 15kW On-Grid Solar Inverter, engineered for exceptional efficiency and performance. With a maximum efficiency of 98.6%, it ensures optimal power conversion. Equipped with 2 Maximum Power Point Trackers (MPPTs), it maximizes energy harvest, even in variable conditions. Each string boasts a 16A input, accommodating multiple high-power modules effortlessly. Plus, enjoy seamless integration with integrated DC switches for enhanced safety and convenience. Experience the future of solar energy with reliability and innovation from Canadian.
