Type
|
n-type topcon bi-facial dual glass
|
|
maximum power (pmax)
|
620w
|
|
module efficiency
|
21.9%
|
|
maximum power voltage (vmp)
|
35.7v
|

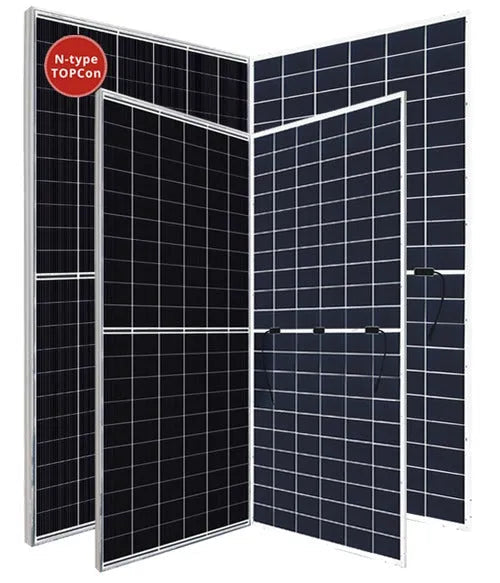

The Canadian Solar TOPBiHiKu7 620W N-Type Bi-Facial Solar Panel is a premium high-efficiency solar module designed for utility-scale, commercial, and industrial solar projects. Built with advanced N-Type TOPCon cell technology, the panel delivers exceptional power generation, lower degradation rates, and enhanced reliability over its lifetime.
Featuring a dual-glass bifacial design, the module can generate additional power from the rear side, offering up to 85% bifaciality and significantly increasing energy yield. The panel also benefits from superior Anti-PID and Anti-LeTID performance, ensuring long-term stability and reduced power loss.
With a maximum efficiency of 21.9%, robust mechanical durability, and a 30-year linear performance warranty, the TOPBiHiKu7 620W module provides an ideal solution for maximizing energy production while lowering system costs and LCOE.
Couldn't load pickup availability
Ask About This Product
|
Type
|
n-type topcon bi-facial dual glass
|
|
maximum power (pmax)
|
620w
|
|
module efficiency
|
21.9%
|
|
maximum power voltage (vmp)
|
35.7v
|
|
maximum power current (imp)
|
17.37a
|
|
open circuit voltage (voc)
|
42.9v
|
|
short circuit current (isc)
|
18.31a
|
|
power tolerance
|
0 ~ +10w
|
|
cell type
|
topcon cells
|
|
cell arrangement
|
120 cells [2 × (10 × 6)]
|
|
maximum system voltage
|
1500v dc (iec/ul)
|
|
maximum series fuse rating
|
35a
|
|
power bifaciality
|
80%
|
|
operating temperature range
|
-40°c to +85°c
|
|
temperature coefficient (pmax)
|
-0.29%/°c
|
|
temperature coefficient (voc)
|
-0.25%/°c
|
|
temperature coefficient (isc)
|
0.05%/°c
|
|
nominal module operating temperature (nmot)
|
41 ± 3°c
|
|
front glass
|
2.0mm heat strengthened glass with anti-reflective coating
|
|
back glass
|
2.0mm heat strengthened glass
|
|
frame
|
anodized aluminium alloy
|
|
junction box
|
ip68, 3 bypass diodes
|
|
cable size
|
4.0 mm²
|
|
cable length
|
(+) 410mm / (-) 250mm
|
|
connector type
|
t6 / mc4-evo2 / mc4-evo2a
|
|
dimensions
|
2172 × 1303 × 33 mm
|
|
weight
|
34.5 kg
|
|
application classification
|
class a
|
|
fire performance
|
type 29 (ul61730) / class c (iec61730)
|
|
front load capacity
|
5400 pa
|
|
rear load capacity
|
2400 pa
|
|
product warranty
|
12 years
|
|
linear performance warranty
|
30 years
|
|
first-year degradation
|
=1%
|
|
annual degradation
|
=0.40%
|
|
power retention after 30 years
|
87.4%
|
The Canadian Solar TOPBiHiKu7 620W N-Type Bi-Facial Solar Panel is a premium high-efficiency solar module designed for utility-scale, commercial, and industrial solar projects. Built with advanced N-Type TOPCon cell technology, the panel delivers exceptional power generation, lower degradation rates, and enhanced reliability over its lifetime.
Featuring a dual-glass bifacial design, the module can generate additional power from the rear side, offering up to 85% bifaciality and significantly increasing energy yield. The panel also benefits from superior Anti-PID and Anti-LeTID performance, ensuring long-term stability and reduced power loss.
With a maximum efficiency of 21.9%, robust mechanical durability, and a 30-year linear performance warranty, the TOPBiHiKu7 620W module provides an ideal solution for maximizing energy production while lowering system costs and LCOE.
