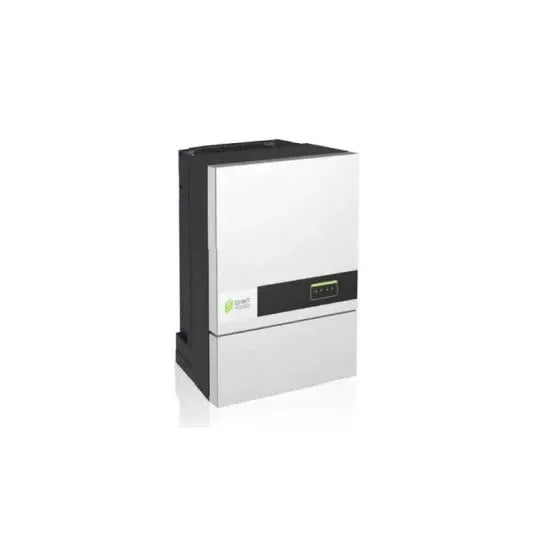

Chint 30kw On Grid Solar Inverter Price in Pakistan is Rs. Inquiry/-. Introducing the Chint 30KW On-Grid Solar Inverter, a versatile and high-performance solution for solar energy systems. With its three-phase string series design, this inverter offers optional features such as a DC switch, integrated DC combiner box, PID protection module, and GPRS/Wi-Fi/RS485 wireless communication, catering to various customer needs. It can also support a 10% rated overload, reducing initial investment costs. Achieve maximum efficiency with rates reaching 98.3%, Euro efficiency at 98.0%, and MPPT efficiency at 99.5%. Featuring a fan-less topology design and internationally known device options, this inverter ensures profitability throughout its whole life cycle.
Versatile Three-Phase Design: Suitable for various applications.
Optional Features: DC switch, integrated DC combiner box, PID protection module.
Connectivity Options: GPRS/Wi-Fi/RS485 wireless communication for easy monitoring.
Overload Support: Can efficiently handle a 10% rated overload, reducing initial investment.
High Efficiency: Provides up to 98.3% maximum efficiency and 98.0% Euro efficiency.
Enhanced Performance: Achieves 99.5% MPPT efficiency for optimized power generation.
Reliable Design: Fan-less topology ensures durability and longevity.
Product Specifications
Type
on grid inverter
display
lcd/led
ac current max
48a
dc current max
3 x 23a
altitude
4000m
dc voltage max
1000vdc
power factor (cosφ)
±0.8(adjustable)
weight
53 kg
ac power
rated
topology
transformerless
ac connection
plug-in connector
communication
rs485 (standard) / wi-fi & gprs(optional)
cooling method
natural convection
grid frequency
50hz,60hz / 45-55hz,55-65hz
ingress protection
ip65
mppt voltage range (full load)
480 - 850vdc, 200 - 950vdc
rated ac voltage/range
380v , 400v / 340 - 440v
rated dc power
31kw
ambient humidity
0 - 100%, non-condensing
current thd
< 3%
dc switch
optional
grid connection type
3w + n + pe
noise
< 30dba
number of mppt
3
operating temperature range
-25℃ to +60℃
dimensions
(w*h*d)
Product Details
Chint 30kw On Grid Solar Inverter Price in Pakistan is Rs. Inquiry/-. Introducing the Chint 30KW On-Grid Solar Inverter, a versatile and high-performance solution for solar energy systems. With its three-phase string series design, this inverter offers optional features such as a DC switch, integrated DC combiner box, PID protection module, and GPRS/Wi-Fi/RS485 wireless communication, catering to various customer needs. It can also support a 10% rated overload, reducing initial investment costs. Achieve maximum efficiency with rates reaching 98.3%, Euro efficiency at 98.0%, and MPPT efficiency at 99.5%. Featuring a fan-less topology design and internationally known device options, this inverter ensures profitability throughout its whole life cycle.
