Chint DTSU666 Three Phase DIN-Rail Meter price in Pakistan is Rs Inquiry/-.

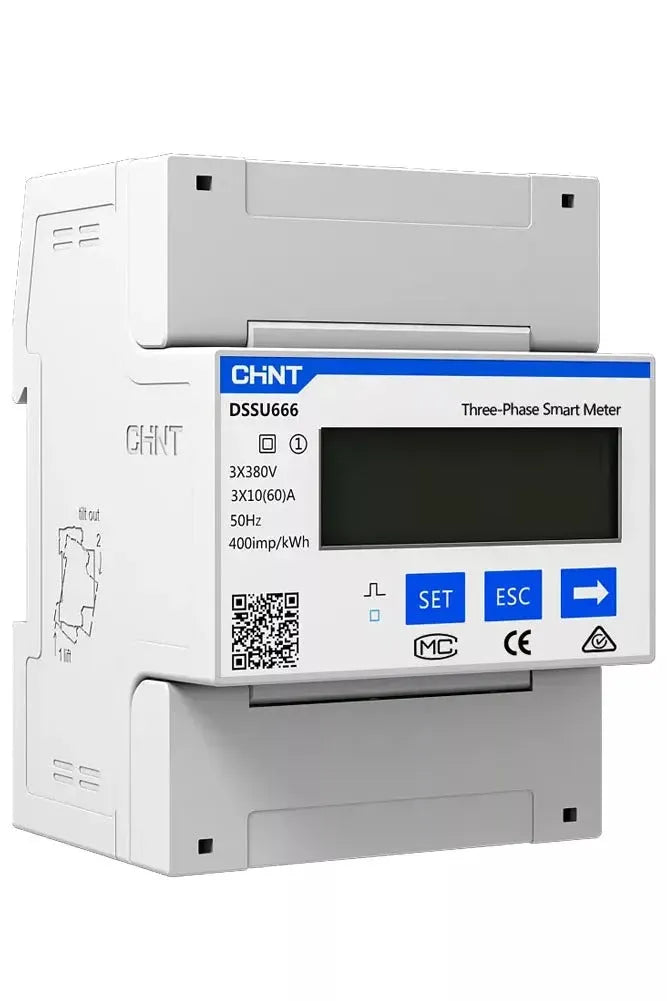

The Chint DTSU666 is a three-phase DIN-rail meter designed for accurate electrical measurement in industrial settings. It supports Modbus and DL/T protocols for versatile data communication. Featuring a 7-digit LCD display and LED indicators, it measures total kWh, kvarh, instantaneous kW, kvar, Irms, Vrms, frequency, and power factor. With an operating temperature range of -40°C to +75°C, an IP54 rating, and a compact size of 98mm x 65mm x 72mm, it is built to withstand tough environments while delivering reliable Class 1 accuracy for active power measurements.
Versatile Protocol Support: Modbus and DL/T communication
Wide Operating Range: -40°C to +75°C with IP54 protection
Accurate Measurements: Class 1 accuracy for active power
Comprehensive Data: Measures total kWh, kvarh, and instantaneous values
Compact Design: 98mm x 65mm x 72mm, ideal for DIN-rail installation
Clear Display: 7-digit LCD and LED indicators
Product Specifications
Protocols
modbus, dl/t
operating temperature
-40°c to +75°c
storage temperature
-40°c to +85°c
relative humidity
≤ 95% rh
ingress protection
ip54
dimensions
98mm x 65mm x 72mm
weight
approx. 0.4 kg
frequency
50hz or 60hz
display
7-digit lcd, 5.3mm x 2.8mm digital size; led indicators for kwh
measurement accuracy
class 1 for active power
connection type
3p4w
nominal voltage
3x220/380v, 3x57.7/100v
operating voltage range
0.7 un to 1.2 un
power consumption
≤ 1 w, ≤ 1 sva
current transformer (ct)
1.5(6)a
Product Details
Chint DTSU666 Three Phase DIN-Rail Meter price in Pakistan is Rs Inquiry/-.
The Chint DTSU666 is a three-phase DIN-rail meter designed for accurate electrical measurement in industrial settings. It supports Modbus and DL/T protocols for versatile data communication. Featuring a 7-digit LCD display and LED indicators, it measures total kWh, kvarh, instantaneous kW, kvar, Irms, Vrms, frequency, and power factor. With an operating temperature range of -40°C to +75°C, an IP54 rating, and a compact size of 98mm x 65mm x 72mm, it is built to withstand tough environments while delivering reliable Class 1 accuracy for active power measurements.
