Type
|
pilot light
|
|
voltage range
|
220vac
|
|
color
|
green, red, yellow, blue
|
Chint ND9-22D/4 Control Signal Indication Light Price in Pakistan is Rs. 900/-.

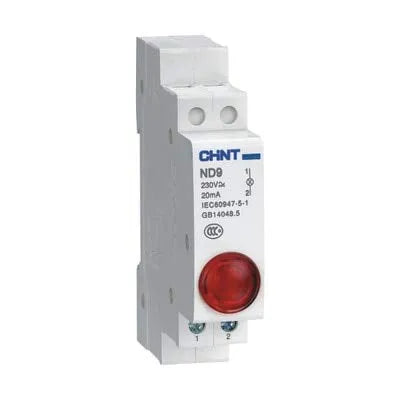

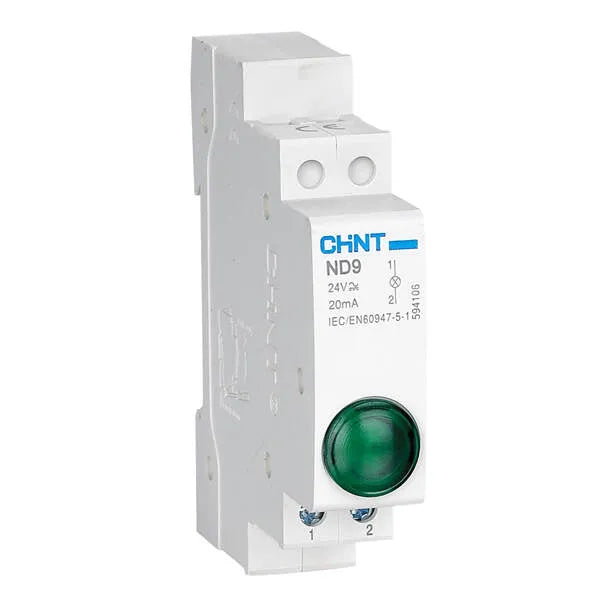

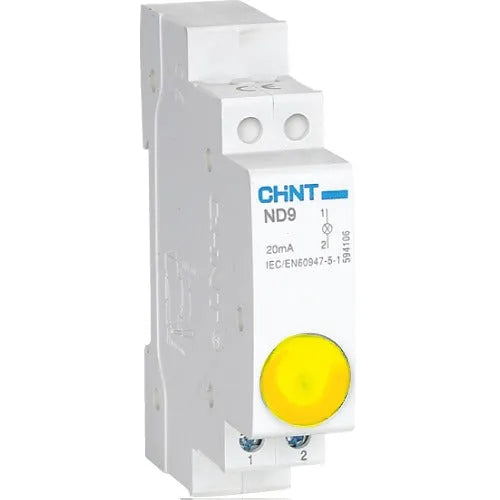

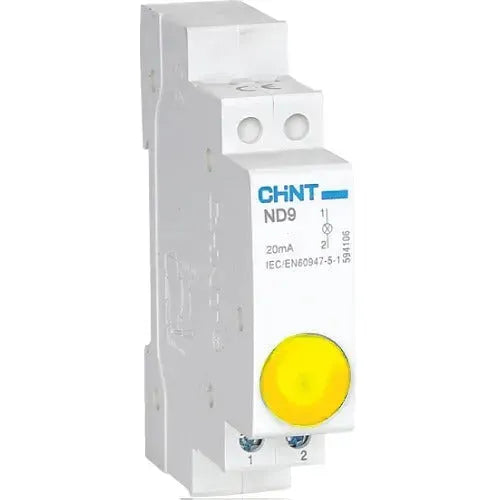

The Chint ND9-22D/4 Indicator Light is a versatile LED indicator available in red, green, yellow, and blue colors, each with a 220VAC rating. Designed for robust performance, it operates at 230V AC50/60Hz with a rated insulation voltage of 500V and a protection grade of IP20. It features a low operational current of ≤20mA and an impressive LED lifespan of over 30,000 hours. The indicator is compliant with IEC/EN 60947-5-1 standards and is suitable for a range of operating conditions including ambient temperatures from -5℃ to +40℃ and altitudes up to 2000m. It mounts easily on a TH35-7.5 rail and supports a conductor cross-section of 1.0mm with a tightening torque of 0.8N•m.
