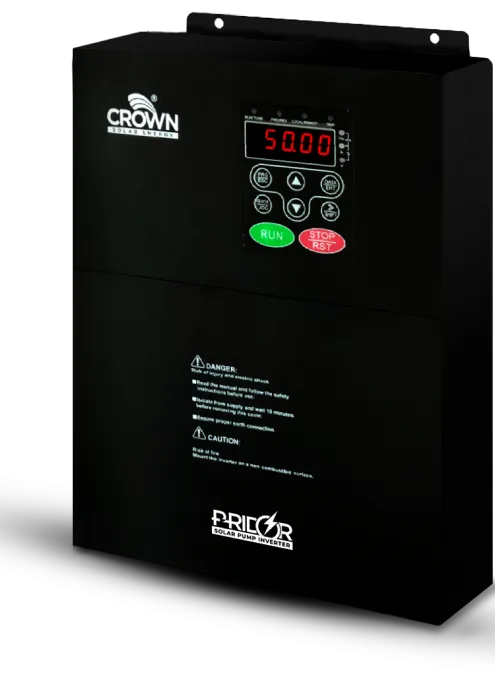

Crown 22kW PRIDOR Solar Pump Inverter Price in Pakistan is Rs. 121,000/-. The Crown 22kW PRIDOR Solar Pump Inverter is a heavy-duty, high-efficiency VFD (Variable Frequency Drive) specifically engineered for large agricultural, irrigation, and industrial pumping operations. It converts solar DC power into stable AC output, efficiently driving submersible, centrifugal, or surface pumps with reliable performance and optimized energy consumption.
Incorporating advanced IGBT DSP chip technology, this inverter ensures intelligent motor control, superior energy efficiency, and long-term stability. Its integrated MPPT (Maximum Power Point Tracking) system maximizes solar utilization for continuous, high-output operation — even under variable sunlight conditions. The robust thermal management system and comprehensive protection features ensure consistent performance, safety, and extended service life.
Wall-mounted installation for easy setup and maintenance
Supported by Crown Solar Energy’s 18-month full replacement warranty
Product Specifications
Type
solar pump inverter
rated power output
22 kw
input voltage range
380v ±15% (three-phase ac or solar dc input)
output voltage range
0 ~ rated voltage (adjustable)
input frequency
50/60 hz
output frequency
0–50/60 hz (adjustable)
speed adjustment range
1
control method
sensorless vector control / v/f control
technology
advanced igbt + dsp chip control
mppt function
built-in maximum power point tracking for solar optimization
cooling system
intelligent air cooling
protection features
over-voltage, under-voltage, overload, overheat, dry-run, and short circuit protection
display type
led/lcd digital display for real-time operation and settings
installation type
wall-mounted
enclosure protection rating
ip20 (indoor use)
supported pump types
submersible, centrifugal, and surface pumps
operating temperature range
−10°c to +50°c
humidity
≤95% (non-condensing)
altitude
≤1000 m (derating required above this level)
warranty
18 months complete replacement warranty
Product Details
Crown 22kW PRIDOR Solar Pump Inverter Price in Pakistan is Rs. 121,000/-. The Crown 22kW PRIDOR Solar Pump Inverter is a heavy-duty, high-efficiency VFD (Variable Frequency Drive) specifically engineered for large agricultural, irrigation, and industrial pumping operations. It converts solar DC power into stable AC output, efficiently driving submersible, centrifugal, or surface pumps with reliable performance and optimized energy consumption.
Incorporating advanced IGBT DSP chip technology, this inverter ensures intelligent motor control, superior energy efficiency, and long-term stability. Its integrated MPPT (Maximum Power Point Tracking) system maximizes solar utilization for continuous, high-output operation — even under variable sunlight conditions. The robust thermal management system and comprehensive protection features ensure consistent performance, safety, and extended service life.
With a wall-mounted design for convenient installation and backed by Crown Solar Energy’s 18-month complete replacement warranty, the PRIDOR 22kW inverter delivers unmatched reliability for demanding solar water pumping applications.
