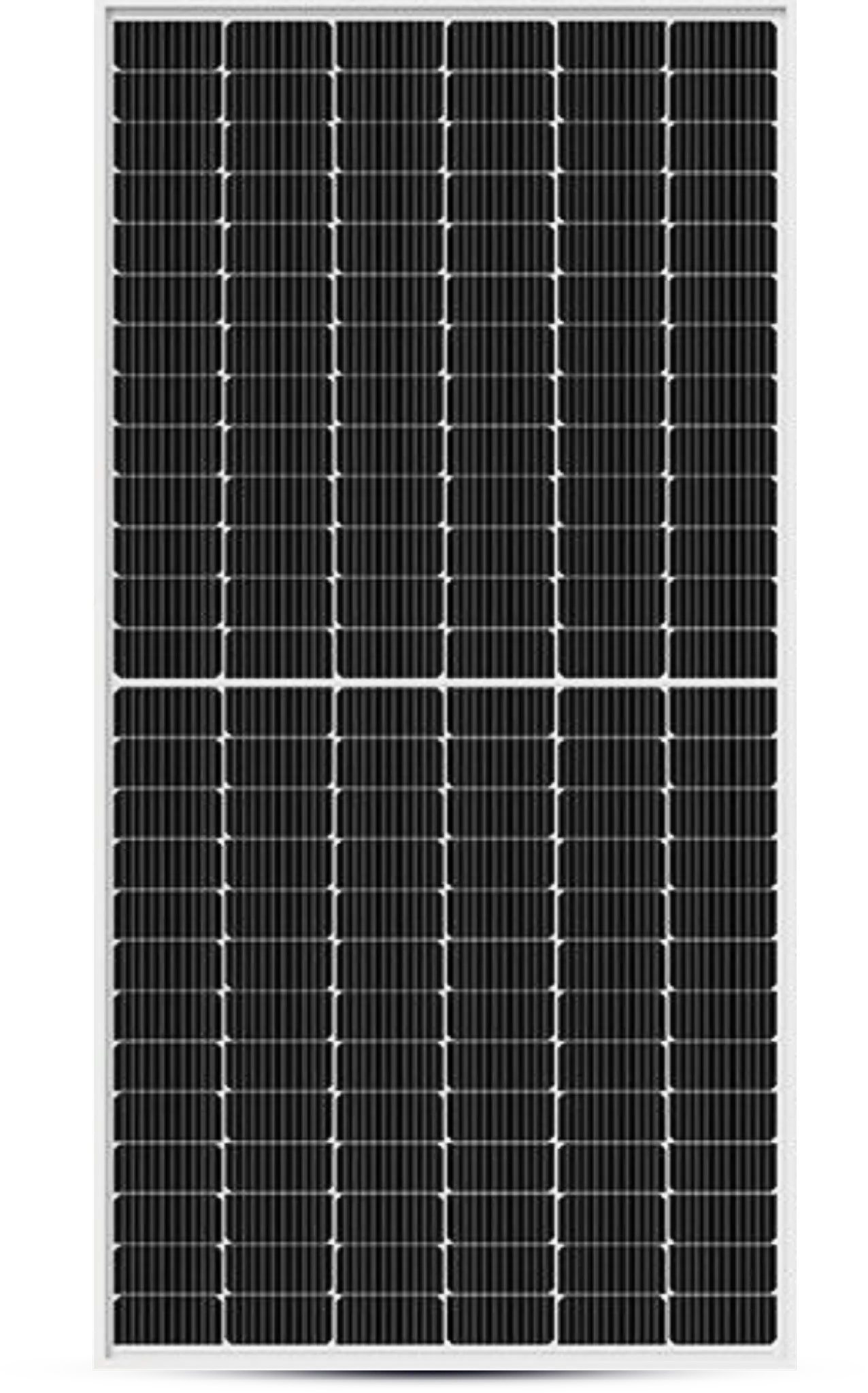

Crown 620 Watt N-Type Bifacial Solar Panel Price in Pakistan is Rs. 18,140/-. The Crown 620 Watt N-Type Bifacial Solar Panel is a high-performance solar module designed with the latest N-Type TOPCon technology for exceptional power generation and long-term reliability. Featuring a bifacial dual-glass design, it captures sunlight from both sides to increase total energy output by up to 25%. Its advanced 182mm × 210mm half-cut MBB (Multi-Busbar) cells ensure higher efficiency, lower resistance losses, and improved durability. Built with robust materials and high mechanical strength, the Crown 620W N-Type Bifacial Panel offers excellent performance even in low-light or high-temperature conditions—making it an ideal choice for large-scale, commercial, and industrial solar projects.
Advanced N-Type TOPCon technology for high conversion efficiency
Bifacial dual-glass design boosts rear-side energy gain up to 25%
MBB half-cut cells ensure higher power and lower resistance losses
Excellent low-light and temperature performance
High mechanical load capacity and corrosion resistance
Minimal LID and PID for long-term power stability
Ideal for commercial, utility-scale, and industrial installations
Product Specifications
Type
bifacial solar panel
maximum power (pmax)
620w
cell type
n-type topcon monocrystalline (mbb half-cut)
module efficiency
up to 22.9%
open circuit voltage (voc)
57.2v ± 3%
short circuit current (isc)
13.95a ± 3%
maximum power voltage (vmp)
48.6v ± 3%
maximum power current (imp)
12.76a ± 3%
number of cells
132 (6 × 22) half-cut
cell dimensions
182mm × 210mm
front side power gain
100% (base output)
rear side power gain
up to 5% – 25% additional output
module dimensions
2384mm × 1303mm × 35mm
weight
33.5 kg
front glass
2.0mm high transmission tempered glass
back glass
2.0mm tempered glass
frame material
anodized aluminum alloy
junction box
ip68 rated with 3 bypass diodes
connector type
mc4 compatible
cable length
1200mm (customizable)
operating temperature
-40°c to +85°c
maximum system voltage
1500v dc (iec/ul)
power tolerance
0 ~ +5w
mechanical load
5400 pa (snow) / 2400 pa (wind)
fire rating
class c
warranty
25 years linear power output warranty, 12 years product warranty
Product Details
Crown 620 Watt N-Type Bifacial Solar Panel Price in Pakistan is Rs. 18,140/-. The Crown 620 Watt N-Type Bifacial Solar Panel is a high-performance solar module designed with the latest N-Type TOPCon technology for exceptional power generation and long-term reliability. Featuring a bifacial dual-glass design, it captures sunlight from both sides to increase total energy output by up to 25%. Its advanced 182mm × 210mm half-cut MBB (Multi-Busbar) cells ensure higher efficiency, lower resistance losses, and improved durability. Built with robust materials and high mechanical strength, the Crown 620W N-Type Bifacial Panel offers excellent performance even in low-light or high-temperature conditions—making it an ideal choice for large-scale, commercial, and industrial solar projects.
