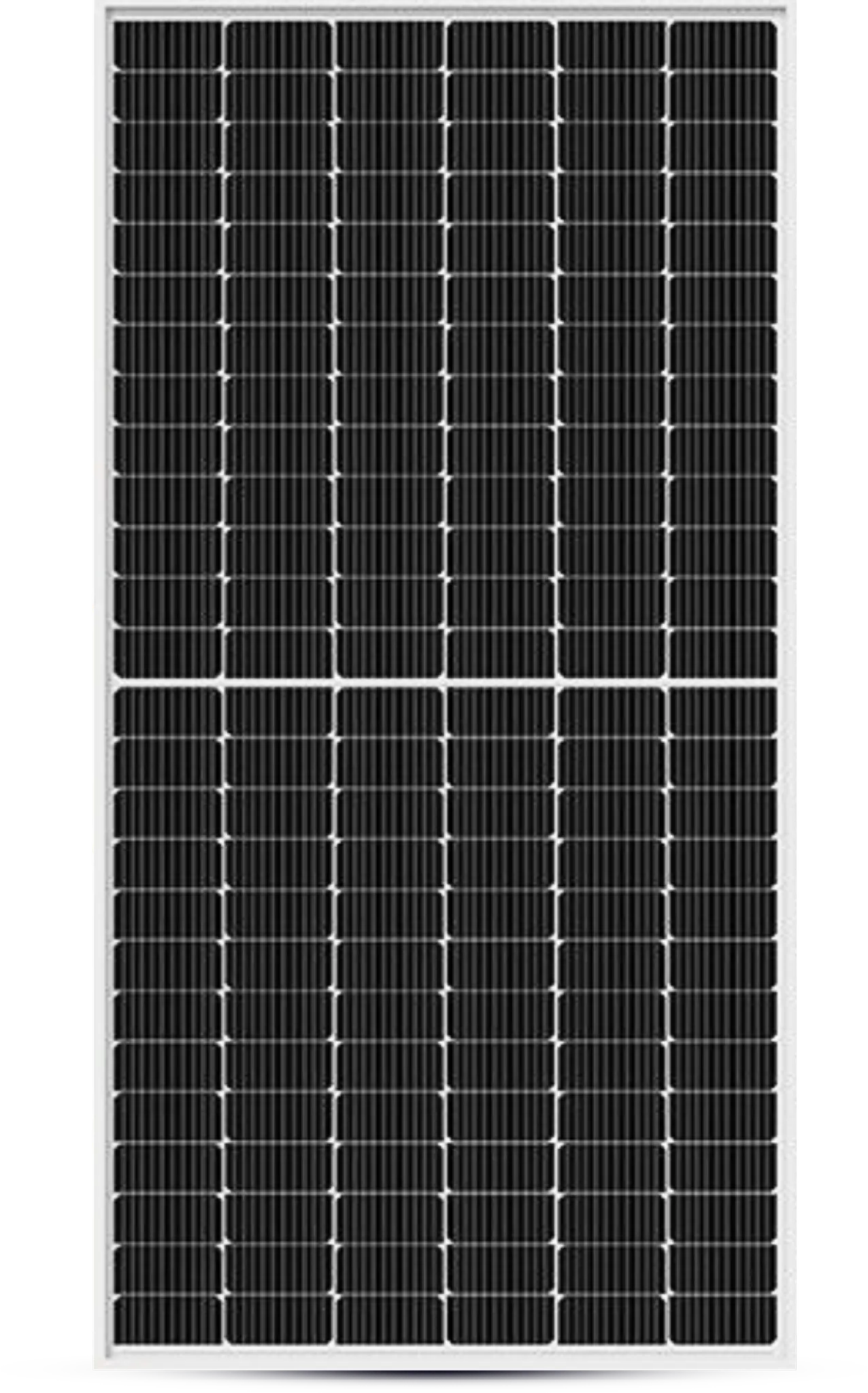

Crown 640 Watt N-Type Bifacial Solar Panel Price in Pakistan is Rs. 19,840/-. The Crown 640 Watt N-Type Bifacial Solar Panel represents the latest innovation in high-efficiency solar technology. Built with N-Type TOPCon monocrystalline cells and a dual-glass bifacial design, it captures sunlight from both the front and rear sides to generate up to 25% more power output. Its advanced MBB (Multi-Busbar) half-cut cells reduce resistance loss and enhance energy yield, ensuring exceptional performance in all lighting and temperature conditions. Engineered with a corrosion-resistant aluminum frame and double tempered glass, this panel delivers unmatched durability and long-term reliability — perfect for utility-scale, commercial, and industrial installations.
N-Type TOPCon cell technology for higher efficiency and reliability
Bifacial dual-glass design provides up to 25% extra energy yield
MBB half-cut cells enhance performance and reduce resistance
Excellent low-light and high-temperature performance
Durable construction with high mechanical load capacity
Low LID and PID for long-term stable output
Ideal for utility, commercial, and industrial solar systems
Product Specifications
Type
bi-facial solar panel
maximum power (pmax)
640w
cell type
n-type topcon monocrystalline (mbb half-cut)
module efficiency
up to 23.1%
open circuit voltage (voc)
58.1v ± 3%
short circuit current (isc)
14.2a ± 3%
maximum power voltage (vmp)
49.2v ± 3%
maximum power current (imp)
13.01a ± 3%
number of cells
132 (6 × 22) half-cut
cell dimensions
182mm × 210mm
front side power gain
100% (base output)
rear side power gain
up to 5% – 25% additional output
module dimensions
2384mm × 1303mm × 35mm
weight
33.5 kg
front glass
2.0mm high transmission tempered glass
back glass
2.0mm tempered glass
frame material
anodized aluminum alloy
junction box
ip68 rated with 3 bypass diodes
connector type
mc4 compatible
cable length
1200mm (customizable)
operating temperature
-40°c to +85°c
maximum system voltage
1500v dc (iec/ul)
power tolerance
0 ~ +5w
mechanical load
5400 pa (snow) / 2400 pa (wind)
fire rating
class c
warranty
25 years linear power output warranty, 12 years product warranty
Product Details
Crown 640 Watt N-Type Bifacial Solar Panel Price in Pakistan is Rs. 19,840/-. The Crown 640 Watt N-Type Bifacial Solar Panel represents the latest innovation in high-efficiency solar technology. Built with N-Type TOPCon monocrystalline cells and a dual-glass bifacial design, it captures sunlight from both the front and rear sides to generate up to 25% more power output. Its advanced MBB (Multi-Busbar) half-cut cells reduce resistance loss and enhance energy yield, ensuring exceptional performance in all lighting and temperature conditions. Engineered with a corrosion-resistant aluminum frame and double tempered glass, this panel delivers unmatched durability and long-term reliability — perfect for utility-scale, commercial, and industrial installations.
