Type
|

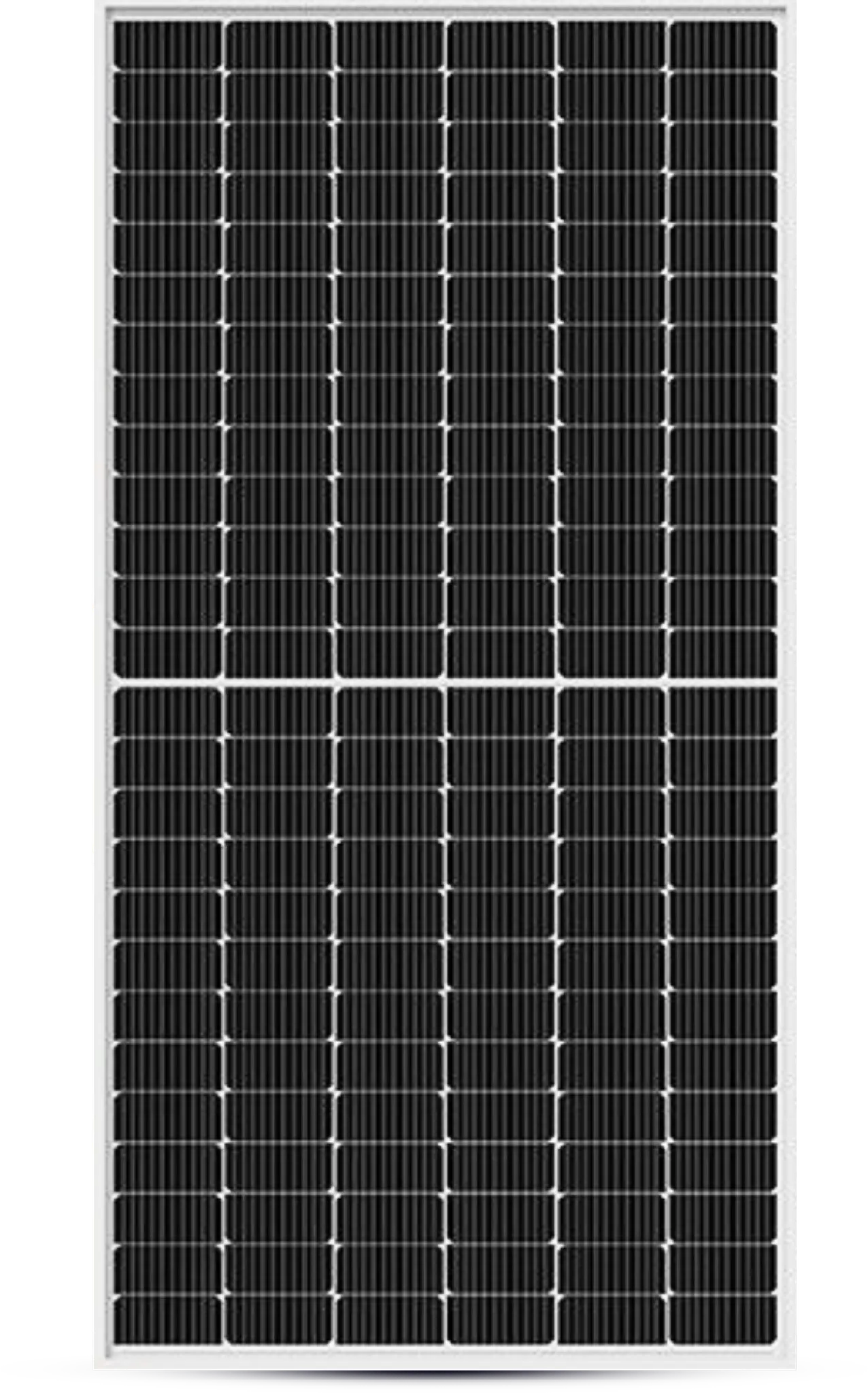

mono facial solar panel
|
|
type
|
n-type monofacial
|
|
maximum power (pmax)
|
640w
|
|
cell type
|
n-type topcon monocrystalline
|
Couldn't load pickup availability
Ask About This Product
|
Type
|
mono facial solar panel
|
|
type
|
n-type monofacial
|
|
maximum power (pmax)
|
640w
|
|
cell type
|
n-type topcon monocrystalline
|
|
module efficiency
|
up to 22.5%
|
|
open circuit voltage (voc)
|
57.8v ± 3%
|
|
short circuit current (isc)
|
13.95a ± 3%
|
|
maximum power voltage (vmp)
|
48.5v ± 3%
|
|
maximum power current (imp)
|
13.2a ± 3%
|
|
number of cells
|
132 (6 × 22)
|
|
cell dimensions
|
182mm × 91mm (half-cut cells)
|
|
module dimensions
|
2384mm × 1303mm × 35mm
|
|
weight
|
33.5 kg
|
|
front glass
|
3.2mm high transmission tempered glass
|
|
frame material
|
anodized aluminum alloy
|
|
junction box
|
ip68 rated with 3 bypass diodes
|
|
connector type
|
mc4 compatible
|
|
cable length
|
1200mm (customizable)
|
|
operating temperature
|
-40°c to +85°c
|
|
maximum system voltage
|
1500v dc (iec/ul)
|
|
power tolerance
|
0 ~ +5w
|
|
mechanical load
|
5400 pa (snow) / 2400 pa (wind)
|
|
fire rating
|
class c
|
|
warranty
|
25 years linear power output warranty, 12 years product warranty
|
