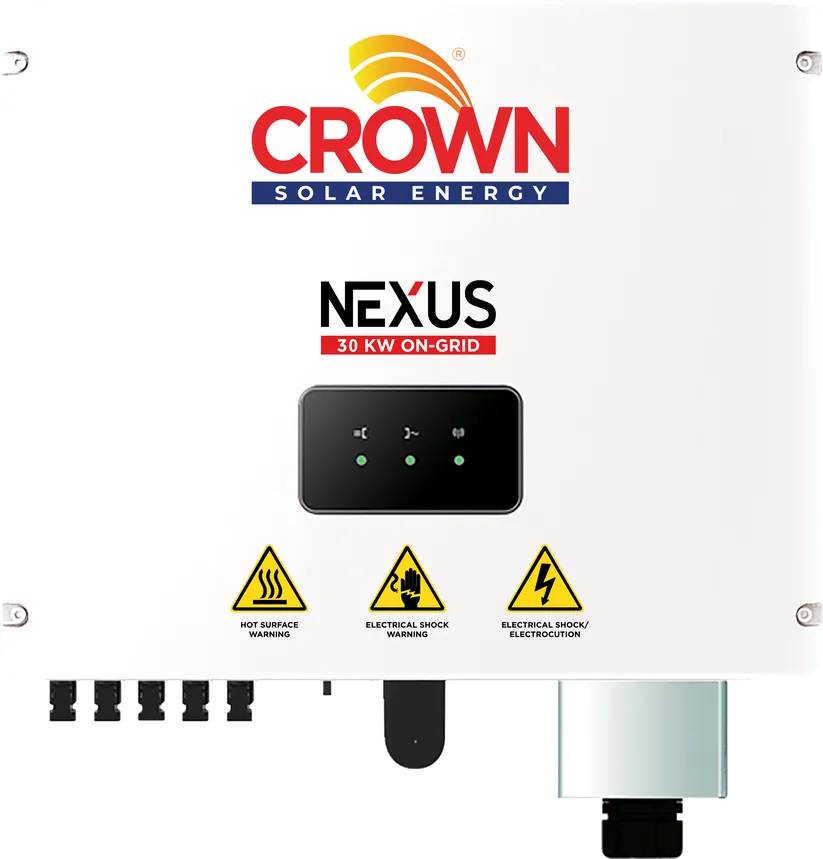

Crown Solar Energy Nexus 30kW On-Grid Inverter Price in Pakistan is Rs. 302,500/-. The Crown Solar Energy Nexus 30kW On-Grid Inverter (IP66) is a high-efficiency, heavy-duty solar inverter engineered for commercial and industrial-scale solar systems. With its transformerless architecture and an impressive conversion efficiency of up to 98.8%, it ensures optimal solar energy utilization and long-term reliability.
Designed for outdoor installation, the Nexus 30kW features an IP66 weatherproof enclosure, protecting it from dust, rain, and harsh environmental conditions. It supports a wide DC input voltage range (180V–1000V), enabling flexible string configurations and improved energy harvesting.
The inverter comes equipped with dual MPPTs (Maximum Power Point Trackers) to enhance energy yield under varying sunlight conditions. For superior safety, it integrates a built-in DC switch, Type II surge protection, and insula...
High-efficiency (up to 98.8%) transformerless on-grid inverter
Dual MPPTs ensure maximum energy harvesting from multiple strings
Wide DC voltage range (180V–1000V) for flexible array design
IP66-rated enclosure ideal for outdoor commercial installations
Built-in DC switch & surge protection enhance operational safety
Integrated Wi-Fi for real-time monitoring and system management
Smart thermal control for reliable performance in hot environments
Comprehensive protection suite with insulation monitoring
10-year complete replacement warranty for long-term assurance
Product Specifications
Type
on-grid solar inverter
rated ac output power
30,000 w (30 kw)
maximum dc input power
45,000 w
dc input voltage range
180 v – 1000 v
start-up voltage
200 v
nominal dc voltage
600 v
maximum input current
2 × 30 a
mppt trackers / inputs per mppt
2 / 1
ac output voltage
230/400 v, 3 phase
ac output current
45 a
output frequency
50 / 60 hz (auto adjustable)
power factor
>0.99 (adjustable)
total harmonic distortion (thd)
<3%
maximum efficiency
98.8%
european efficiency
98.4%
topology
transformerless
protection degree
ip66 (outdoor installation)
communication interface
built-in wi-fi, rs485, optional gprs/4g
display
lcd + led indicators
cooling method
smart forced air cooling
operating temperature range
−25°c to +60°c
relative humidity
0–100% (non-condensing)
altitude
≤2000 m (derating above 2000 m)
noise level
<50 db
dimensions (w × h × d)
580 × 660 × 240 mm
weight
35 kg
installation type
wall-mounted / floor-mounted option
warranty
10 years complete replacement warranty
Product Details
Crown Solar Energy Nexus 30kW On-Grid Inverter Price in Pakistan is Rs. 302,500/-. The Crown Solar Energy Nexus 30kW On-Grid Inverter (IP66) is a high-efficiency, heavy-duty solar inverter engineered for commercial and industrial-scale solar systems. With its transformerless architecture and an impressive conversion efficiency of up to 98.8%, it ensures optimal solar energy utilization and long-term reliability.
Designed for outdoor installation, the Nexus 30kW features an IP66 weatherproof enclosure, protecting it from dust, rain, and harsh environmental conditions. It supports a wide DC input voltage range (180V–1000V), enabling flexible string configurations and improved energy harvesting.
The inverter comes equipped with dual MPPTs (Maximum Power Point Trackers) to enhance energy yield under varying sunlight conditions. For superior safety, it integrates a built-in DC switch, Type II surge protection, and insulation monitoring, ensuring stable and secure operation.
With built-in Wi-Fi connectivity, users can remotely monitor system performance in real-time through Crown Solar Energy’s intelligent monitoring platform. Backed by a 10-year complete replacement warranty, the Nexus 30kW is a robust, efficient, and future-ready choice for reliable solar power generation.
