Type
|
on-grid solar inverter
|
|
rated ac output power
|
50,000 w (50 kw)
|
|
maximum dc input power
|
75,000 w
|
|
dc input voltage range
|
180 v – 1100 v
|

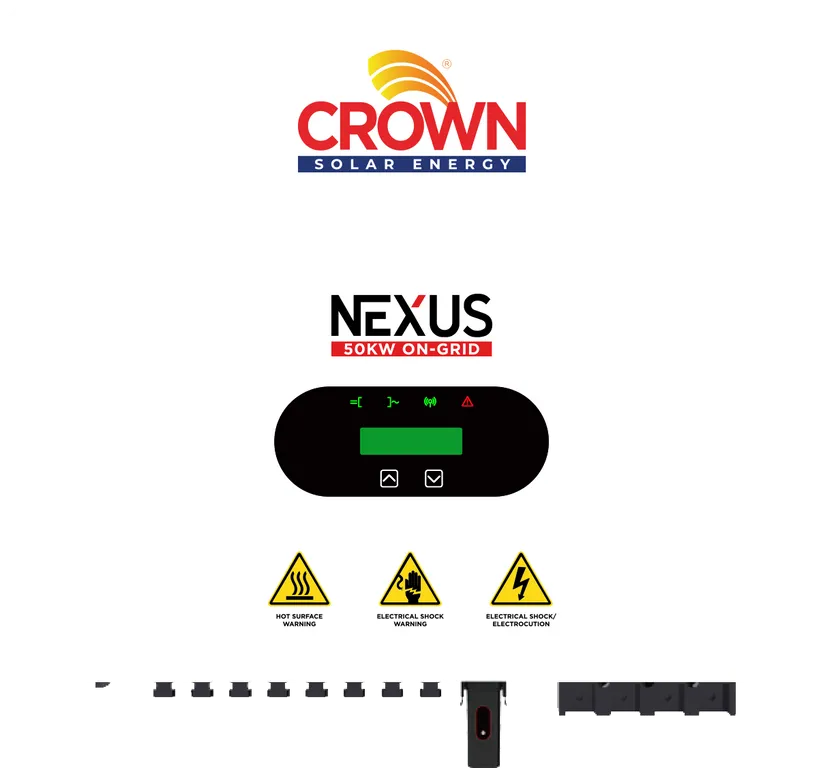

With a wide DC input voltage range (180V–1100V), the Nexus 50kW supports modern 600W+ solar panels, enabling flexible configurations and higher system yields. The inverter is IP66-rated, making it suitable for outdoor installations under harsh environmental conditions.
For operational safety, it includes a built-in DC switch, Type II surge protection, and insulation monitoring, ensuring long-term stability and protection. Built-in Wi-Fi connectivity enables real-time remote monitoring, while smart cooling technology maintains efficiency even in extreme climates.
Back...
Couldn't load pickup availability
Ask About This Product
|
Type
|
on-grid solar inverter
|
|
rated ac output power
|
50,000 w (50 kw)
|
|
maximum dc input power
|
75,000 w
|
|
dc input voltage range
|
180 v – 1100 v
|
|
start-up voltage
|
200 v
|
|
nominal dc voltage
|
600 v
|
|
maximum input current
|
4 × 30 a
|
|
mppt trackers / inputs per mppt
|
4 / 2
|
|
compatible pv module power
|
supports 600w+ panels
|
|
ac output voltage
|
230/400 v, 3 phase
|
|
ac output current
|
75 a
|
|
output frequency
|
50 / 60 hz (auto adjustable)
|
|
power factor
|
>0.99 (adjustable)
|
|
total harmonic distortion (thd)
|
<3%
|
|
maximum efficiency
|
98.9%
|
|
european efficiency
|
98.6%
|
|
topology
|
transformerless
|
|
protection degree
|
ip66 (outdoor rated)
|
|
communication interface
|
built-in wi-fi, rs485, optional 4g / gprs
|
|
display
|
lcd + led status indicators
|
|
cooling method
|
smart forced air cooling system
|
|
operating temperature range
|
−25°c to +60°c
|
|
relative humidity
|
0–100% (non-condensing)
|
|
altitude
|
≤2000 m (derating above 2000 m)
|
|
noise level
|
<50 db
|
|
dimensions (w × h × d)
|
680 × 750 × 250 mm
|
|
weight
|
52 kg
|
|
installation type
|
wall-mounted / floor-mounted
|
|
warranty
|
10 years complete replacement warranty
|
With a wide DC input voltage range (180V–1100V), the Nexus 50kW supports modern 600W+ solar panels, enabling flexible configurations and higher system yields. The inverter is IP66-rated, making it suitable for outdoor installations under harsh environmental conditions.
For operational safety, it includes a built-in DC switch, Type II surge protection, and insulation monitoring, ensuring long-term stability and protection. Built-in Wi-Fi connectivity enables real-time remote monitoring, while smart cooling technology maintains efficiency even in extreme climates.
Backed by Crown Solar Energy’s 10-year complete replacement warranty, the Nexus 50kW On-Grid Inverter ensures dependable performance, safety, and exceptional value for high-capacity solar power systems.
