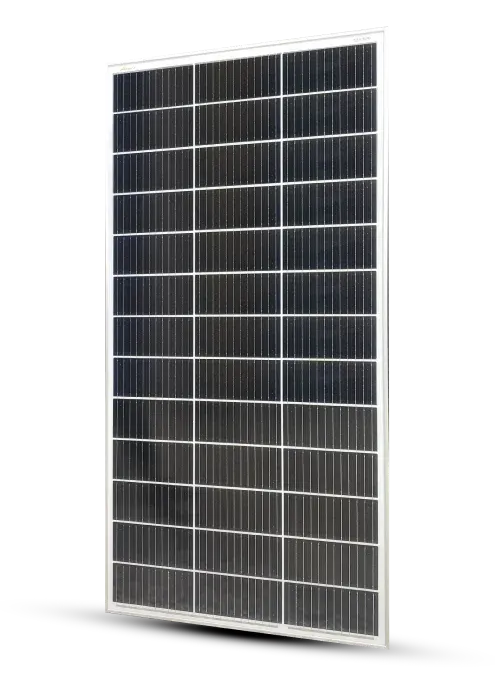

Crown VistaX TOPCon 620 Watt N-Type Solar Panel Price in Pakistan is Rs. 19,530/-. The Crown VistaX TOPCon 620 Watt N-Type Solar Panel is an advanced high-efficiency solar module engineered for maximum performance and reliability. Utilizing N-Type TOPCon (Tunnel Oxide Passivated Contact) technology, it achieves superior conversion efficiency, minimal degradation, and enhanced power generation even under low-light or high-temperature conditions. The panel features MBB (Multi-Busbar) half-cut cell design for improved current collection and reduced resistive losses, ensuring stable long-term output. Built with premium-grade materials and robust construction, the Crown VistaX 620W panel is ideal for residential, commercial, and large-scale solar projects, offering exceptional energy yield and extended durability.
Advanced N-Type TOPCon technology for higher efficiency and stability
MBB half-cut cells for better current collection and reduced losses
Excellent temperature and low-light performance
Low LID and PID, ensuring long-term reliability
Strong frame and high-transmission glass for durability
Compatible with high-voltage (1500V) systems
Ideal for residential, commercial, and utility-scale applications
Product Specifications
Type
bi-facial solar panel
maximum power (pmax)
620w
cell type
n-type topcon monocrystalline (mbb half-cut)
module efficiency
up to 23.0%
open circuit voltage (voc)
57.2v ± 3%
short circuit current (isc)
13.95a ± 3%
maximum power voltage (vmp)
48.6v ± 3%
maximum power current (imp)
12.76a ± 3%
number of cells
132 (6 × 22) half-cut
cell dimensions
182mm × 210mm
module dimensions
2384mm × 1303mm × 35mm
weight
33.5 kg
front glass
3.2mm high transmission tempered glass
frame material
anodized aluminum alloy
junction box
ip68 rated with 3 bypass diodes
connector type
mc4 compatible
cable length
1200mm (customizable)
operating temperature
-40°c to +85°c
maximum system voltage
1500v dc (iec/ul)
power tolerance
0 ~ +5w
temperature coefficient (pmax)
-0.29% / °c
mechanical load
5400 pa (snow) / 2400 pa (wind)
fire rating
class c
warranty
25 years linear power output warranty, 12 years product warranty
Product Details
Crown VistaX TOPCon 620 Watt N-Type Solar Panel Price in Pakistan is Rs. 19,530/-. The Crown VistaX TOPCon 620 Watt N-Type Solar Panel is an advanced high-efficiency solar module engineered for maximum performance and reliability. Utilizing N-Type TOPCon (Tunnel Oxide Passivated Contact) technology, it achieves superior conversion efficiency, minimal degradation, and enhanced power generation even under low-light or high-temperature conditions. The panel features MBB (Multi-Busbar) half-cut cell design for improved current collection and reduced resistive losses, ensuring stable long-term output. Built with premium-grade materials and robust construction, the Crown VistaX 620W panel is ideal for residential, commercial, and large-scale solar projects, offering exceptional energy yield and extended durability.
