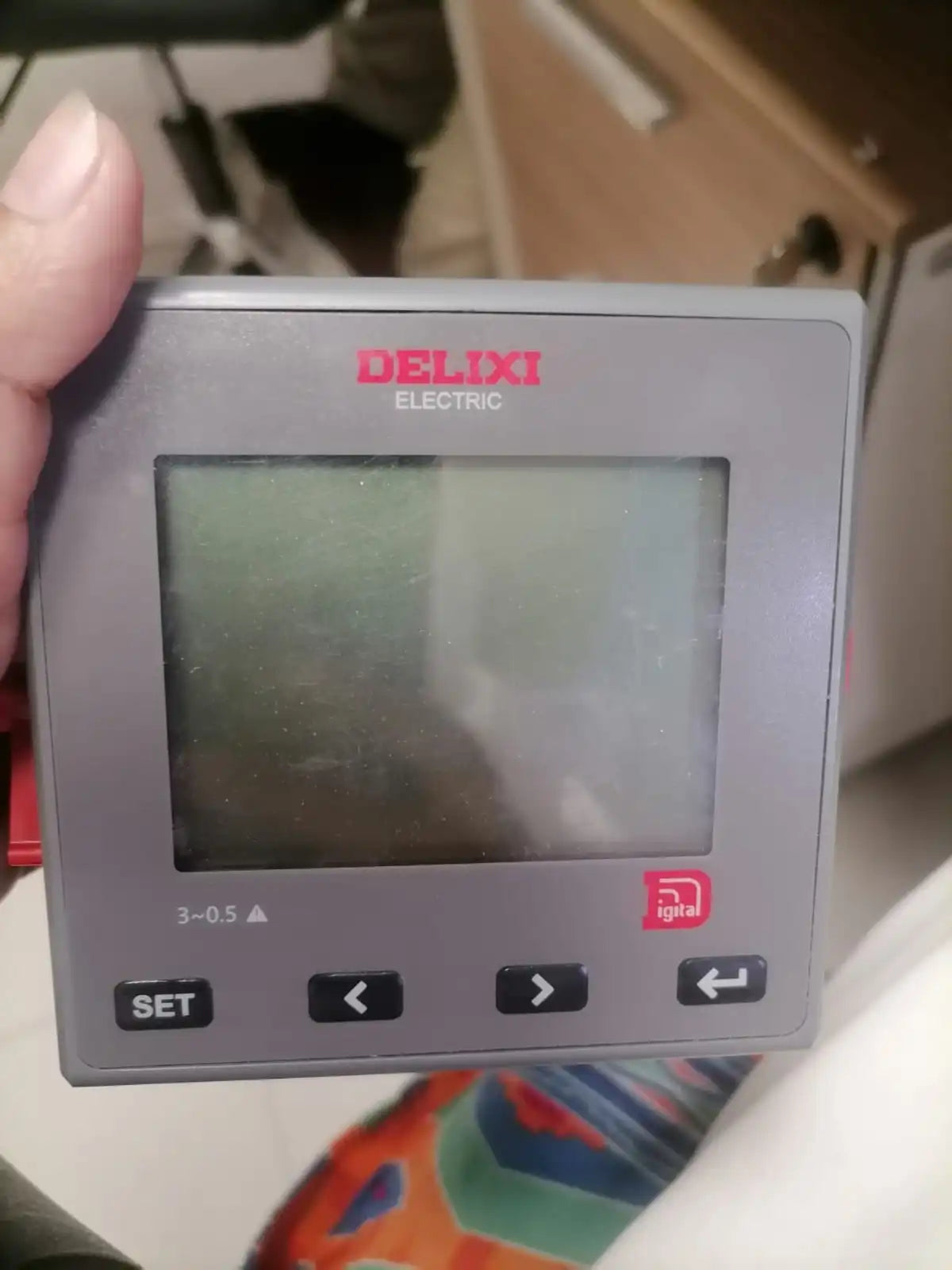

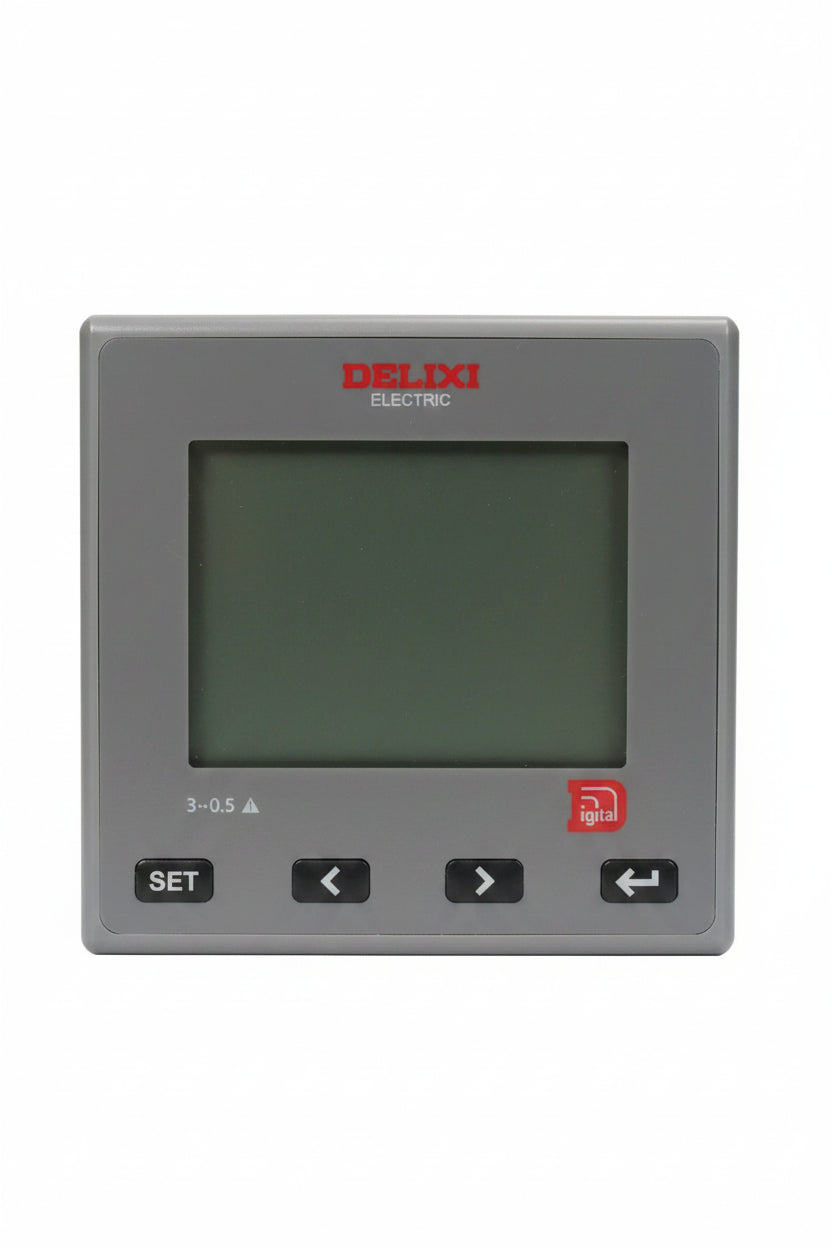

The Delixi 96EVT3YN2DIZU5A Energy Analyzer is a versatile and compact digital metering solution designed for precise monitoring of electrical parameters in industrial and commercial settings. With its 96x96 mm DIN panel-mount form factor, it offers a clear LCD display and supports two digital inputs for enhanced functionality.
2 Digital Inputs – For pulse counting or external triggers.
LCD Display – Clear, backlit screen for real-time data.
Comprehensive Measurements – Voltage, current, power, energy, frequency, and power factor.
Compact Size – Standard 96×96 mm panel mounting.
Reliable Accuracy – Class 1.5 measurement precision.
Product Specifications
Type
energy analyzer
display
backlit monochrome lcd with clear readout
digital inputs
2 (for pulse counting or alarm signaling)
analog inputs
typically supports voltage and current inputs via external cts (current transformers)
voltage
phase-to-neutral and phase-to-phase
current
per phase and total
power
active, reactive, and apparent
power factor
per phase and total
frequency
system frequency
energy
active and reactive energy (import/export)
accuracy class
typically class 1.5 for voltage and current measurements
mounting
flush-mounted, 96x96 mm panel
protection class
ip42
operating temperature
-10°c to +45°c
power supply
typically 230v ac
Product Details
The Delixi 96EVT3YN2DIZU5A Energy Analyzer is a versatile and compact digital metering solution designed for precise monitoring of electrical parameters in industrial and commercial settings. With its 96x96 mm DIN panel-mount form factor, it offers a clear LCD display and supports two digital inputs for enhanced functionality.
