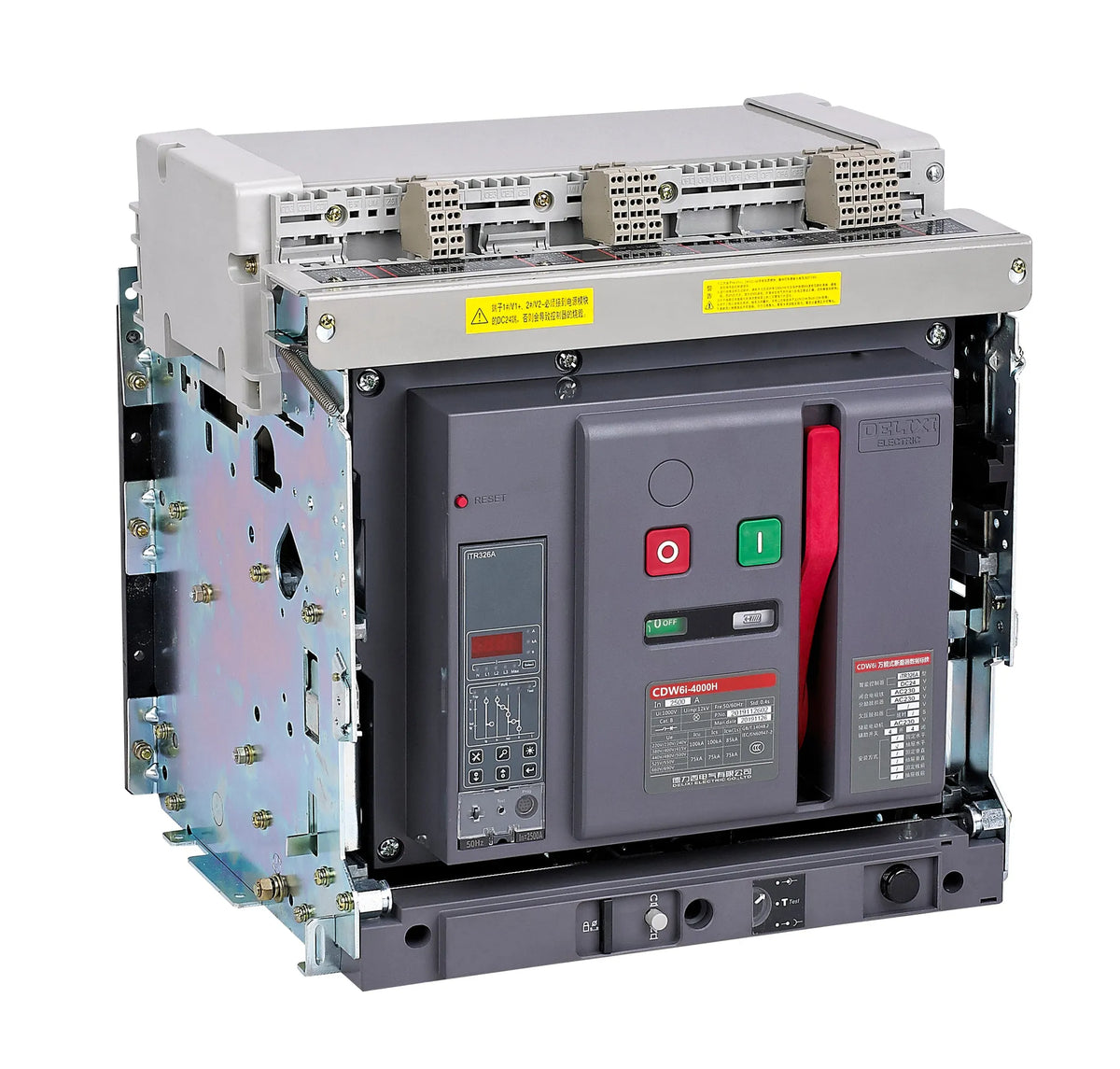

The Delixi CDW6i 3 Pole Air Circuit Breaker is a high-performance, reliable, and versatile circuit protection device designed for demanding power distribution applications. Engineered to operate in extreme environmental conditions ranging from -40°C to +70°C, it is ideal for use in industrial, commercial, and utility power systems.
With a rated current capacity from 400A to 6300A and a rated operating voltage of AC 220V to 1140V at 50Hz/60Hz, the CDW6i series offers robust protection and intelligent control features. It ensures safe and efficient power distribution and provides comprehensive protection against overloads, short circuits, and equipment faults.
The 3-pole configuration makes it particularly suitable for three-phase power systems, ensuring balanced load distribution and enhanced electrical safety.
Operates in extreme temperatures from -40°C to +70°C
Provides protection against overload, short circuit, undervoltage, and optional ground fault
Available with electronic or thermomagnetic trip units
Can be installed in fixed or withdrawable configurations
Supports both manual and remote electrical control
Optional Modbus/RS485 communication interface for smart monitoring
High durability with up to 10,000 mechanical and 2,000 electrical operations
Compliant with IEC 60947-2 and GB 14048.2 standards
Product Specifications
Type
air circuit breaker
pole configuration
3 pole
rated current (in)
400a – 6300a
rated operating voltage (ue)
ac 220v ~ 1140v
rated frequency
50hz / 60hz
rated insulation voltage (ui)
up to 1200v
utilization category
category b
operating temperature range
-40°c to +70°c
trip unit type
electronic / thermomagnetic (depending on configuration)
mounting type
fixed / withdrawable (based on model)
installation position
vertical / horizontal
protection functions
overload, short circuit, ground fault (optional), undervoltage
control method
manual / electrical remote control
communication interface
optional (modbus/rs485 for intelligent models)
standards compliance
iec 60947-2 / gb 14048.2
mechanical life
≥ 10,000 operations
electrical life
≥ 2,000 operations
Product Details
The Delixi CDW6i 3 Pole Air Circuit Breaker is a high-performance, reliable, and versatile circuit protection device designed for demanding power distribution applications. Engineered to operate in extreme environmental conditions ranging from -40°C to +70°C, it is ideal for use in industrial, commercial, and utility power systems.
With a rated current capacity from 400A to 6300A and a rated operating voltage of AC 220V to 1140V at 50Hz/60Hz, the CDW6i series offers robust protection and intelligent control features. It ensures safe and efficient power distribution and provides comprehensive protection against overloads, short circuits, and equipment faults.
The 3-pole configuration makes it particularly suitable for three-phase power systems, ensuring balanced load distribution and enhanced electrical safety.
