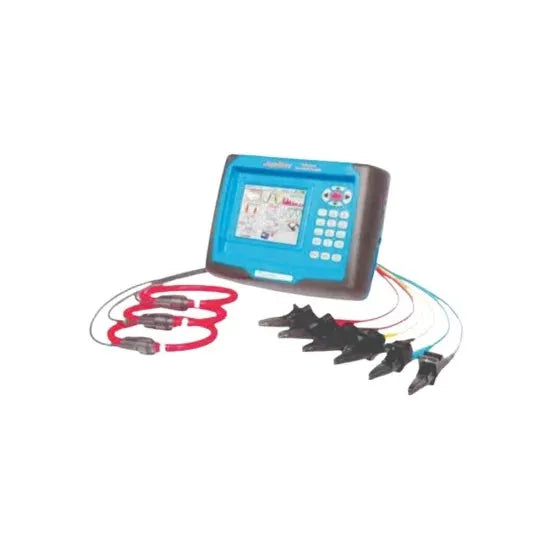

elcontrol Jupiter Power Quality Analyzer Price is Rs.3,888,000/-. The Elcontrol Jupiter Power Quality Analyzer is a high-end, multi-functional device engineered for advanced power quality analysis and energy monitoring in three-phase electrical systems. Designed for industrial, utility, and large commercial applications, the Jupiter delivers comprehensive insights into voltage, current, power, energy, frequency, and harmonics up to the 50th order. With high-speed data acquisition, waveform recording, and event logging, it enables precise diagnostics of electrical disturbances such as sags, swells, transients, and flickers. The Jupiter analyzer features a user-friendly interface, large color display, built-in memory, and remote communication capabilities, making it an indispensable tool for energy audits, compliance verification, and preventive maintenance.
Read More
Real-time monitoring of all major electrical parameters
Advanced harmonic analysis up to the 50th order
Built-in memory for extensive data logging
Communication via RS485 Modbus and optional Ethernet
Compatible with multiple types of current clamps
Detects dips, swells, flickers, transients, and interruptions
Ideal for power quality audits, diagnostics, and grid analysis
Large TFT color display with intuitive navigation
Records voltage/current waveforms and power events
Product Specifications
Type
power quality analyzer
function
power quality analyzer and energy monitor
communication
rs485 modbus rtu, optional ethernet
current range
via external clamps (typically 1a/5a to 3000a)
display
high-resolution tft color display
energy measurements
kwh, kvarh, kvah
event logging
sags, swells, transients, flicker, imbalance
frequency
45–65 hz
harmonic analysis
up to 50th order (voltage & current)
memory
large internal memory for long-term logging
mounting
portable or panel mount (depending on model)
operating temperature
-10°c to +55°c
power parameters
active, reactive, apparent power (kw, kvar, kva)
power supply
85–265v ac/dc universal input
system compatibility
three-phase 3/4 wire, single-phase
voltage range
up to 600v l-l
waveform capture
voltage & current waveform recording
Product Details
elcontrol Jupiter Power Quality Analyzer Price is Rs.3,888,000/-. The Elcontrol Jupiter Power Quality Analyzer is a high-end, multi-functional device engineered for advanced power quality analysis and energy monitoring in three-phase electrical systems. Designed for industrial, utility, and large commercial applications, the Jupiter delivers comprehensive insights into voltage, current, power, energy, frequency, and harmonics up to the 50th order. With high-speed data acquisition, waveform recording, and event logging, it enables precise diagnostics of electrical disturbances such as sags, swells, transients, and flickers. The Jupiter analyzer features a user-friendly interface, large color display, built-in memory, and remote communication capabilities, making it an indispensable tool for energy audits, compliance verification, and preventive maintenance.
