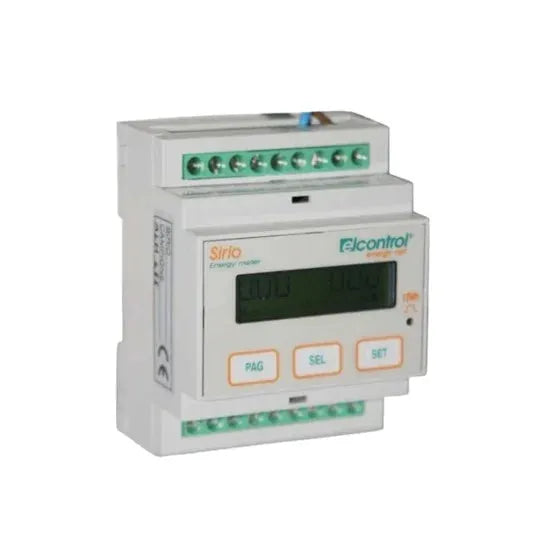

Elcontrol Sirio 485 ALM Electrical Energy Analyzer Price is Rs.187,200/-. The Elcontrol Sirio 485 ALM is a high-precision electrical energy analyzer designed for continuous monitoring of power and energy parameters in single-phase and three-phase systems. Equipped with RS-485 Modbus communication and integrated alarm functionalities, it offers real-time data acquisition, harmonic analysis, and energy consumption tracking for industrial and commercial applications. Its advanced capabilities make it ideal for energy audits, power quality assessment, and integration into building management systems (BMS) and SCADA platforms. Compact, reliable, and easy to install, the Sirio 485 ALM is a cost-effective solution for accurate energy monitoring and proactive system management.
Real-time measurement of voltage, current, power, energy, and frequency
Compatible with Elcontrol software for advanced analysis
DIN-rail mountable compact design
Measures active, reactive, and apparent power and energy
Power factor and demand monitoring
Programmable alarms for voltage, current, power, and energy thresholds
RS-485 Modbus RTU communication for remote monitoring
Suitable for single-phase and three-phase systems (3 or 4 wire)
Product Specifications
Type
energy analyzer
measurement system
single-phase / three-phase (3 or 4 wire)
alarms
configurable thresholds for key parameters
communication
rs-485 with modbus rtu
current input
via external cts (1a/5a)
display
alphanumeric or led (depending on model)
energy measurements
active (kwh), reactive (kvarh), apparent (kvah)
frequency
45–65 hz
mounting
din rail
operating temperature
-10°c to +50°c
power factor range
0.00 to ±1.00
power measurements
active (kw), reactive (kvar), apparent (kva)
voltage input
up to 600v ac (l-l)
Product Details
Elcontrol Sirio 485 ALM Electrical Energy Analyzer Price is Rs.187,200/-. The Elcontrol Sirio 485 ALM is a high-precision electrical energy analyzer designed for continuous monitoring of power and energy parameters in single-phase and three-phase systems. Equipped with RS-485 Modbus communication and integrated alarm functionalities, it offers real-time data acquisition, harmonic analysis, and energy consumption tracking for industrial and commercial applications. Its advanced capabilities make it ideal for energy audits, power quality assessment, and integration into building management systems (BMS) and SCADA platforms. Compact, reliable, and easy to install, the Sirio 485 ALM is a cost-effective solution for accurate energy monitoring and proactive system management.
