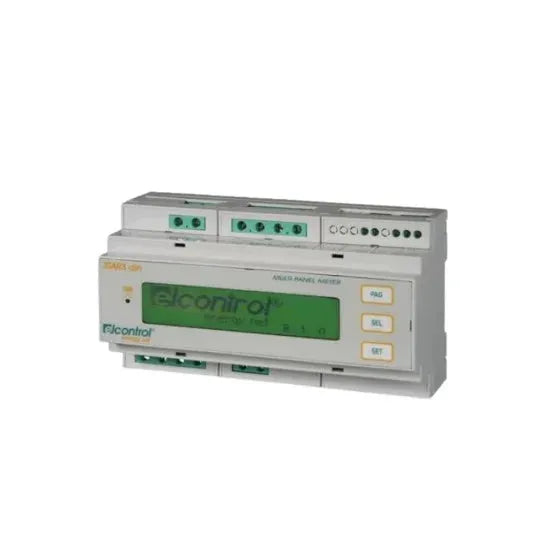

Elcontrol Star 3 DIN Digital Energy & Harmonic Analyzer Price is Rs.320,400/-. The Elcontrol Star3 DIN Digital Energy & Harmonic Analyzer is a high-performance, compact multifunction meter designed for DIN rail mounting. Ideal for monitoring electrical systems in industrial, commercial, or energy management environments, it offers advanced energy analysis, real-time harmonic detection, and precise measurement of voltage, current, power, and frequency. With its bright display and user-friendly interface, the Star3 DIN ensures efficient diagnostics, accurate billing data, and reliable monitoring for three-phase systems.
True RMS measurement for all electrical parameters
Class 0.5S (kWh) and Class 0.2 (V, A) accuracy
Configurable alarm outputs for critical event alerts
DIN rail mountable for easy panel integration
Dual energy counters with total and partial readings
Harmonic analysis up to 63rd order
High-contrast LCD display with intuitive navigation
Multi-tariff active and reactive energy metering
RS-485 communication with Modbus RTU protocol
Product Specifications
Type
digital analyzer
system type
3-phase, 4-wire or 3-wire
accuracy class
0.5s (energy), 0.2 (voltage/current)
communication
rs-485, modbus rtu
current input
via external cts (1a / 5a standard)
digital inputs/outputs
configurable alarms and pulse output
display
lcd with backlight
energy counters
active and reactive (multi-tariff)
frequency range
45 – 65 hz
harmonics detection
up to 63rd order
operating temperature
-10°c to +55°c
power supply
90 – 260 vac / vdc
voltage range
100 – 500 vac
Product Details
Elcontrol Star 3 DIN Digital Energy & Harmonic Analyzer Price is Rs.320,400/-. The Elcontrol Star3 DIN Digital Energy & Harmonic Analyzer is a high-performance, compact multifunction meter designed for DIN rail mounting. Ideal for monitoring electrical systems in industrial, commercial, or energy management environments, it offers advanced energy analysis, real-time harmonic detection, and precise measurement of voltage, current, power, and frequency. With its bright display and user-friendly interface, the Star3 DIN ensures efficient diagnostics, accurate billing data, and reliable monitoring for three-phase systems.
