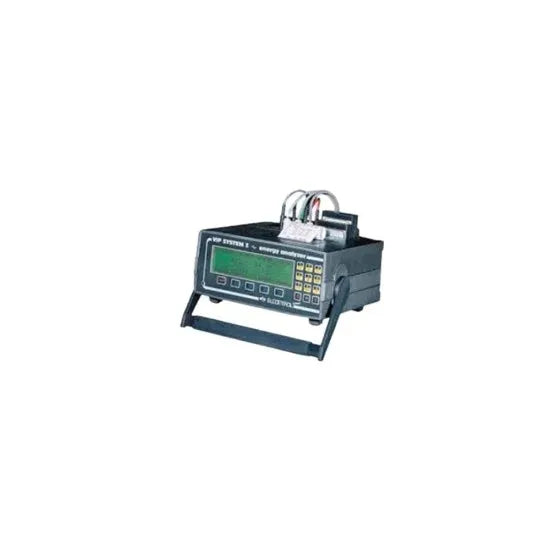

Elcontrol VIP System 3 Portable Digital Analyzer Price is Rs.2,520,000/-. The Elcontrol VIP System 3 is a professional-grade portable digital analyzer designed for comprehensive power quality and energy monitoring in industrial and commercial environments. This all-in-one instrument offers precise real-time analysis of voltage, current, power, energy, frequency, and harmonics. With its user-friendly interface, high-accuracy measurement, and advanced data logging, the VIP System 3 is ideal for energy audits, load studies, and detecting power quality issues such as voltage dips, swells, and harmonic distortions. Housed in a rugged, portable case, it’s perfect for field engineers and facility managers requiring flexible and reliable diagnostics.
Built-in RS-232/USB or RS-485 communication interface
Compatible with energy management software
Harmonic analysis up to the 63rd order
Inrush current capture and transient detection
Large backlit LCD screen with intuitive menu navigation
Multi-tariff energy metering with memory storage
Real-time analysis of voltage, current, power, and energy
True RMS measurements with high precision
Product Specifications
Type
digital analyzer
measurement type
true rms
accuracy class
0.5s for energy, 0.2 for voltage/current
current range
up to 3000 a (depending on clamps used)
display
high-contrast backlit lcd
frequency range
40 – 70 hz
harmonics
up to 63rd order
system type
1-phase, 3-phase 3/4 wire systems
voltage range
10 – 600 vac
Product Details
Elcontrol VIP System 3 Portable Digital Analyzer Price is Rs.2,520,000/-. The Elcontrol VIP System 3 is a professional-grade portable digital analyzer designed for comprehensive power quality and energy monitoring in industrial and commercial environments. This all-in-one instrument offers precise real-time analysis of voltage, current, power, energy, frequency, and harmonics. With its user-friendly interface, high-accuracy measurement, and advanced data logging, the VIP System 3 is ideal for energy audits, load studies, and detecting power quality issues such as voltage dips, swells, and harmonic distortions. Housed in a rugged, portable case, it’s perfect for field engineers and facility managers requiring flexible and reliable diagnostics.
