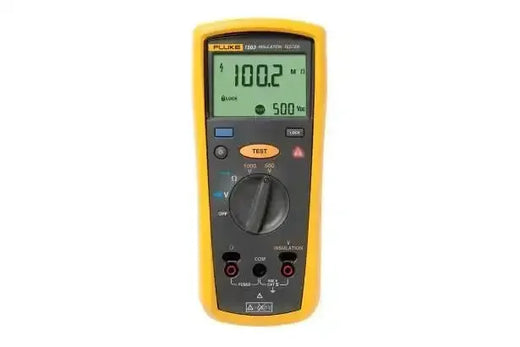

Fluke 1503 Insulation Resistance Meter Price In Pakistan
  • Fluke 1503 Insulation Resistance Meter Price In Pakistan
  • Fluke 1503 Insulation Resistance Meter
  • Fluke 1503 Insulation Resistance Meter
  • Fluke 1503 Insulation Resistance Meter
  • Fluke 1503 Insulation Resistance Meter Price In Pakistan

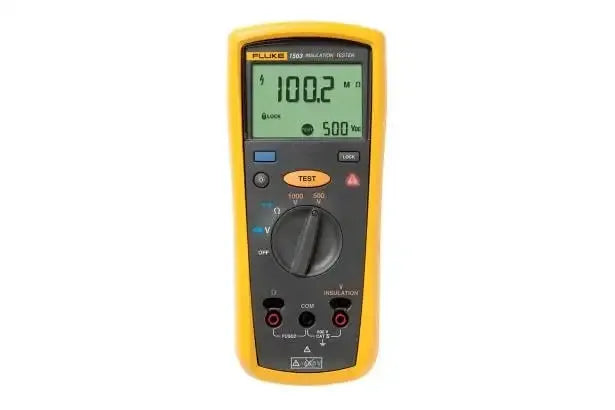

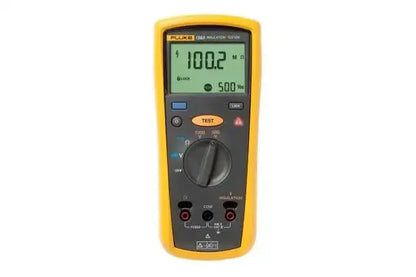

Fluke 1503 Insulation Resistance Meter
Availability: Out of stock

Fluke 1503 Insulation Resistance Meter

Product SKU: FLU_1503
Rs.87,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Type Digital Multimeters
Range 600.0 V
Resolution 0.1 V
50 Hz to 400 Hz ±(% of Rdg + Digits) ±(2% + 3)
Input impedance 3 MΩ (nominal), < 100 pF
Common mode rejection ratio (1 kΩ unbalanced) > 60 dB at DC, 50 or 60 Hz
Overload protection 600 V rms or DC
Maximum voltage applied to any terminal 600 V AC rms or DC
Storage temperature -40°C to 60°C (-40°F to 140°F)
Operating temperature -20°C to 55°C (-4°F to 131°F)
Temperature coefficient 0.05 x (specified accuracy) per °C for temperatures < 18°C or > 28°C (< 64°F or > 82°F)
Relative humidity 0% to 95% @ 10°C to 30°C (50°F to 86°F)
Vibration Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument
Shock 1 meter drop per IEC 61010-1 2nd Edition (1 meter drop test, six sides, oak floor)
Electromagnetic compatibility In an RF field of 3 V/M, accuracy = specified accuracy (EN 61326-1:1997)
Safety Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement category IV 600 V (CAT IV)
Certifications CSA per standard CSA/CAN C22.2 No. 61010.1-04; TUV per standard IEC/EN 61010-1 2nd Edition
Batteries Four AA batteries (NEDA 15A or IEC LR6)
Size (H x W x L) 5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in)
Weight 550 g (1.2 lb)

Key Features

Measures AC/DC voltage from 0.1 V to 600 V
Includes auto-discharge of capacitive voltage for added user protection
Provides lo-ohms earth-bond continuity (200 mA)
Simplifies repetitive or hard-to-reach testing with the remote test probe
Saves battery power with auto power off
Presents results on a large, backlit display
Features CAT IV 600 V overvoltage category rating
Comes with remote probe, test leads, test probes, alligator clips, and one-year warranty
Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
Runs on four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
Product Details Reviews Shipping & Returns User Manual

Fluke 1503 Insulation Resistance Meter

Fluke 1503 Insulation Resistance Meter

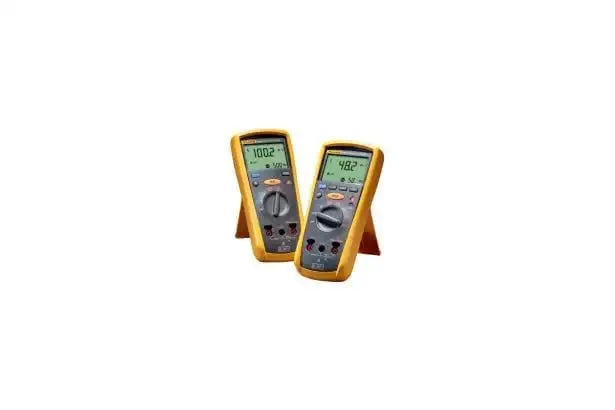

The Fluke 1503 is a great choice for basic residential and commercial electrical insulation testing. This rugged, compact tool fits in the palm of your hand. The 1503 is the same form factor as the Fluke 1507 but with a few less features. You can count on it to handle the most common tests at a most affordable price. Additional features, like the remote probe, reduce the time needed to perform repetitive testing.

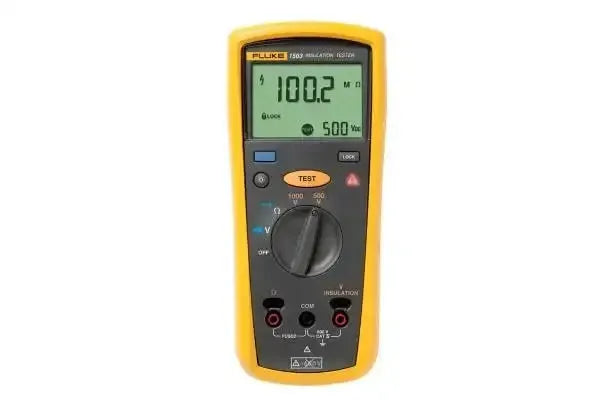

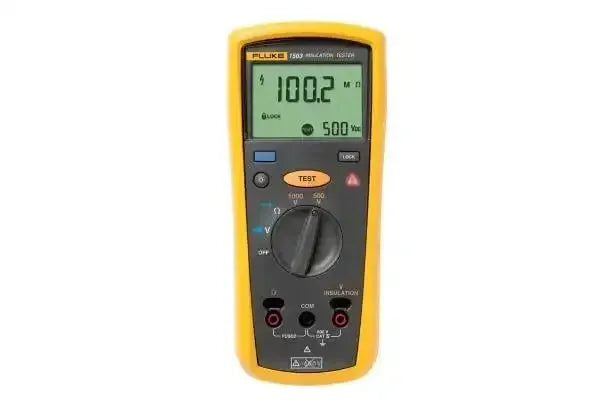

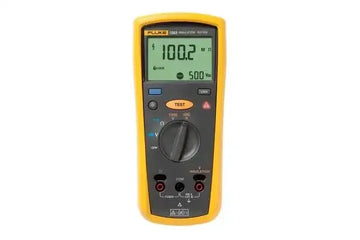

Fluke 1503 Insulation Resistance Meter Price In Pakistan
Fluke 1503 Insulation Resistance Meter
Looking to purchase Fluke 1503 Insulation Resistance Meter in bulk?
  • Purchase Item in Bulk Quantity
  • Get At Best Price For Your Business
No reviews yet. Be the first to review this product.

Shipping

We ship across Pakistan. Standard delivery takes 3–7 business days.

Returns

Easy 7-day return policy. Product must be unused and in original packaging.

📄
Download User Manual
Click here to download PDF
