Manual- and auto-ranging digital insulation multimeter measures insulation resistance, current, voltage, capacitance, frequency, resistan...
Show All Key Features

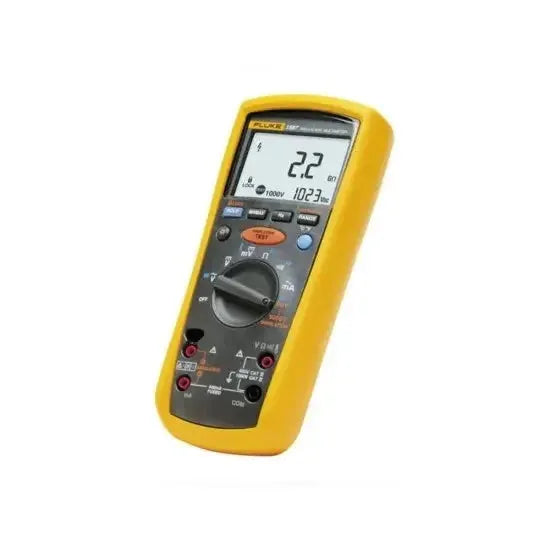

Fluke 1587 Insulation Multimeter Price In Pakistan Rs 109,000/-. The Fluke 1587 digital insulation multimeter (also known as a multitester) is a true RMS, auto- and manual-ranging meter insulation resistance, current, voltage, and resistance for testing line insulation on motors, generators, cables, and switch gear. The insulation test voltages of 50, 100, 250, 500 and 1000V measure resistance from 0.01 megohms to 2 gigohms. The meter also measures capacitance, frequency, and resistance. Temperature is measured using a K-type thermocouple (included). A diode test detects correct functioning of a circuit's diodes. A low-pass filter provides accurate AC voltage and AC frequency measurements on inverters and variable-frequency motor drives by blocking unwanted voltages. Live circuit detection increases user safety by preventing insulation tests when voltages exceed 30 volts, and auto-discharge of ca...
Manual- and auto-ranging digital insulation multimeter measures insulation resistance, current, voltage, capacitance, frequency, resistance, and temperature, and performs diode tests for testing line insulation on motors, generators, cables, and switch gear
True RMS meter provides accurate readings when measuring linear or nonlinear loads where the current or voltage has an undistorted or distorted waveform
Insulation test voltages of 50, 100, 250, 500, and 1000V and insulation measurement range of 0.01 megohms to 2 gigohms
Low-pass filter blocks unwanted voltages when measuring AC voltage and AC frequency to provide accurate measurements on inverters and variable-frequency motor drives
Ingress Protection certified IP40; European Conformity (CE) marking; UL 61010-1; ANSI/ISA S82.01-2004; CAN/CSA C22.2 No. 1010.1:2004; IEC safety standards 61010-1:1002 and 61010.1-04, IEC61557-1; IEC61557-2; and IEC/EN 61010-1, 2nd edition for Category III installations up to 1000V and Category IV installations up to 600V, and Pollution Degree 2
Live circuit detection prevents insulation test if voltage of more than 30 volts is detected
Auto-discharge of capacitive voltage for added user protection
AC/DC voltage, DC milliVolts, AC/DC milliamps, resistance, continuity
Testing for capacitance, diode, temperature, min/max, and frequency
Product Specifications
Type
digital multimeter
maximum capacitance
9999 microfarads
maximum frequency
99.99khz
insulation measurement range
0.01 megaohms to 2 gigohms
insulation test voltages
50v, 100v, 250v, 500v, 1000v
resistance
0.1 ohms to 50 megaohms
temperature probe and range
k-type thermocouple -40 to +537 degrees c/-40 to +998 degrees f
weight
550g
power supply
4 aa batteries (neda 15a or iec lr6)
dimension
5.0 x 10.0 x 20.3cm (h x w x d)
Product Details
Fluke 1587 Insulation Multimeter Price In Pakistan Rs 109,000/-. The Fluke 1587 digital insulation multimeter (also known as a multitester) is a true RMS, auto- and manual-ranging meter insulation resistance, current, voltage, and resistance for testing line insulation on motors, generators, cables, and switch gear. The insulation test voltages of 50, 100, 250, 500 and 1000V measure resistance from 0.01 megohms to 2 gigohms. The meter also measures capacitance, frequency, and resistance. Temperature is measured using a K-type thermocouple (included). A diode test detects correct functioning of a circuit's diodes. A low-pass filter provides accurate AC voltage and AC frequency measurements on inverters and variable-frequency motor drives by blocking unwanted voltages. Live circuit detection increases user safety by preventing insulation tests when voltages exceed 30 volts, and auto-discharge of capacitive voltage increases user protection. An audible continuity sensor confirms a circuit conducts electricity. The LCD is backlit for readability in low light. A Hold function freezes the reading on the display. An alarm sounds when the test leads are connected to the wrong jack for the measurement being taken. The unit automatically turns off after 20 minutes of nonuse to conserve battery life or can be disabled for extended readings, and a low-battery indicator signals when the meter's batteries need to be replaced. The meter included a set of detachable test leads, a remote probe, alligator clips, a hard case, and instructions.
