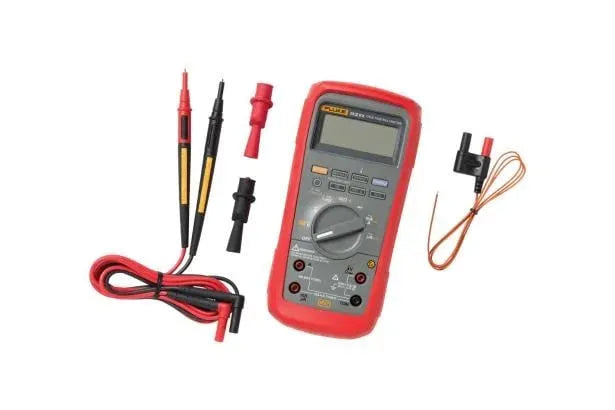

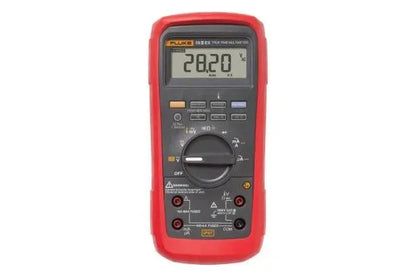

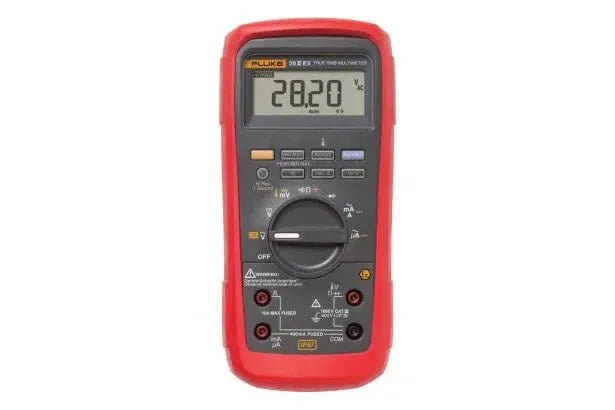

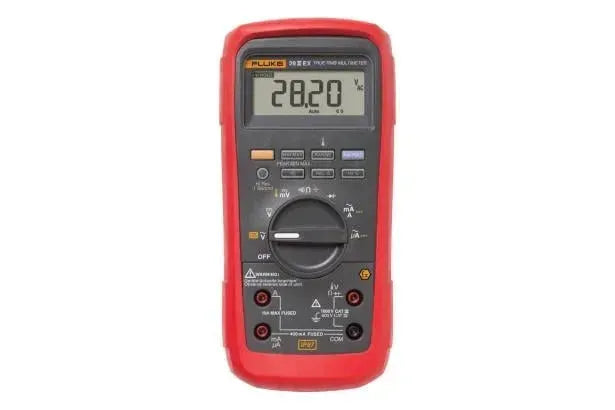

Fluke 28 II Ex Intrinsically Safe True RMS Digital Multimeter Price In Pakistan Rs 455,000/-.
Now there’s one intrinsically safe digital multimeter (DMM) you can use in IIC (gas) in Zones 1 and 2 and IIIC (dust) in Zones 21 and 22. Whether you work in petroleum, chemical, or pharmaceutical environments, all the test and troubleshooting power you need is packed into the most rugged intrinsically safe (IS) DMM Fluke has ever built. The Fluke 28 II Ex is also waterproof, dustproof, and drop-proof. You’ll be equipped to handle any situation, inside and outside of hazardous zones, without compromising compliance or measurement performance.
One tool equips you with all the testing and troubleshooting power you need wherever you go––inside or outside ATEX zones 1,2,21, or 22. No need to carry different meters for differen...
Withstands drops up to 10 ft or 3 m (with holster)
Dustproof per IEC 60529 IP6x
Waterproof per IEC 60529 IPx7
CAT III 1000 V, CAT IV 600 V
Reversible holster for added protection of the display when not in use
Product Specifications
Type
digital multimeter
display
lcd, with backlight
dc voltage
range
diode range
range
ac voltage
range
capacitance
range 10 nf to 9999 μf , accuracy
dc current
range 0.1 μa to 10 a , accuracy
resistance
range 0.1 ω to 50 mω , accuracy
ac current
range 0.1 μa to 10 a , accuracy
weight
698.5 g (1.54 lb)
dimension
(l x w x h) 6.35 x 10.0 x 19.81 cm (2.5 x 3.93 x 7.8 in)
temperature
range -200°c to +1090°c (-328°f to +1994°f) , accuracy
frequency
range
conductance
range 60.00 ns , accuracy
Product Details
Fluke 28 II Ex Intrinsically Safe True RMS Digital Multimeter Price In Pakistan Rs 455,000/-.
Now there’s one intrinsically safe digital multimeter (DMM) you can use in IIC (gas) in Zones 1 and 2 and IIIC (dust) in Zones 21 and 22. Whether you work in petroleum, chemical, or pharmaceutical environments, all the test and troubleshooting power you need is packed into the most rugged intrinsically safe (IS) DMM Fluke has ever built. The Fluke 28 II Ex is also waterproof, dustproof, and drop-proof. You’ll be equipped to handle any situation, inside and outside of hazardous zones, without compromising compliance or measurement performance.
One tool equips you with all the testing and troubleshooting power you need wherever you go––inside or outside ATEX zones 1,2,21, or 22. No need to carry different meters for different areas or worry about crossing through an Ex-required zone with a non-Ex-rated instrument.
4-1/2 digit mode for precise measurements (20,000 counts)
True-RMS ac voltage and current for accurate measurement on nonlinear signals
Measures up to 1000 V and 10A AC and DC (note that Ex zones require reduced measurements)
Low pass filter ensures accurate voltage and frequency measurements on variable speed motor drives (VSDs)
Frequency to 200 kHz and % duty cycle to help you diagnose VSDs and switching power supplies
Resistance, continuity and diode test
10,000 μF capacitance range for components and motor caps
Conductance measurements for high resistance or leakage tests
Min/Max-Average and Peak capture to record transients and variations automatically
Relative mode to remove test lead interference on resistance measurements
Auto and manual ranging for maximum flexibility
Input Alert protects you by chirping and flashing “Lead when leads are plugged into the wrong inputs
