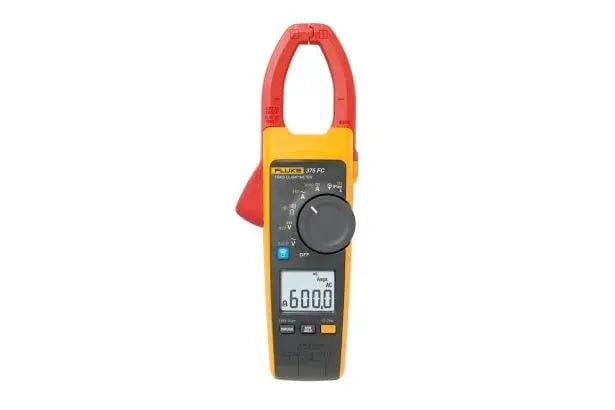

The Fluke 375 FC, part of the Fluke Connect family of wireless test tools, delivers high performance features and ease of use. It features a VFD low-pass filter for accurate motor drive measurements and wireless communications to transmit results to a smartphone via Fluke Connect.
The 375 FC offers most of the features of the Fluke 376 FC including compatibility with the iFlex flexible current probe but, unlike the 376 FC, it does not include the iFlex® probe in the package. You can measure AC and DC current up to 600 A and voltage up to 1000 V with the fixed jaw clamp. Or connect an optional iFlex® flexible current probe to expand your measurement range to 2500 A AC. The large diameter and flexible design of the iFlex probe make it easier to measure around large conductors in tight spaces or to access individual wires.
Using its Bluetooth connectivity to Apple and Android devices, you can read the 375 FC results a safe distance away on your smartp...
True-RMS technology ensures accurate readings on non-linear loads
Backlit display for clear readings in dark environments
Capacitance and frequency measurements for added versatility
CAT IV 600 V / CAT III 1000 V safety rated for industrial use
Compatible with iFlex® probe to measure up to 2500 A AC
Ergonomic, rugged design for reliable daily use
Ideal for commercial, HVAC, and electrical system diagnostics
Measures AC/DC current up to 600 A and voltage up to 1000 V
Min/Max/Average and Inrush functions for capturing signal variations
Wireless data transfer and logging via Fluke Connect app
Product Specifications
Type
clamp meter
ac current range
600 a (with clamp), 2500 a (with iflex)
ac/dc voltage range
1000 v
auto power off
yes
battery type
2 x aa
capacitance measurement
1000 µf
continuity detection
audible (<30 o)
dc current range
600 a
dimensions
249 x 85 x 45 mm
display
6000-count backlit lcd
frequency measurement
5 hz – 500 hz
inrush current measurement
yes
jaw opening
34 mm (1.34 in)
resistance measurement
up to 60 ko
safety rating
cat iv 600 v / cat iii 1000 v
wireless communication
fluke connect compatible
Product Details
The Fluke 375 FC, part of the Fluke Connect family of wireless test tools, delivers high performance features and ease of use. It features a VFD low-pass filter for accurate motor drive measurements and wireless communications to transmit results to a smartphone via Fluke Connect.
The 375 FC offers most of the features of the Fluke 376 FC including compatibility with the iFlex flexible current probe but, unlike the 376 FC, it does not include the iFlex® probe in the package. You can measure AC and DC current up to 600 A and voltage up to 1000 V with the fixed jaw clamp. Or connect an optional iFlex® flexible current probe to expand your measurement range to 2500 A AC. The large diameter and flexible design of the iFlex probe make it easier to measure around large conductors in tight spaces or to access individual wires.

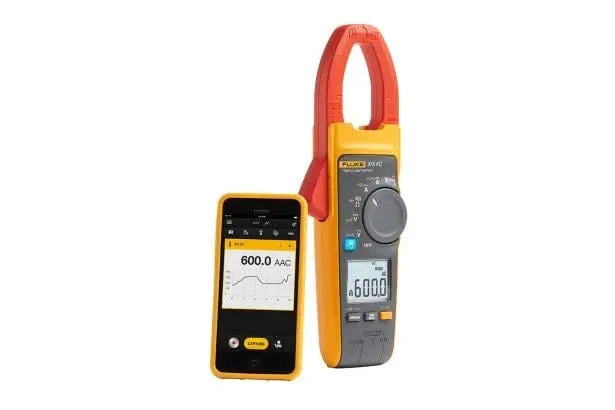

Using its Bluetooth connectivity to Apple and Android devices, you can read the 375 FC results a safe distance away on your smartphone, wearing less PPE. You can create and send reports in email right from the field and save results to the cloud. You can also converse with colleagues in real-time with ShareLive™ video call.
With True-RMS AC voltage and current measurements, the 375 enables you to accurately troubleshoot non-linear signals. And you can log and trend measurements to pinpoint intermittents while you are performing other tasks. The Fluke 375 FC Clamp Meter is the direct replacement for the Fluke 375 Clamp Meter.
