Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
<...
Show All Key Features

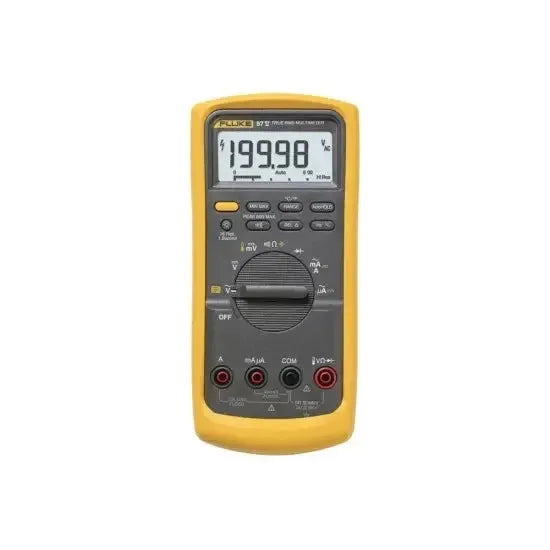

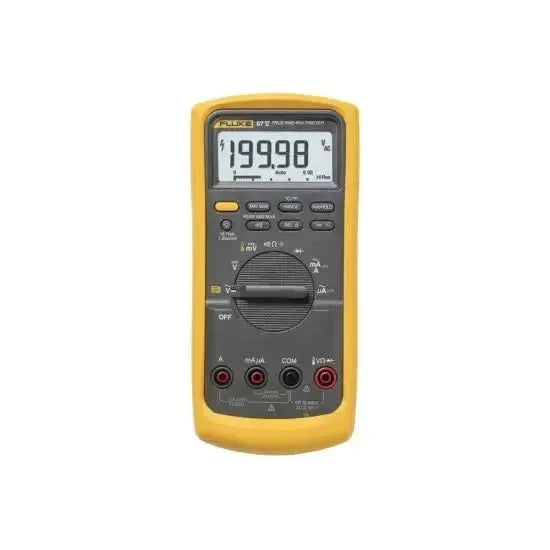

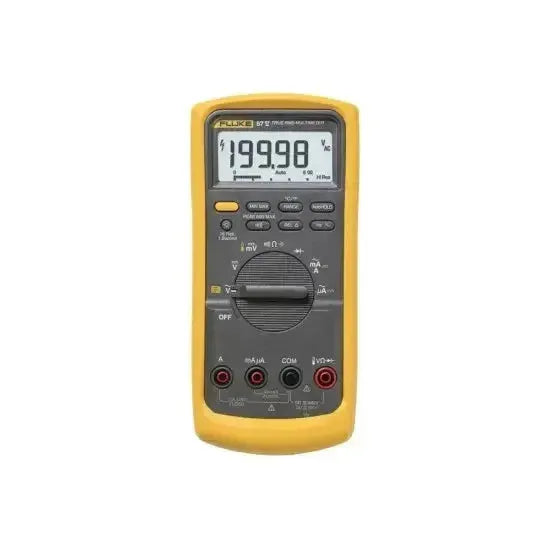

Fluke 87-V Multimeter Price In Pakistan Rs 147,000/-. When productivity is on the line and you need to solve problems fast, the Fluke 87V delivers the accuracy and advanced troubleshooting capabilities you need. Designed specifically to handle complex signals, the 87V industrial multimeter, allows you to gain productivity by taking the guesswork out of drive system troubleshooting even in loud, high energy, and high altitude locations.
Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
Optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks
Large digit display with bright, two-level backlight makes the 87V significantly easier to read than older models
True RMS AC voltage and current for accurate measurements on non-linear signals
Selectable filter for accurate voltage and frequency measurements on motor drives
0.05% DC accuracy
6000 counts, 3-3/4 digits
4-1/2 digit mode for precise measurements (20,000 counts)
Measure up to 1000 VAC and DC
Measure up to 10 A, 20 A for up to 30 seconds
Built-in thermometer lets you carry one less tool (TC probe included)
Frequency to 200 kHz and % duty cycle
Resistance, continuity and diode test
10,000 µF capacitance range for components and motor caps
Min/Max-Average recording with Min/Max Alert to capture variations automatically
Peak capture to record transients as fast as 250 µs
Relative mode to remove test lead interference from low ohms measurements
Auto and manual ranging for maximum flexibility
Touch Hold to capture stable readings avoiding noisy signals
Large display digits and two-level bright white backlight for increased visibility
Analog bar graph for fast changing or unstable signals
Input Alert provides audible warning against wrong use of input jacks
Improved selectable sleep mode for long battery life
Access door for fast battery changes without breaking the calibration seal
Classic design with new removable holster with built-in test lead and probe storage
Product Specifications
Type
digital multimeter
humidity
0% – 90% (0°c – 35°c) 0% – 70% (35°c – 55°c)
storage temperature
–40°c to + 60°c
operating temperature
–20°c to + 55°c
weight
355 g 624 g – with holster
dimension
201 x 98 x 52 mm (with holster)
Product Details
Fluke 87-V Multimeter Price In Pakistan Rs 147,000/-. When productivity is on the line and you need to solve problems fast, the Fluke 87V delivers the accuracy and advanced troubleshooting capabilities you need. Designed specifically to handle complex signals, the 87V industrial multimeter, allows you to gain productivity by taking the guesswork out of drive system troubleshooting even in loud, high energy, and high altitude locations.
