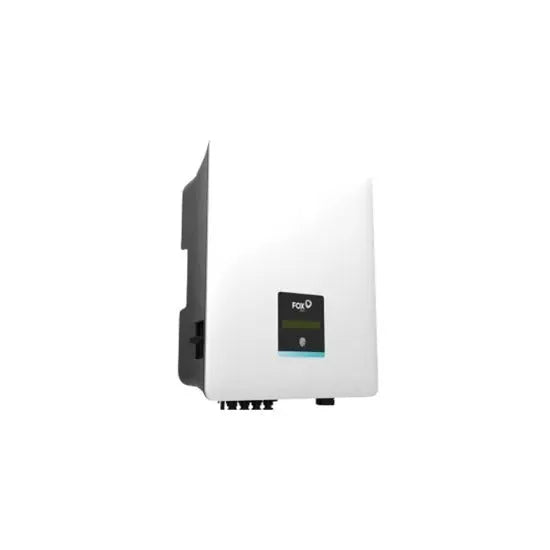

Fox 20kw On Grid Solar Inverter Price in Pakistan is Rs. Inquiry/-. The Fox 25kw On Grid Solar Inverter features a transformerless design and IP65 protection, ensuring efficient power conversion and resilience against harsh conditions. With a fan cooling method and a wide MPPT operating voltage range (140-1000V), it maintains optimal performance. It supports three-phase installations and offers a maximum input power of 37500W. Weighing just 21kg and with compact dimensions (370 x 480 x 183.5mm), it's lightweight and space-saving for easy installation.
Transformerless topology: Efficient power conversion.
IP65 protection: Withstands harsh environments.
Fan cooling method: Maintains optimal temperature.
Wide MPPT range: Flexibility in input voltage.
Maximum input power: Handles up to 37500W.
Three-phase compatibility: Suitable for diverse setups.
Product Specifications
Type
on grid solar inverter
topology
transformerless
cooling method
fan
protection degree
ip65
rated input voltage
140 v
max input current
28 a
max input voltage
1100 v
maximum input power
37500 w
mppt operating voltage range
140 - 1000 v
phase
three phase
weight
21 kg
dimension
370 x 480 x 183.5mm
Product Details
Fox 20kw On Grid Solar Inverter Price in Pakistan is Rs. Inquiry/-. The Fox 25kw On Grid Solar Inverter features a transformerless design and IP65 protection, ensuring efficient power conversion and resilience against harsh conditions. With a fan cooling method and a wide MPPT operating voltage range (140-1000V), it maintains optimal performance. It supports three-phase installations and offers a maximum input power of 37500W. Weighing just 21kg and with compact dimensions (370 x 480 x 183.5mm), it's lightweight and space-saving for easy installation.
