Fuji BW125-RAG MCCB Breaker Price in Pakistan is Rs. 58,000/-.

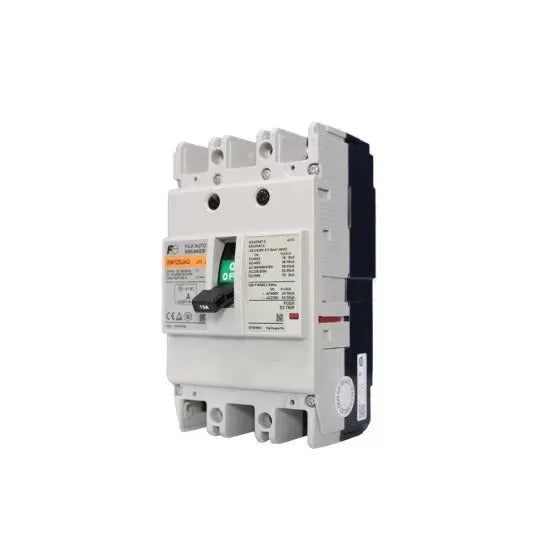

Introducing the Fuji BW125-RAG 3 Pole Molded Case Circuit Breaker by Fuji Electric, featuring a G-twin standard design. This MCCB offers reliable protection with its front mounting and fixed-type construction. Rated for 125A/125AT, it boasts a high short circuit breaking capacity of 30kA at 400Vac. Equipped with a thermal-magnetic trip unit and line protection, it ensures comprehensive security. With front connections and lugs terminals, installation is made easy. Ideal for various applications requiring robust circuit protection.
Easy Installation: Front mounting design for straightforward setup.
High Capacity: Rated 125A for demanding usage scenarios.
Robust Safety: Breaks short circuits up to 30kA at 400Vac.
Comprehensive Security: Equipped with a thermal-magnetic trip unit and line protection.
Convenient Connectivity: Front connections and lugs terminals for easy wiring.
Product Specifications
Function
moulded case circuit breaker (mccb) / auto breaker
height
155 mm
depth
95 mm
weight
1200 g
mounting mode
front mounting
terminal type
lugs
frame current rating
125 af
rated impulse voltage
6 kv
rated insulation voltage
690 v (dc) 250 v
rated voltage (ac)
690 v
rated voltage (dc)
250 v
trip current rating
40 at
compliant with standard
iec60947-2 jis c8201-2-1 gb14048.2
connection type
fixed front connection
poles description
3 pole(s)
protected poles description
3 pole(s)
width
90 mm
protection type
line protection thermal protection (overload) magnetic protection (short-circuit)
Product Details
Fuji BW125-RAG MCCB Breaker Price in Pakistan is Rs. 58,000/-.
Introducing the Fuji BW125-RAG 3 Pole Molded Case Circuit Breaker by Fuji Electric, featuring a G-twin standard design. This MCCB offers reliable protection with its front mounting and fixed-type construction. Rated for 125A/125AT, it boasts a high short circuit breaking capacity of 30kA at 400Vac. Equipped with a thermal-magnetic trip unit and line protection, it ensures comprehensive security. With front connections and lugs terminals, installation is made easy. Ideal for various applications requiring robust circuit protection.
