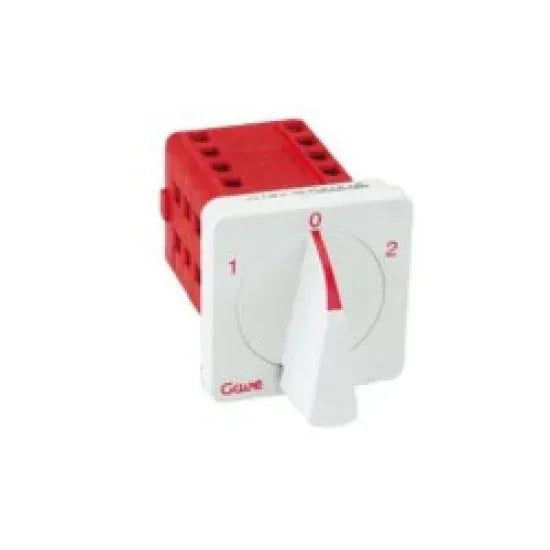

Gave A-356B 3100 4P 32Amp Changeover Switch Price is Rs.39,600/-. The Gave A-356B 3100 is a robust 4-pole manual changeover switch rated at 32A, designed for safely switching between two power sources in single-phase or three-phase electrical systems. With its 3-position (I–0–II) rotary operation, this changeover switch is ideal for applications requiring manual power transfer—such as between utility and generator sources or backup systems. Built to deliver high performance and safety, it features a durable cam mechanism, flame-retardant enclosure, and smooth rotary movement for secure, long-term use in residential, commercial, or industrial panels.
4-pole (4P) configuration for full circuit switching
Compact design for easy panel integration
Flame-retardant housing ensures safe operation
Ideal for use in control panels, distribution boards, and gensets
Manual source selection between mains and generator
Rated for up to 32A continuous load
Smooth rotary cam action with firm detents
Product Specifications
Type
changeover switch
connection type
screw terminals
function
manual transfer between two power sources
housing material
flame-retardant thermoplastic
mounting type
panel mount
number of poles
4p (four-pole)
operating temperature
-25°c to +55°c
protection degree
ip20 (rear), ip65 (front with gasket)
rated current
32a
rated voltage
up to 690v ac
switching mechanism
rotary cam switch
switching positions
3 (i – 0 – ii)
Product Details
Gave A-356B 3100 4P 32Amp Changeover Switch Price is Rs.39,600/-. The Gave A-356B 3100 is a robust 4-pole manual changeover switch rated at 32A, designed for safely switching between two power sources in single-phase or three-phase electrical systems. With its 3-position (I–0–II) rotary operation, this changeover switch is ideal for applications requiring manual power transfer—such as between utility and generator sources or backup systems. Built to deliver high performance and safety, it features a durable cam mechanism, flame-retardant enclosure, and smooth rotary movement for secure, long-term use in residential, commercial, or industrial panels.
