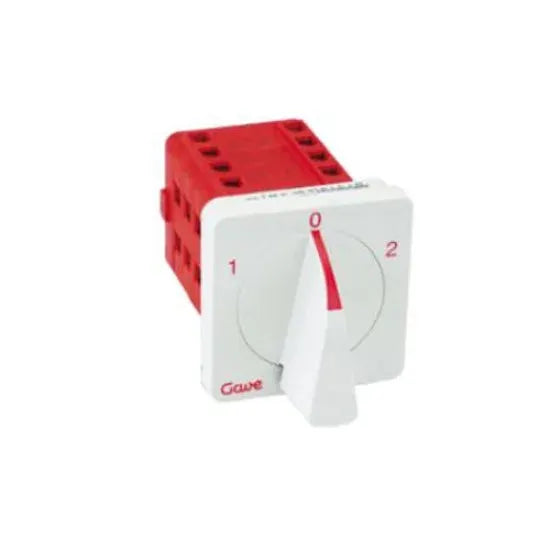

Gave A-356B 6100 4P 63Amp Changeover Switch Price is Rs.79,200/-. The Gave A-356B 6100 is a heavy-duty 4-pole manual changeover switch rated at 63 Amps, designed for safely switching between two power sources in single-phase or three-phase systems. With a 3-position rotary configuration (I – 0 – II), it provides reliable manual control for transferring loads between mains and generator supplies. Ideal for use in industrial, commercial, or large residential installations, this switch offers excellent durability, safe operation, and straightforward panel integration. Its flame-retardant housing and compliance with IEC standards ensure long-lasting and secure power management.
4-pole (4P) design supports full circuit isolation
Central OFF position ensures safe disconnection
Durable, flame-retardant thermoplastic housing
High load handling capacity up to 63 Amps
Manual transfer between mains and generator or other power sources
Smooth and reliable rotary cam mechanism
Suitable for control panels, ATS bypass, and generator panels
Product Specifications
Type
changeover switch
connection type
screw terminals
function
manual load transfer between two power sources
housing material
flame-retardant thermoplastic
mounting type
panel mount
operating temperature
-25°c to +55°c
poles
4p (four pole)
positions
3 (i – 0 – ii)
protection degree
ip20 (rear), ip65 (front with sealing gasket)
rated current
63a
rated voltage
up to 690v ac
switching mechanism
rotary cam switch
Product Details
Gave A-356B 6100 4P 63Amp Changeover Switch Price is Rs.79,200/-. The Gave A-356B 6100 is a heavy-duty 4-pole manual changeover switch rated at 63 Amps, designed for safely switching between two power sources in single-phase or three-phase systems. With a 3-position rotary configuration (I – 0 – II), it provides reliable manual control for transferring loads between mains and generator supplies. Ideal for use in industrial, commercial, or large residential installations, this switch offers excellent durability, safe operation, and straightforward panel integration. Its flame-retardant housing and compliance with IEC standards ensure long-lasting and secure power management.
