Goodwe 10kw Solar Inverter Price in Pakistan is Rs. Inquiry/-.

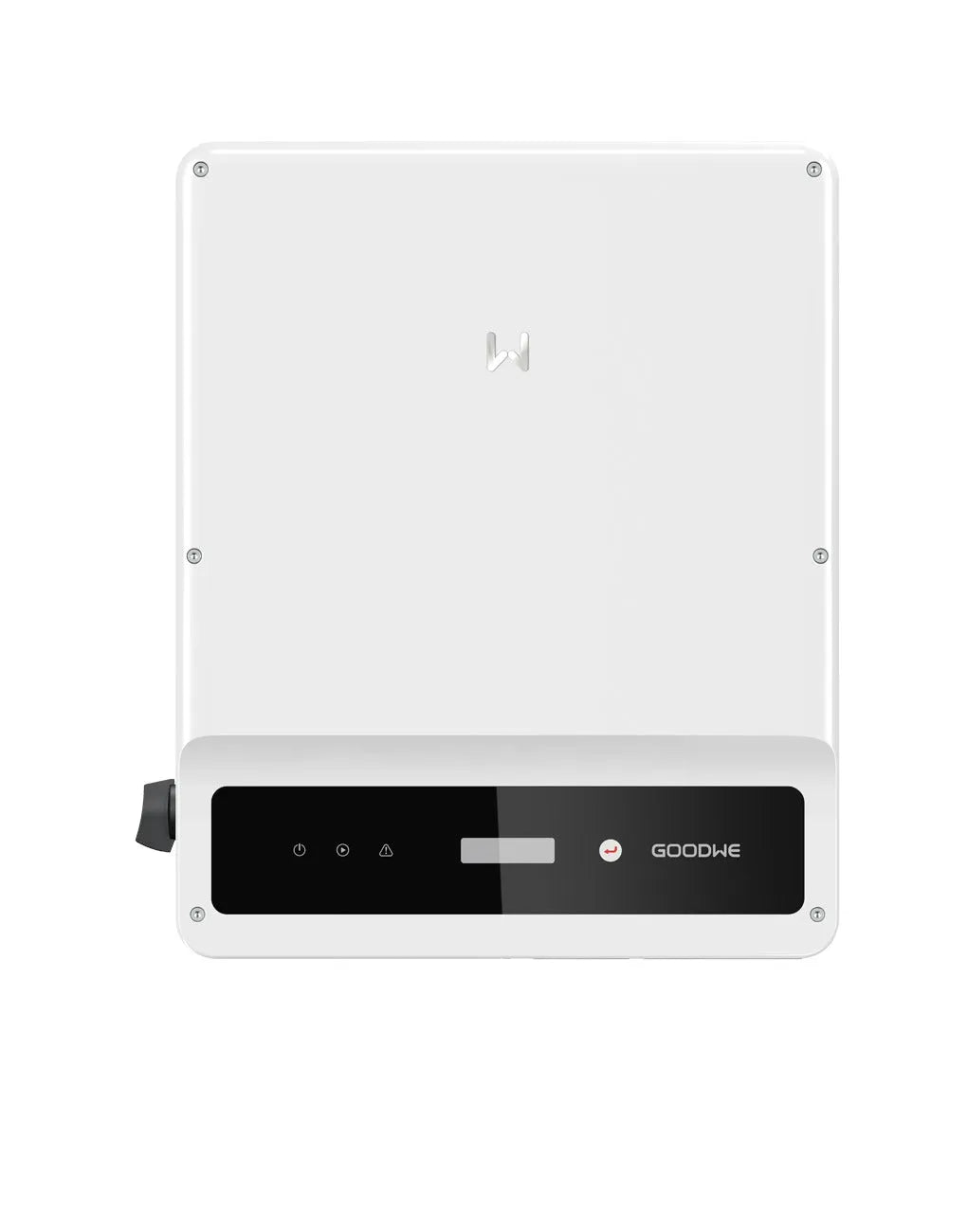

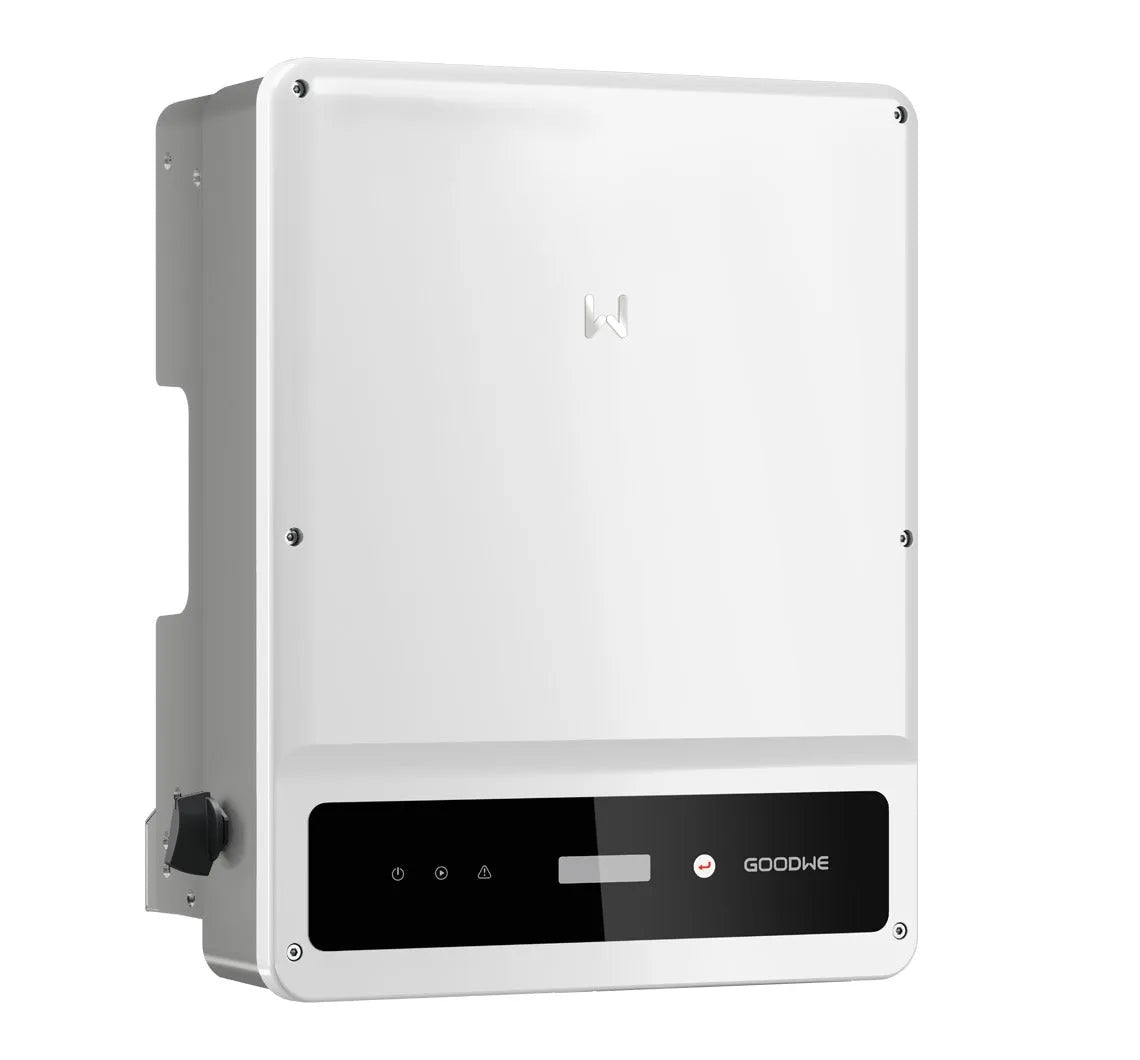

The GoodWe 10kW SDT G2 PLUS+ Series inverter is specially designed for three-phase residential and small commercial projects. The integrated features of high efficiency allow for optimized power generation during the inverter's service cycle. With its lightweight and easy-to-install design, the SDT G2 inverter offers comfort and great convenience for operators and installers. Users can also take all-around smart control of energy management utilizing the featuring 24-hour load consumption monitoring enabled by GoodWe HK3000**1. Meet the perfect choice of maximum energy yield for residential and small-scale commercial usage.
Optimized power generation for maximum energy yield.
Easy to install and handle.
Ideal for residential and small commercial projects.
Real-time load consumption tracking with GoodWe HK3000**.
Product Specifications
Max.input voltage (v)
1100
mppt operating voltage range (v)
140 ~ 950
start-up voltage (v)
180
nominal input voltage (v)
620
max. input current per mppt (a)
15
max. short circuit current per mppt (a)
18.7
number of mpp trackers
2
number of strings per mppt
1
nominal output power (w)
10000
nominal output apparent power (va)
10000
max. ac active power (w)
11000
max. ac apparent power (va)
11000
nominal output voltage (v)
415
output voltage range (v)
180 ~ 270
nominal ac grid frequency (hz)
50 / 60
ac grid frequency range (hz)
45 ~ 55
max. output current (a)
16.0
power factor
~1 (adjustable from 0.8 leading to 0.8 lagging)
max. total harmonic distortion
<3%
max. efficiency
98.3%
european efficiency
97.6%
Product Details
Goodwe 10kw Solar Inverter Price in Pakistan is Rs. Inquiry/-.
The GoodWe 10kW SDT G2 PLUS+ Series inverter is specially designed for three-phase residential and small commercial projects. The integrated features of high efficiency allow for optimized power generation during the inverter's service cycle. With its lightweight and easy-to-install design, the SDT G2 inverter offers comfort and great convenience for operators and installers. Users can also take all-around smart control of energy management utilizing the featuring 24-hour load consumption monitoring enabled by GoodWe HK3000**1. Meet the perfect choice of maximum energy yield for residential and small-scale commercial usage.
