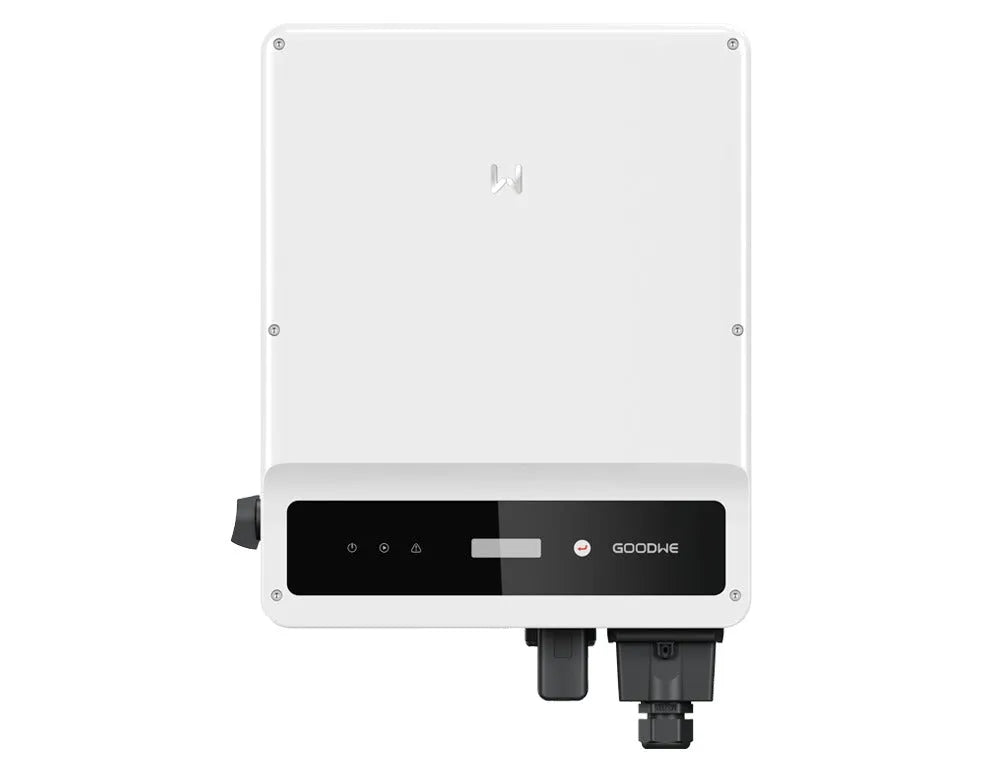

The Goodwe 12kW On-Grid Solar Inverter is a high-performance solution for solar energy systems. With a nominal output power and apparent power of 12000W and 12000VA respectively, it efficiently converts solar energy into usable electricity. It optimizes power generation even in varying conditions, featuring a maximum input voltage of 1100V and an MPPT operating voltage range of 140 ~ 950V. Its start-up voltage of 180V ensures quick and reliable operation. Equipped with smart control and monitoring capabilities, including Smart Shadow Scan with adjustable intervals and multi-protocol compatibility, it allows seamless integration into smart home systems for enhanced efficiency and convenience.
Smart Shadow Scan with an adjustable scan interval
Multi-protocol compatibility for smart home integration
High Generation to Cut Bills
Up to 200% DC input oversizing & 110% AC output overloading
Up to 16 A max. DC input current per string
Superb Safety & Reliability
Optional AFCI
Optional exchangeable DC Type II SPD & SPD failure alarm
Friendly & Thoughtful Design
Fanless design for quiet operations
Elegant and compact design
Product Specifications
Max. input voltage (v)
1100
mppt operating voltage range (v)
140 ~ 950
start-up voltage(v)
180
nominal input voltage (v)
620
max. input current per mppt (a)
30
max. short circuit current per mppt(a)
37.5
number of mpp trackers
2
number of strings per mppt
2
nominal output power (w)
12000
nominal output apparent power (va)
12000
max. ac active power (w)
13200
max. ac apparent power (va)
13200
nominal output voltage (v)
380 / 400/ 415, 3l / n / pe
nominal ac grid frequency (hz)
50 / 60
max output current (a)
19.1
power factor
~1 (adjustable from 0.8 leading to 0.8 lagging)
max. total harmonic distortion
< 3%
max. efficiency
98.4 %
european efficiency
97.8 %
dc surge protection
type ii
ac surge protection
type iii\
operating temperature range
relative humidity
0 ~ 100 %
max. operating altitude (m)
4000
cooling method
smart fan cooling
display
led, lcd (optional, wlan + app)
communication
rs485, wifi lan, or 4g (optional)
weight (kg)
23.5
dimension (w x h x d mm)
415 x 511 x 198
noise emission (db)
< 45
topology
non–isolated
self-consumption at night (w)
< 1
ingress protection rating
ip65
dc connector mc4
(4 ~ 6 mm²)
ac connector
ot terminal
Product Details
The Goodwe 12kW On-Grid Solar Inverter is a high-performance solution for solar energy systems. With a nominal output power and apparent power of 12000W and 12000VA respectively, it efficiently converts solar energy into usable electricity. It optimizes power generation even in varying conditions, featuring a maximum input voltage of 1100V and an MPPT operating voltage range of 140 ~ 950V. Its start-up voltage of 180V ensures quick and reliable operation. Equipped with smart control and monitoring capabilities, including Smart Shadow Scan with adjustable intervals and multi-protocol compatibility, it allows seamless integration into smart home systems for enhanced efficiency and convenience.
