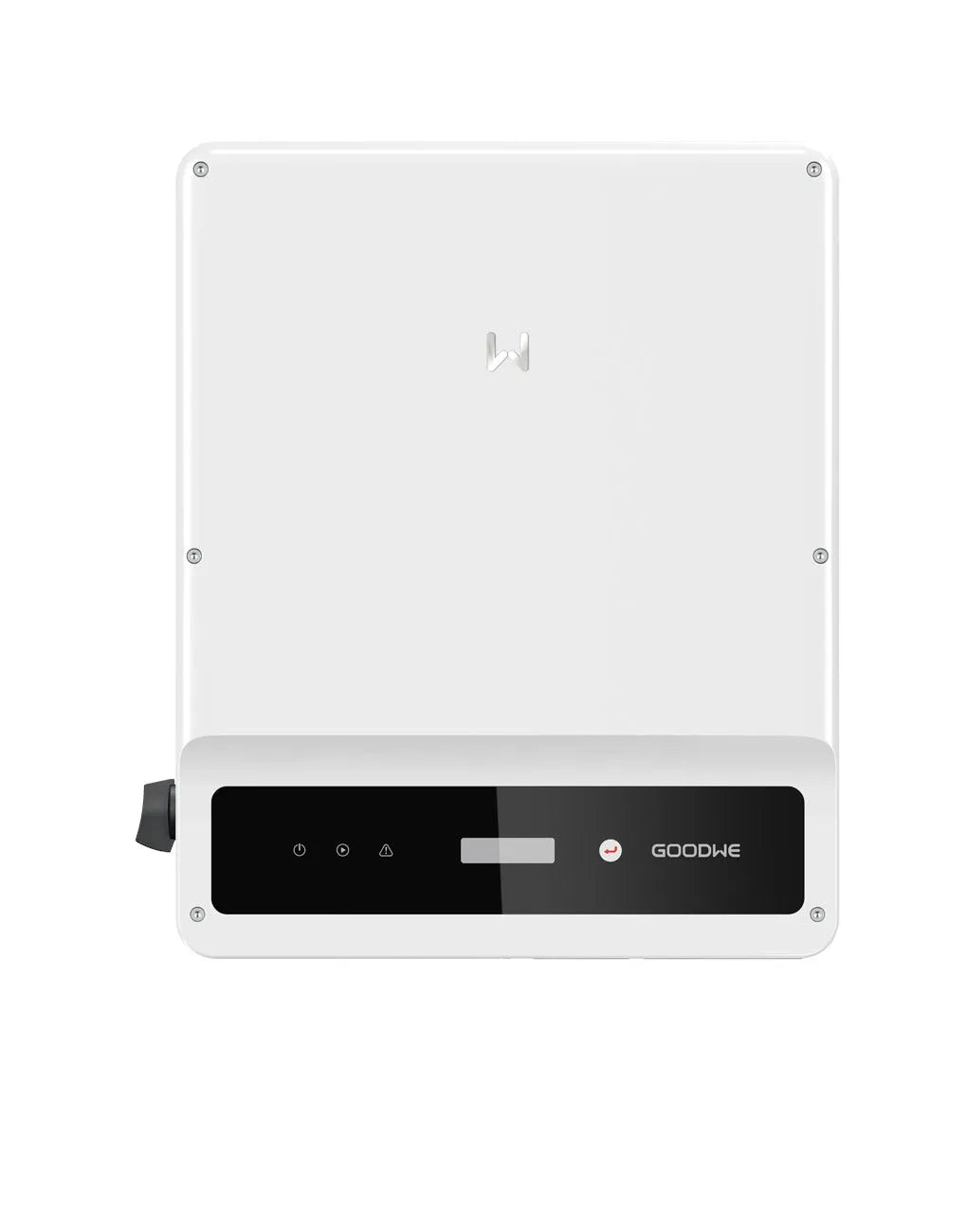

The GoodWe 20Kw SDT G2 PLUS+ Series inverter is specially designed for three-phase residential and small commercial projects. The integrated features of high efficiency allow for optimized power generation during the inverter's service cycle. With its lightweight and easy-to-install design, the SDT G2 inverter offers comfort and great convenience for operators and installers. Users can also take all-around smart control of energy management utilizing the featuring 24-hour load consumption monitoring enabled by GoodWe HK3000**1. Meet the perfect choice of maximum energy yield for residential and small-scale commercial usage.
Optimized power generation for maximum energy yield.
Easy to install and handle.
Ideal for residential and small commercial projects.
Real-time load consumption tracking with GoodWe HK3000**.
Product Specifications
Max.input voltage (v)
1100
mppt operating voltage range (v)
140 ~ 950
start-up voltage (v)
180
nominal input voltage (v)
620
max. input current per mppt (a)
30
max. short circuit current per mppt (a)
37.5
number of mpp trackers
2
number of strings per mppt
2
nominal output power (w)
20000
nominal output apparent power (va)
20000
max. ac active power (w)
22000
max. ac apparent power (va)
22000
nominal output voltage (v)
380 / 400 / 415, 3l / n / pe
output voltage range (v)
180 ~ 270
nominal ac grid frequency (hz)
50 / 60
ac grid frequency range (hz)
55 ~ 65
max. output current (a)
32.0
power factor
~1 (adjustable from 0.8 leading to 0.8 lagging)
max. total harmonic distortion
<3%
max. efficiency
98.4%
european efficiency
97.8%
Product Details
The GoodWe 20Kw SDT G2 PLUS+ Series inverter is specially designed for three-phase residential and small commercial projects. The integrated features of high efficiency allow for optimized power generation during the inverter's service cycle. With its lightweight and easy-to-install design, the SDT G2 inverter offers comfort and great convenience for operators and installers. Users can also take all-around smart control of energy management utilizing the featuring 24-hour load consumption monitoring enabled by GoodWe HK3000**1. Meet the perfect choice of maximum energy yield for residential and small-scale commercial usage.
