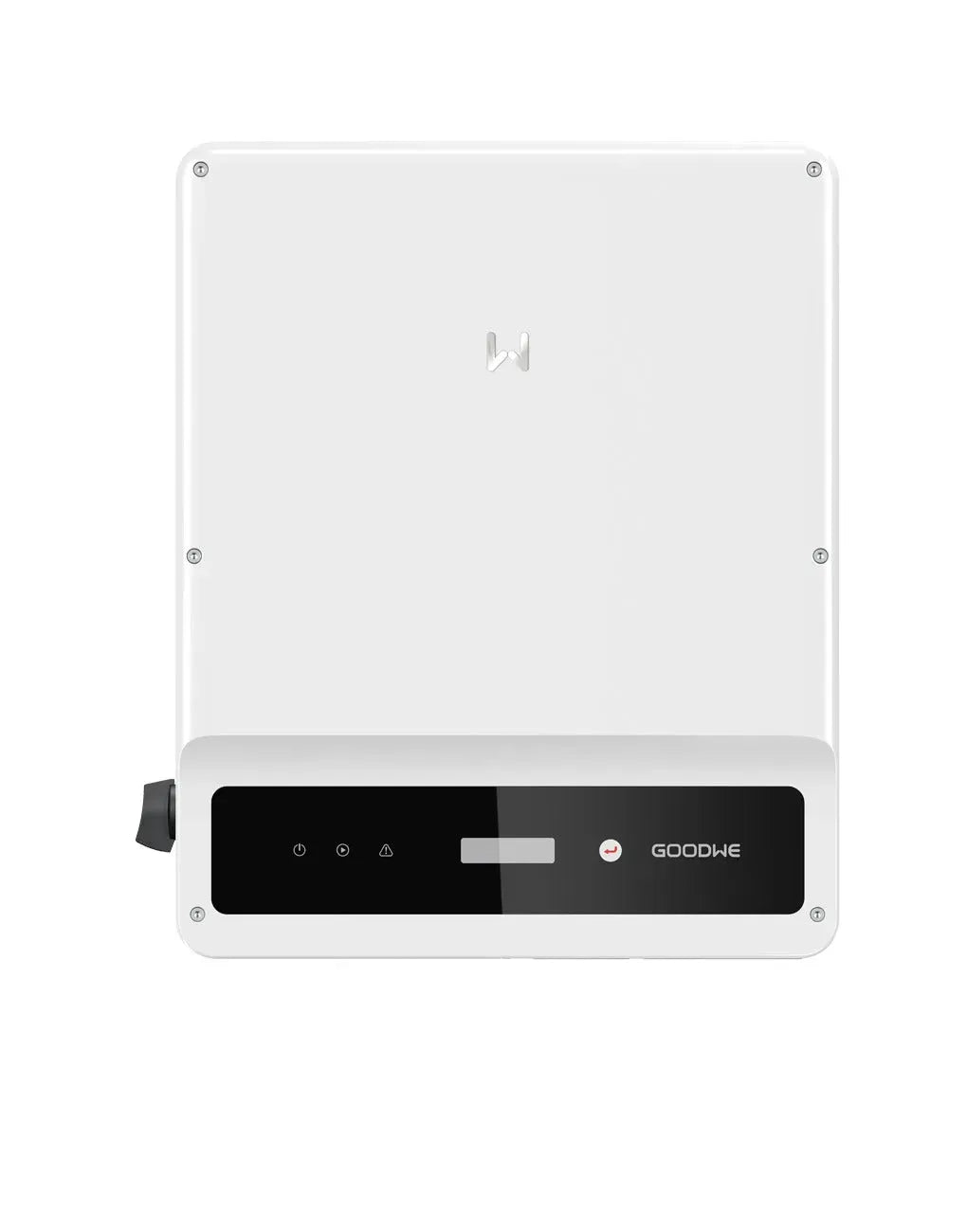

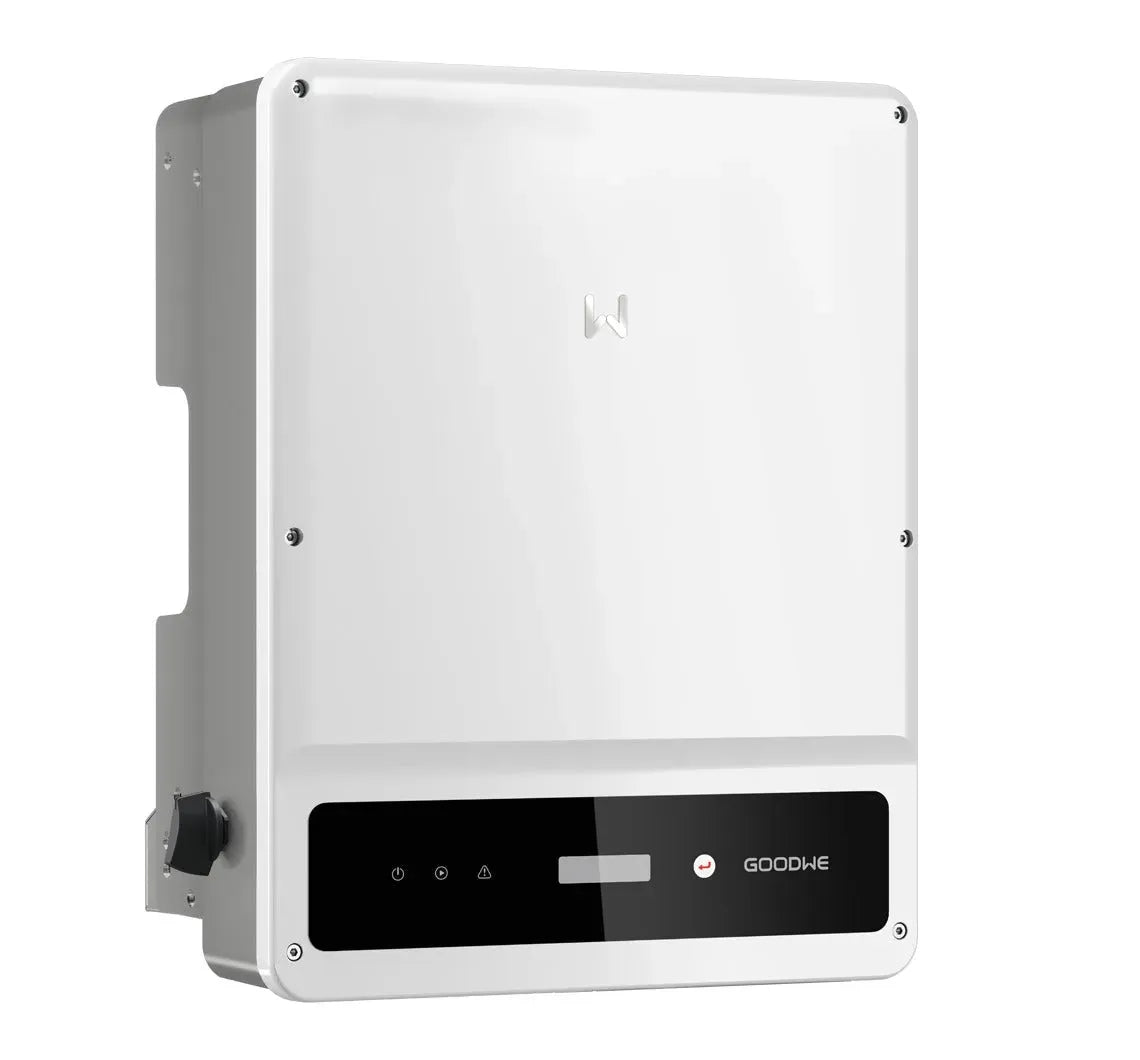

The GoodWe 8kW SDT G2 PLUS+ Series inverter is specially designed for three-phase residential and small commercial projects. The integrated features of high efficiency allow for optimized power generation during the inverter's service cycle. With its lightweight and easy-to-install design, the SDT G2 inverter offers comfort and great convenience for operators and installers. Users can also take all-around smart control of energy management utilizing the featuring 24-hour load consumption monitoring enabled by GoodWe HK3000**1. Meet the perfect choice of maximum energy yield for residential and small-scale commercial usage.
Optimized power generation for maximum energy yield.
Easy to install and handle.
Ideal for residential and small commercial projects.
Real-time load consumption tracking with GoodWe HK3000**.
Product Specifications
Max.input voltage (v)
1000
mppt operating voltage range (v)
180 ~ 850
start-up voltage (v)
180
nominal input voltage (v)
620
max. input current per mppt (a)
16
max. short circuit current per mppt (a)
20.0
number of mpp trackers
2
number of strings per mppt
1
nominal output power (w)
8000
nominal output apparent power (va)
8000
max. ac active power (w)
8800
max. ac apparent power (va)
8800
nominal output voltage (v)
380 / 400 / 415, 3l / n / pe
output voltage range (v)
180 ~ 270
nominal ac grid frequency (hz)
50 / 60
ac grid frequency range (hz)
45 ~ 55
max. output current (a)
12.8
power factor
~1 (adjustable from 0.8 leading to 0.8 lagging)
max. total harmonic distortion
<3%
max. efficiency
98.3%
european efficiency
97.6%
Product Details
The GoodWe 8kW SDT G2 PLUS+ Series inverter is specially designed for three-phase residential and small commercial projects. The integrated features of high efficiency allow for optimized power generation during the inverter's service cycle. With its lightweight and easy-to-install design, the SDT G2 inverter offers comfort and great convenience for operators and installers. Users can also take all-around smart control of energy management utilizing the featuring 24-hour load consumption monitoring enabled by GoodWe HK3000**1. Meet the perfect choice of maximum energy yield for residential and small-scale commercial usage.
