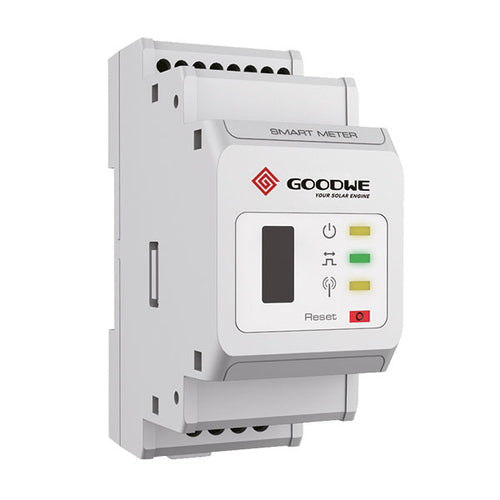

The GoodWe GM3000 Smart Meter is a high-precision three-phase energy monitoring device designed for advanced solar energy management systems. Featuring a compact modular design, easy installation, and precise data collection capabilities, the GM3000 accurately measures voltage, current, active power, reactive power, power factor, frequency, and energy consumption. It seamlessly integrates with GoodWe inverters and the SEMS monitoring platform through RS485 communication, enabling real-time energy monitoring and efficient power management for residential, commercial, and industrial solar installations.
Accurate Voltage, Current, Power & Energy Monitoring
Compatible with GoodWe Inverters and SEMS Platform
Compact Modular Design
Easy DIN-Rail Installation
Real-Time Energy Management and Monitoring
Measures Active & Reactive Energy
RS485 Communication Interface
Low Power Consumption (<3W)
External CT Input Support (120A/40mA)
LED Status Indicators for System Monitoring
Wide Operating Temperature Range
Reliable Indoor Protection (IP20)
Fast and Stable Data Collection
Suitable for Commercial and Industrial Solar Applications
Product Specifications
Type
smart meter
application
three-phase grid system
nominal voltage
3l+n / 400vac
voltage range
0.7 – 1.2 un
frequency
50hz / 60hz
current input
external opening and closing ct (120a / 40ma)
self-consumption
<3w
data detection
voltage, current, active power, reactive power, power factor, frequency
energy calculation
active / reactive power energy
voltage & current accuracy
class 1
active power accuracy
class 1
reactive power accuracy
class 2
communication
rs485
interface
3 led indicators (power, energy consumption, communication), usb port, reset button
dimensions (l × w × h)
36 × 85 × 66.5 mm
weight
±420 g
protection class
ip20 (indoor use)
installation method
din rail / mounting rack
operating temperature
-20°c to +60°c
operating humidity
<95% (non-condensing)
maximum installation altitude
<2000 m
Product Details
The GoodWe GM3000 Smart Meter is a high-precision three-phase energy monitoring device designed for advanced solar energy management systems. Featuring a compact modular design, easy installation, and precise data collection capabilities, the GM3000 accurately measures voltage, current, active power, reactive power, power factor, frequency, and energy consumption. It seamlessly integrates with GoodWe inverters and the SEMS monitoring platform through RS485 communication, enabling real-time energy monitoring and efficient power management for residential, commercial, and industrial solar installations.
