Goodwe 15kw Solar Inverter Price in Pakistan is Rs. Inquiry/-.

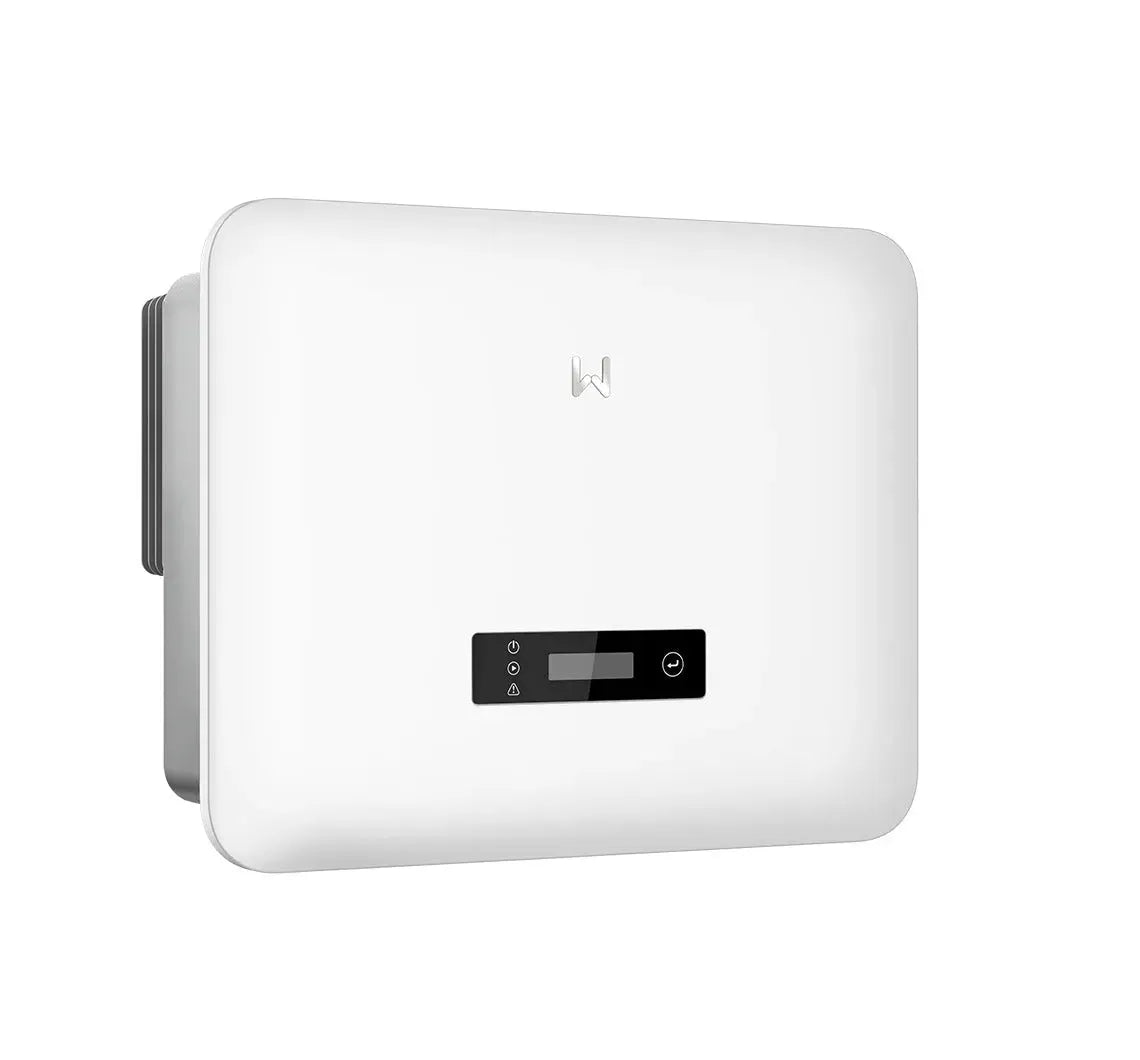

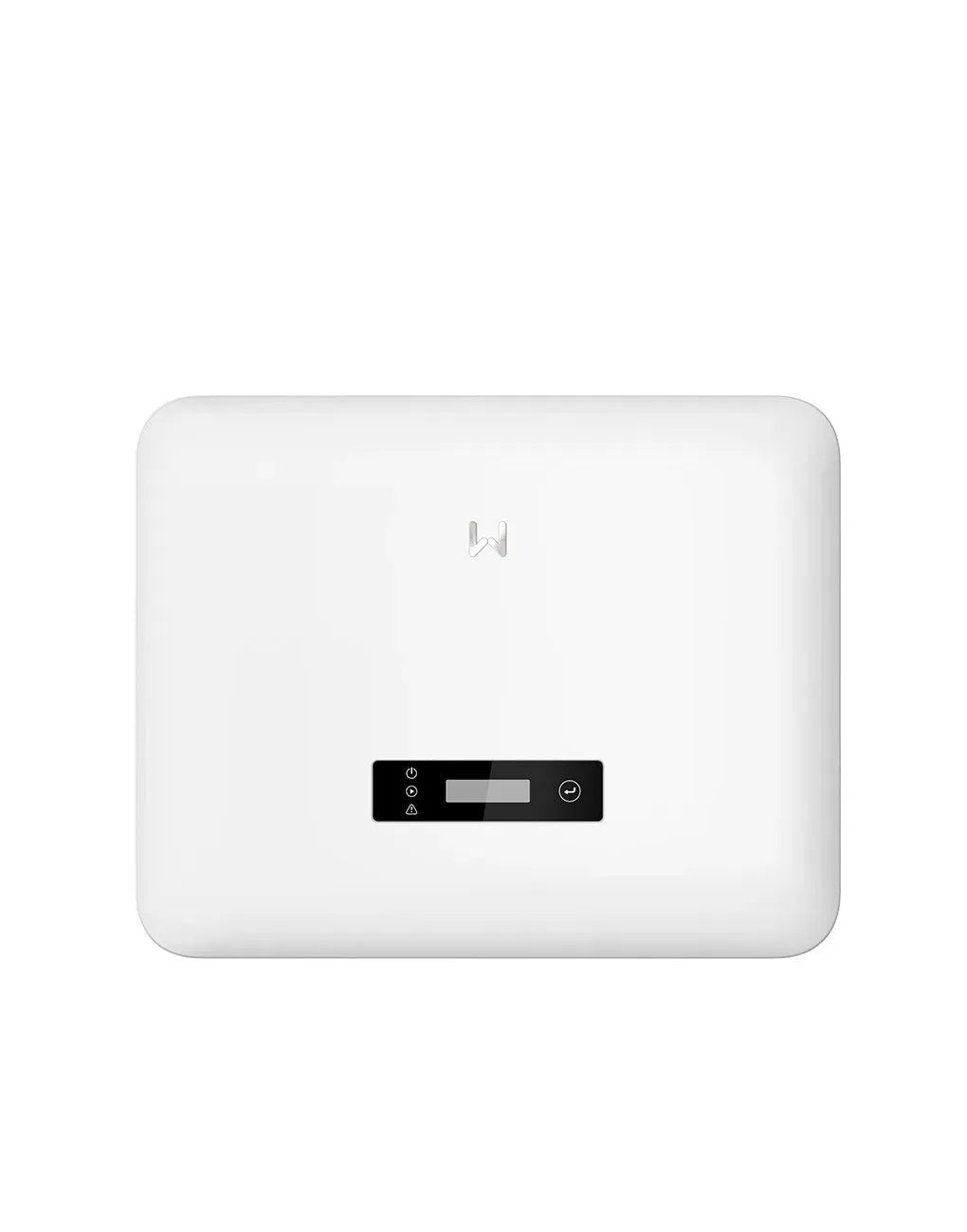

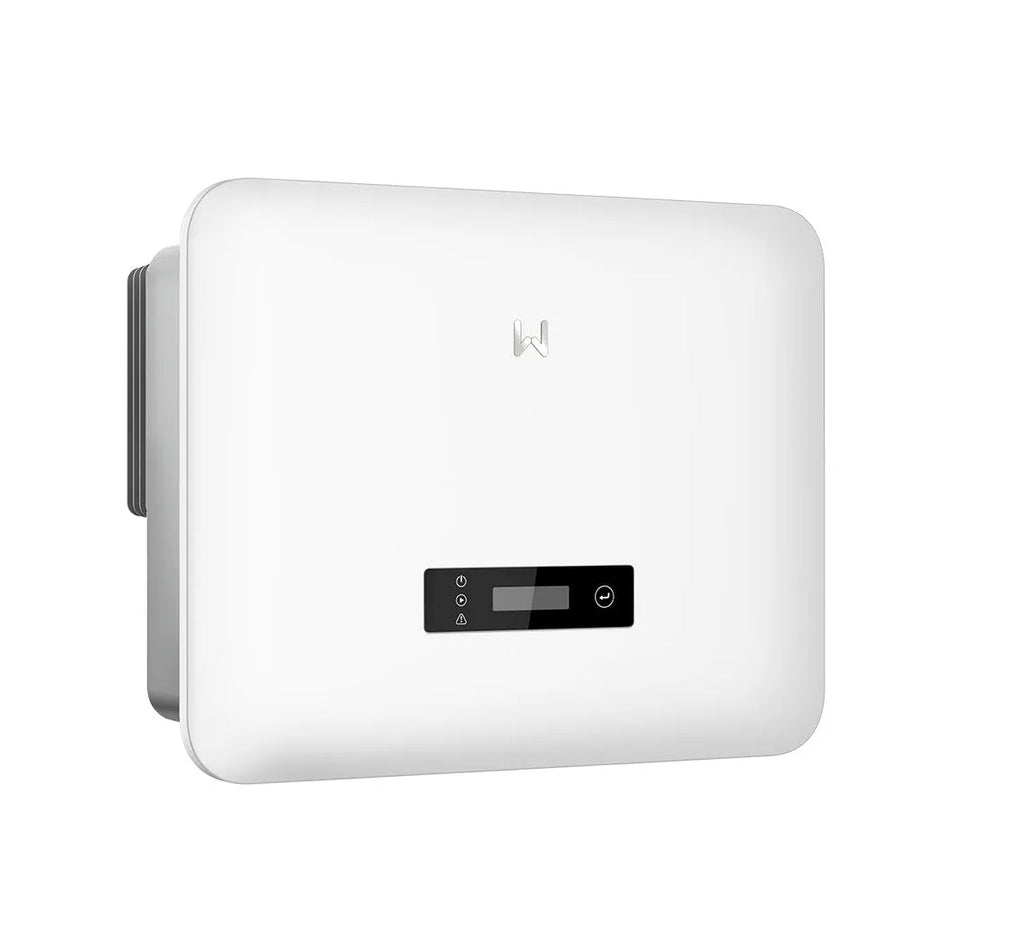

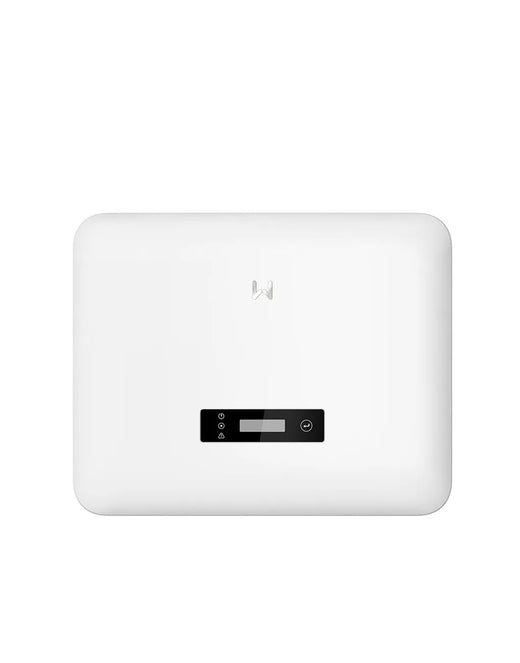

The GoodWe SDT G3 Series, with a power range of 10kW, is specifically engineered to cater to the energy needs of three-phase residential and small commercial projects. The inverter boasts an impressive 150% DC oversizing and 110% AC overloading capabilities, allowing for maximum performance and output even in challenging environments. In addition, the SDT G3 Series inverter's lightweight and easy-to-install design offers exceptional convenience for operators and installers alike.
Designed for three-phase residential and small commercial projects.
Supports 150% DC oversizing for enhanced energy production.
110% AC overloading for increased performance in demanding conditions.
Lightweight and easy-to-install design for operator convenience.
Product Specifications
Max. input voltage (v)
1100
mppt operating voltage range (v)
140 ~ 1000
start-up voltage (v)
160
nominal input voltage (v)
600
max. input current per mppt (a)
22
max. short circuit current per mppt (a)
27.5
number of mpp trackers
2
number of strings per mppt
1
nominal output power (w)
10000
nominal output apparent power (va)
10000
max. ac active power (w)*1
11000
max. ac apparent power (va)
11000
nominal output voltage (v) 220 / 380, 230 / 400, 240 / 415, 3l / n / pe or 3l / pe
output voltage range (v)
180 ~ 280
(according to local standard)
nominal ac grid frequency (hz)
50 / 60
ac grid frequency range (hz)
45 ~ 55 / 55 ~ 65
max. output current (a)*2
16.7
power factor
~1 (adjustable from 0.8 leading to 0.8 lagging)
max. total harmonic distortion
<3%
max. efficiency
98.5%
european efficiency
98.0%
Product Details
Goodwe 15kw Solar Inverter Price in Pakistan is Rs. Inquiry/-.
The GoodWe SDT G3 Series, with a power range of 10kW, is specifically engineered to cater to the energy needs of three-phase residential and small commercial projects. The inverter boasts an impressive 150% DC oversizing and 110% AC overloading capabilities, allowing for maximum performance and output even in challenging environments. In addition, the SDT G3 Series inverter's lightweight and easy-to-install design offers exceptional convenience for operators and installers alike.
